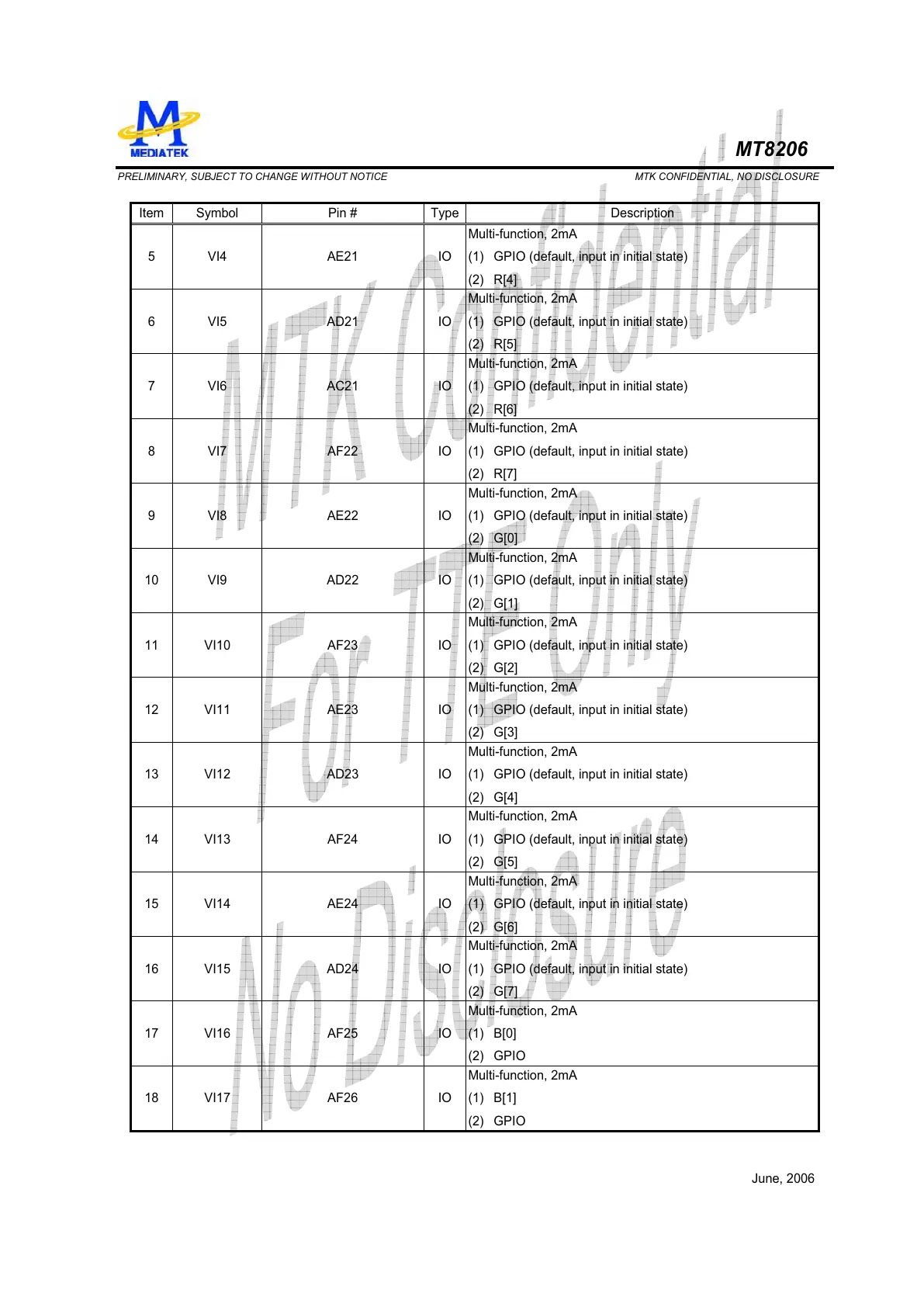

MT8206
PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE
June, 2006
Item Symbol Pin # Type Description
5 VI4 AE21 IO
Multi-function, 2mA
(1) GPIO (default, input in initial state)
(2) R[4]
6 VI5 AD21 IO
Multi-function, 2mA
(1) GPIO (default, input in initial state)
(2) R[5]
7 VI6 AC21 IO
Multi-function, 2mA
(1) GPIO (default, input in initial state)
(2) R[6]
8 VI7 AF22 IO
Multi-function, 2mA
(1) GPIO (default, input in initial state)
(2) R[7]
9 VI8 AE22 IO
Multi-function, 2mA
(1) GPIO (default, input in initial state)
(2) G[0]
10 VI9 AD22 IO
Multi-function, 2mA
(1) GPIO (default, input in initial state)
(2) G[1]
11 VI10 AF23 IO
Multi-function, 2mA
(1) GPIO (default, input in initial state)
(2) G[2]
12 VI11 AE23 IO
Multi-function, 2mA
(1) GPIO (default, input in initial state)
(2) G[3]
13 VI12 AD23 IO
Multi-function, 2mA
(1) GPIO (default, input in initial state)
(2) G[4]
14 VI13 AF24 IO
Multi-function, 2mA
(1) GPIO (default, input in initial state)
(2) G[5]
15 VI14 AE24 IO
Multi-function, 2mA
(1) GPIO (default, input in initial state)
(2) G[6]
16 VI15 AD24 IO
Multi-function, 2mA
(1) GPIO (default, input in initial state)
(2) G[7]
17 VI16 AF25 IO
Multi-function, 2mA
(1) B[0]
(2) GPIO
18 VI17 AF26 IO
Multi-function, 2mA
(1) B[1]
(2) GPIO
