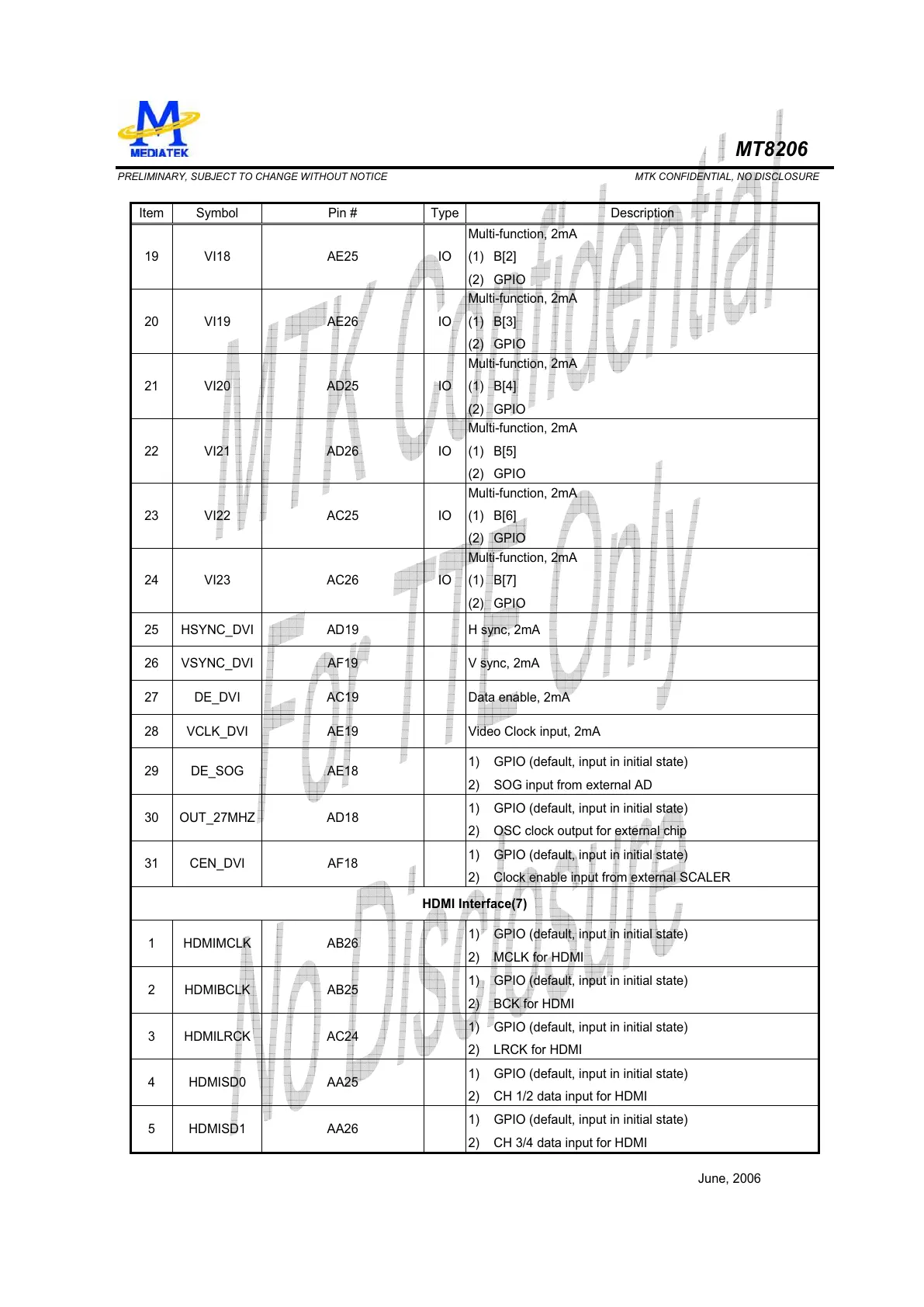

MT8206
PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE
June, 2006
Item Symbol Pin # Type Description
19 VI18 AE25 IO
Multi-function, 2mA
(1) B[2]
(2) GPIO
20 VI19 AE26 IO
Multi-function, 2mA
(1) B[3]
(2) GPIO
21 VI20 AD25 IO
Multi-function, 2mA
(1) B[4]
(2) GPIO
22 VI21 AD26 IO
Multi-function, 2mA
(1) B[5]
(2) GPIO
23 VI22 AC25 IO
Multi-function, 2mA
(1) B[6]
(2) GPIO
24 VI23 AC26 IO
Multi-function, 2mA
(1) B[7]
(2) GPIO
25 HSYNC_DVI AD19 H sync, 2mA
26 VSYNC_DVI AF19 V sync, 2mA
27 DE_DVI AC19 Data enable, 2mA
28 VCLK_DVI AE19 Video Clock input, 2mA
29 DE_SOG AE18
1) GPIO (default, input in initial state)
2) SOG input from external AD
30 OUT_27MHZ AD18
1) GPIO (default, input in initial state)
2) OSC clock output for external chip
31 CEN_DVI AF18
1) GPIO (default, input in initial state)
2) Clock enable input from external SCALER
HDMI Interface(7)
1 HDMIMCLK AB26
1) GPIO (default, input in initial state)
2) MCLK for HDMI
2 HDMIBCLK AB25
1) GPIO (default, input in initial state)
2) BCK for HDMI
3 HDMILRCK AC24
1) GPIO (default, input in initial state)
2) LRCK for HDMI
4 HDMISD0 AA25
1) GPIO (default, input in initial state)
2) CH 1/2 data input for HDMI
5 HDMISD1 AA26
1) GPIO (default, input in initial state)
2) CH 3/4 data input for HDMI
