MT8206
PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE
June, 2006
SB33A
ASB18A
1.8V
3.3V
Unstable
5 clocks
stable
Cr
y
stal clock
Reset
Low
Hi
g
h

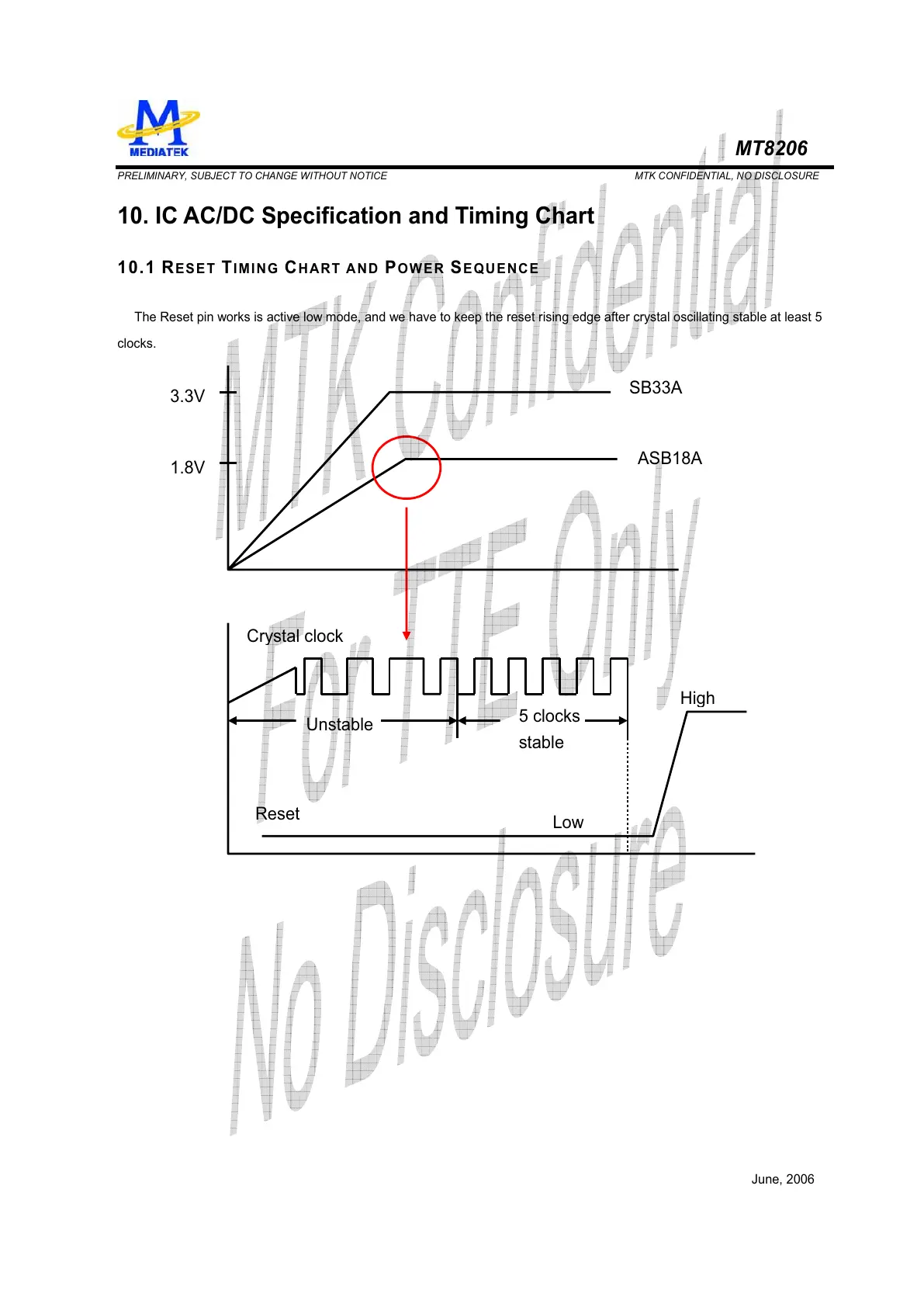

10. IC AC/DC Specification and Timing Chart
10.1 RESET TIMING CHART AND POWER SEQUENCE
The Reset pin works is active low mode, and we have to keep the reset rising edge after crystal oscillating stable at least 5
clocks.
