THOMSON DPL950VD - Page 10

17
Headphone board
TO AMPLI (N804)
TO MPEG (CON12)
Motor board
TO MOTOR
Front board (R)
Front board (L)
Front board
TO MPEG (CON10)
TO MPEG (CON7)
TO MPEG (CON2)

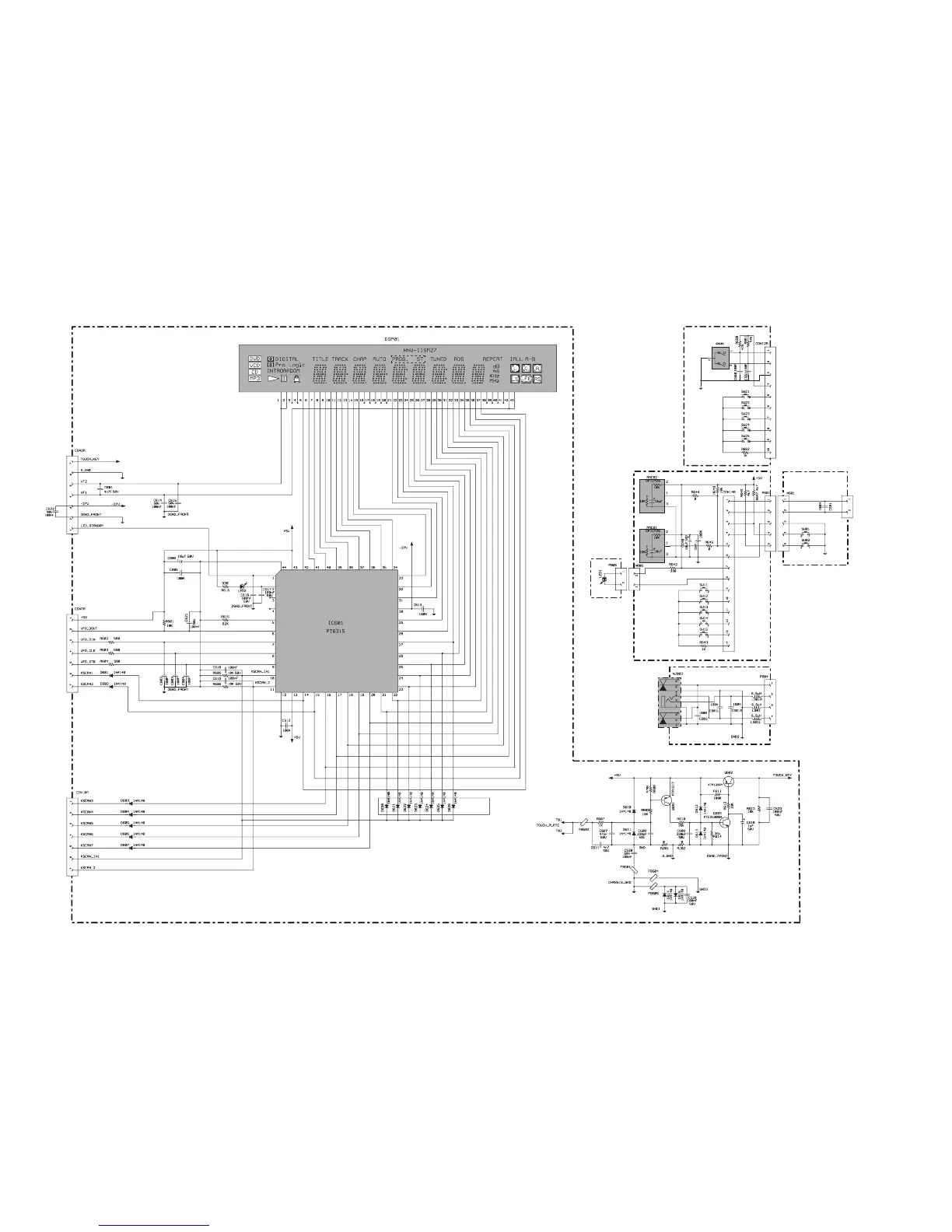

CONTROL / DISPLAY SCHEMATIC DIAGRAM - SCHEMA COMMANDES / AFFICHEUR - BEDIENTEIL / ANZEIGE SCHALTBILD - SCHEMA COMANDI / INDICATORE - ESQUEMA
MANDOS / INDICADOR
ASMP1002
18 First issue 01 / 04
