THOMSON VS 650 - Connection Information

To Next Page

To Previous Page

VS 650-650U-650E/EN/IC-RST/02-02

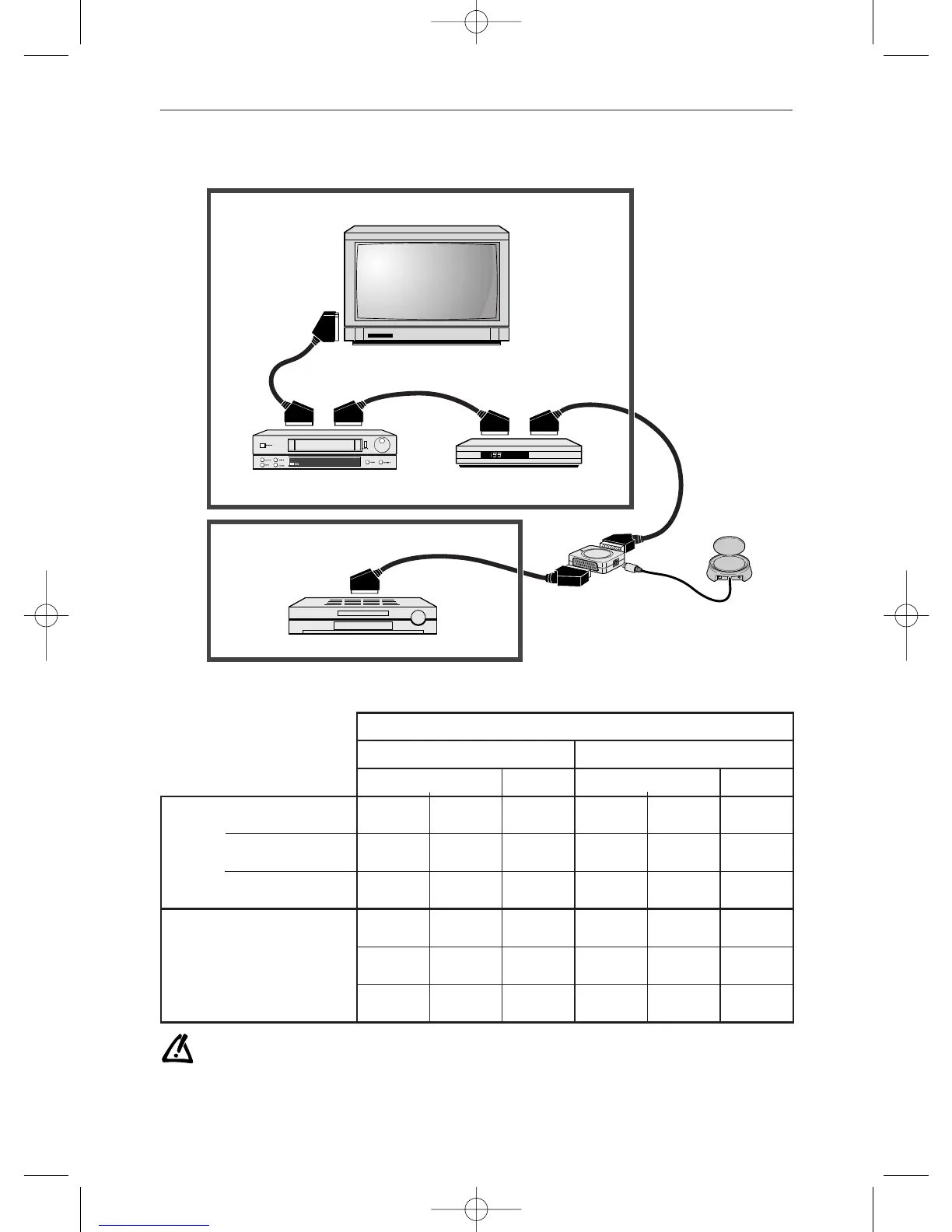

General information on connections...

GROUP 1

GROUP 2

TV1

DVD

VCR

AUX

Satellite/Cable Receiver/Decoder

(Canal+, Canal Sat,TPS, Premiere,Telepiu,Via Digital…)

Transmitter

Extension

box

Pictures you will be able to see on

TV1 TV2

VCR or SAT DVD VCR or SAT DVD

Recording

through a video recorder

of the unit marked with an X

Unit on

Video Recorder

Satellite Decoder

Satellite Demodulator

DVD Player

✗ ✗ ✗ ✗

✗ ✗ ✗

✗ ✗

✗

✗✗✗

✗

✗ ✗

✗

Only one device per group is available for the transmission and/or viewing of the pictures on TV1 or TV2.

To view/record the pictures transmitted by a DVD player, the other connected devices must support and

retransmit RGB signals on their SCART sockets.
