THOMSON VS 650 - Principles of Operation

2

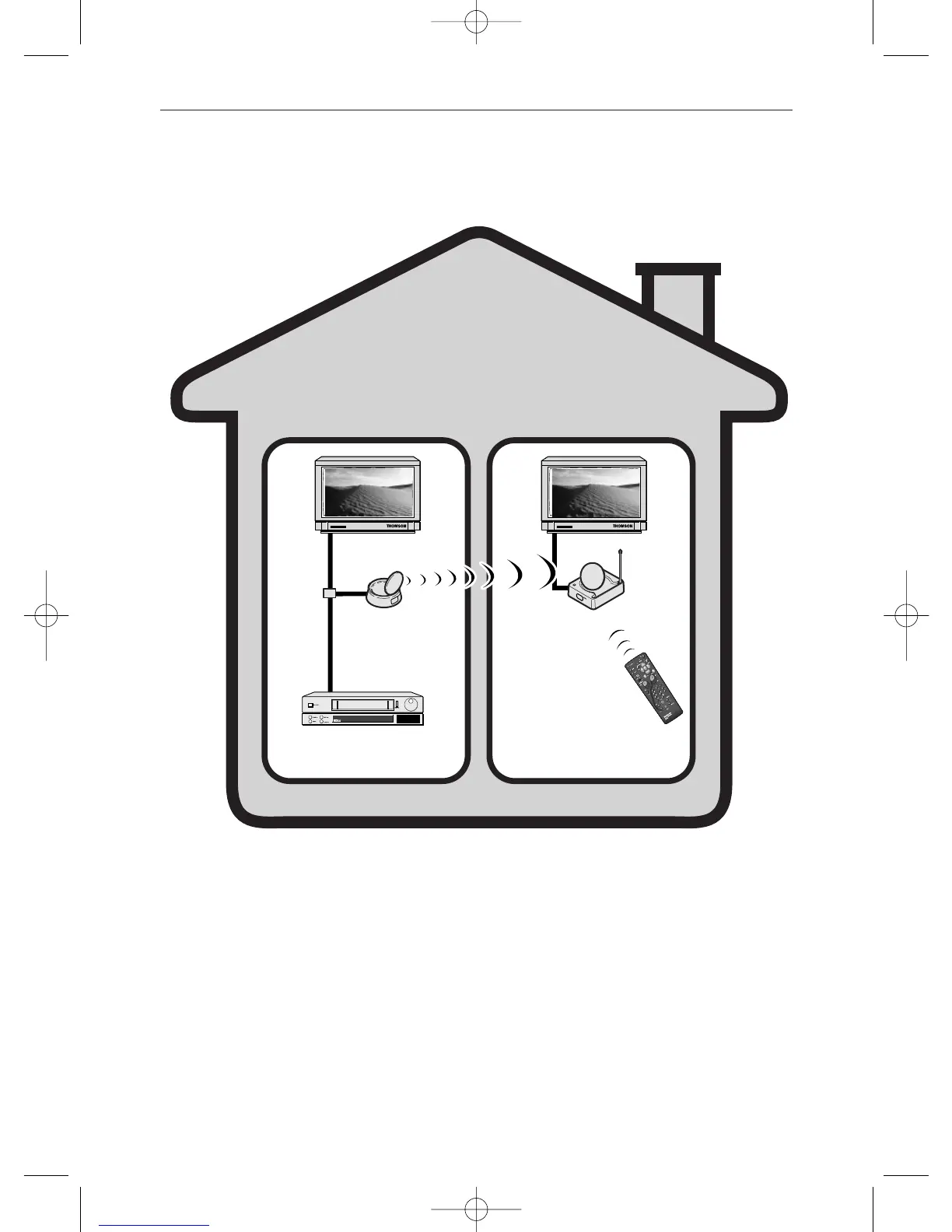

LIVING ROOM BEDROOM
Transmitter
Video recorder,
satellite receiver,...
Receiver
Remote control
for video recorder,
satellite receiver,…or
universal remote control.
Principles of operation
Technical characteristics
Power supply: 12V DC
VS 650 : 4 channels (A : 2.411 GHz - B : 2.434 GHz - C : 2.454 GHz - D : 2.473 GHz)
VS 650 U : 4 channels (A : 2.411 GHz - B : 2.434 GHz - C : 2.454 GHz - D : 2.473 GHz)
VS 650 E : 3 channels (A : 2.421 GHz - B : 2.449 GHz - C : 2.477 GHz)
Remote control return: 433,92 MHz
Transmitter power: 10 mW
