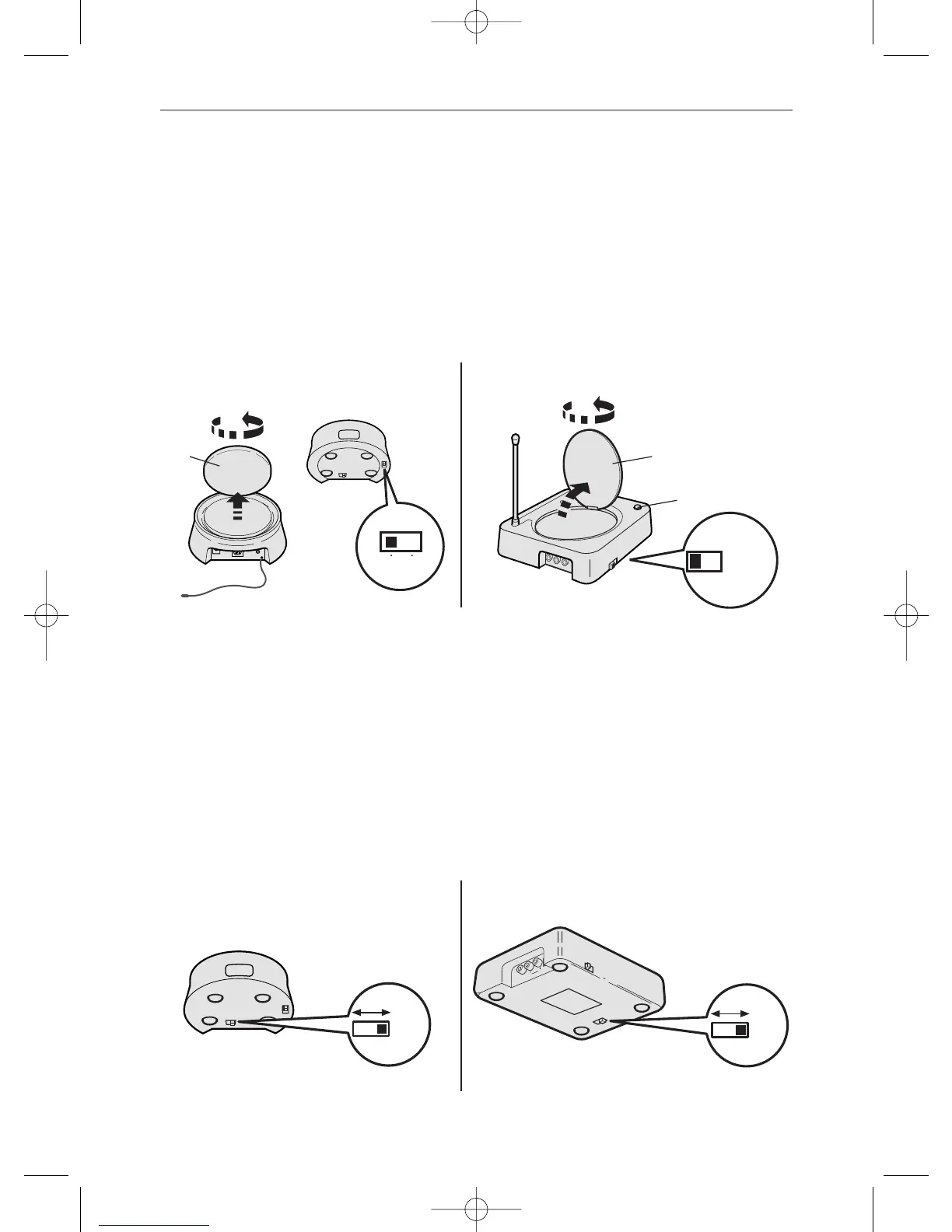

You will obtain optimal service operation of your Video Sender by correctly
orienting the antennae (A). However, reflected signals or other signal degrading
factors can affect good quality signal transmission. In this case, readjust antennae
positions or slightly move the transmitter or receiver until you get crystal clear
reception.
DC 12V
ON OFF
VIDEO IN
IR EXTEND
ONOFF
off
on
If no picture is obtained,
check that the transmitter and the receiver have not been installed in the reverse
order (each unit corresponds either to the input or to the output of the Audio-Video
signal). Check that they have been properly connected and that they are switched on
(ON position). Ensure that the channel selector is set to the same letter on both units.
If transmission is blurred or scrambled,
choose another channel but make sure that it is identical on both units.
....
