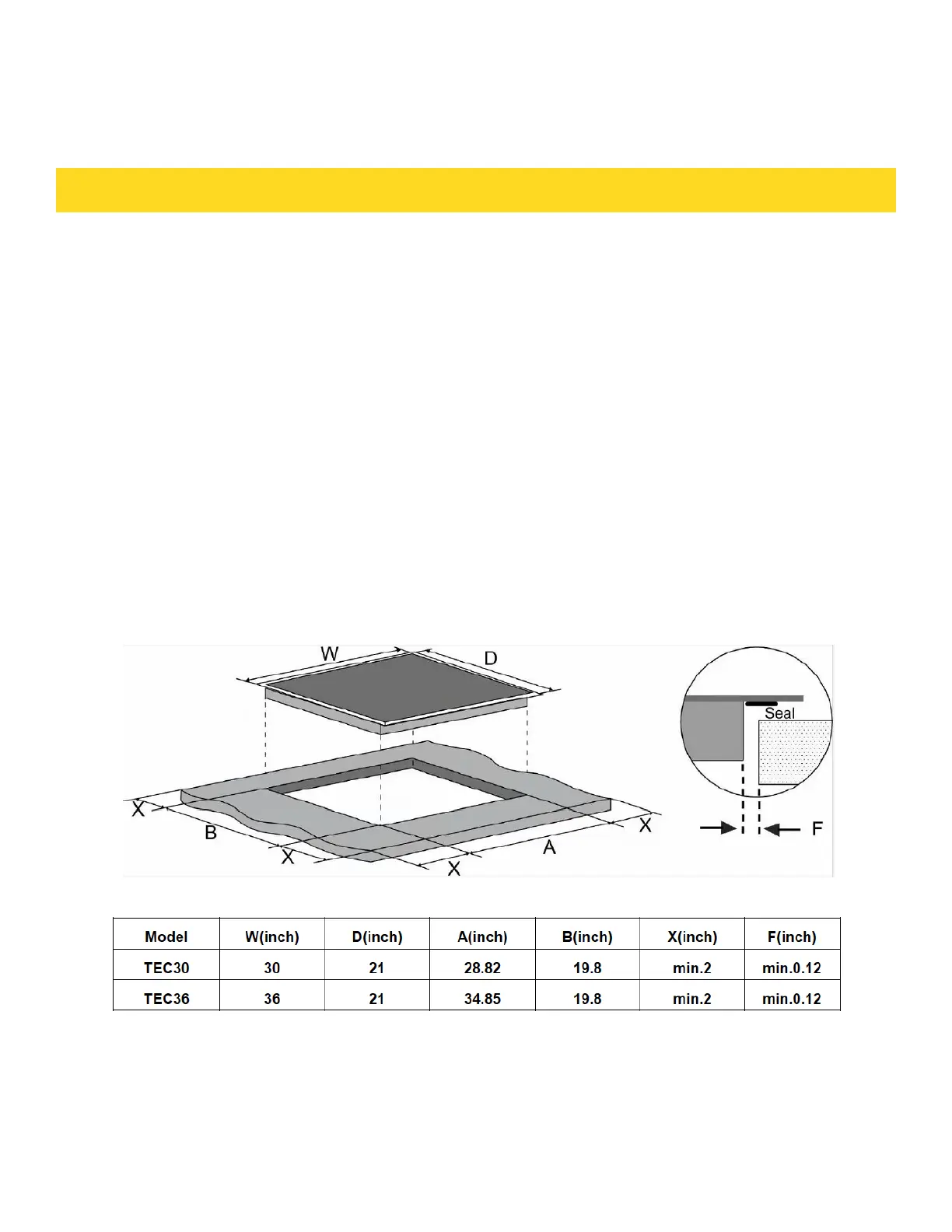

Cut out the work surface according to the sizes shown in the following drawing.
• Note: Before carving, check that the dimensions indicated correspond to the
dimensions of the product.
• Be sure the thickness of the work surface is at least 1.18inch.Choose a heat-resistant
work surface material.
• The safety distance between the sides of the cooktop and the inner surfaces of the
worktop must be at least 0.12inch.
• For the purposes of installation and use, at least 0.2inch space must be kept around
the cut-out.
INSTRUCTIONS FOR BUILTIN
4
