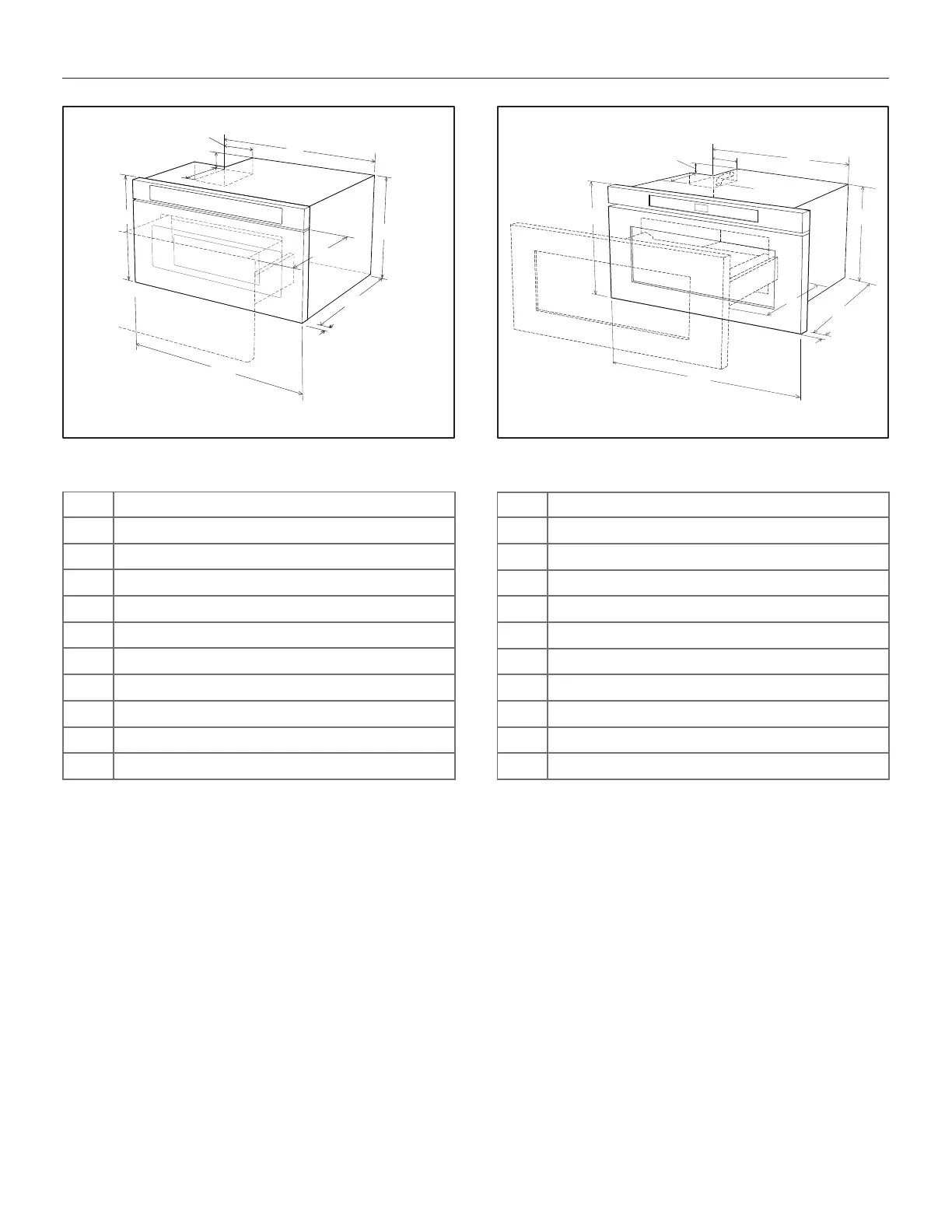

24" AND 30" DRAWER MICROWAVE DIMENSIONS
KEY DESCRIPTION
A 21-5/8" (549.28 mm) unit width
B 4-11/16" (119.06 mm) cord recess width
C 1-3/4" (44.45 mm) cord recess height
D 21-7/8" (555.60 mm) unit depth without door
E 23-7/8" (606.43 mm) width of door face
F 15-7/8" (403.22 mm) height of door face
G 14-19/32" (370.69 mm) height of body
H 1-9/64" (29 mm) door thickness
I 15" (381 mm) auto drawer opening
J 4" (101.6 mm) cord recess depth
24" Drawer Microwave Dimensions
A
B
C
D
E
F
G
H
I
J
F
E
A
I
C
J
B
G
D
H
KEY DESCRIPTION
A 21-5/8" (549.28 mm) unit width
B 4-11/16" (119.06 mm) cord recess width
C 1-3/4" (44.45 mm) cord recess height
D 21-7/8" (555.60 mm) unit depth without door
E 30" (762 mm) width of door face
F 15-7/8" (403.22 mm) height of door face
G 14-19/32" (370.69 mm) height of body
H 1-9/64" (29 mm) door thickness
I 15" (381 mm) auto drawer opening
J 4" (101.6 mm) cord recess depth
30" Drawer Microwave Dimensions
