Thule 301857 - Page 14

14 ADS904-01
+
+
+
Switch S1
Step S2
Battery 12V DC
(main)
12V
M
Key S3
Dashboard
brown
grey
red
black
F
20A
L
OFF
START
IN
OUT
-
-
ACC
ON
50
30
15
OFF
ACC
ON
START
BLACK/SCHWARZ/
ZWART/NOIR/NERO/
NEGRO/SVART/
MUSTA/SORT/SVART/
CZARNY
GREY/GRAU/GRIJS/
GRISE/GRIGIO/GRIS/
GRÅ/HARMAA/GRÅ/
GRÅ/SZARY
BROWN/BRAUN/
BRUIN/MARRON/
MARRONE/MARÓN/
BRUN/RUSKEA/BRUN/
BRUN/BRĄZOWY
RED/ROT/ROOD/
ROUGE/ROSSO/ROJA/
RÖD/PUNAINEN/RØD/
RØD/CZERWONY

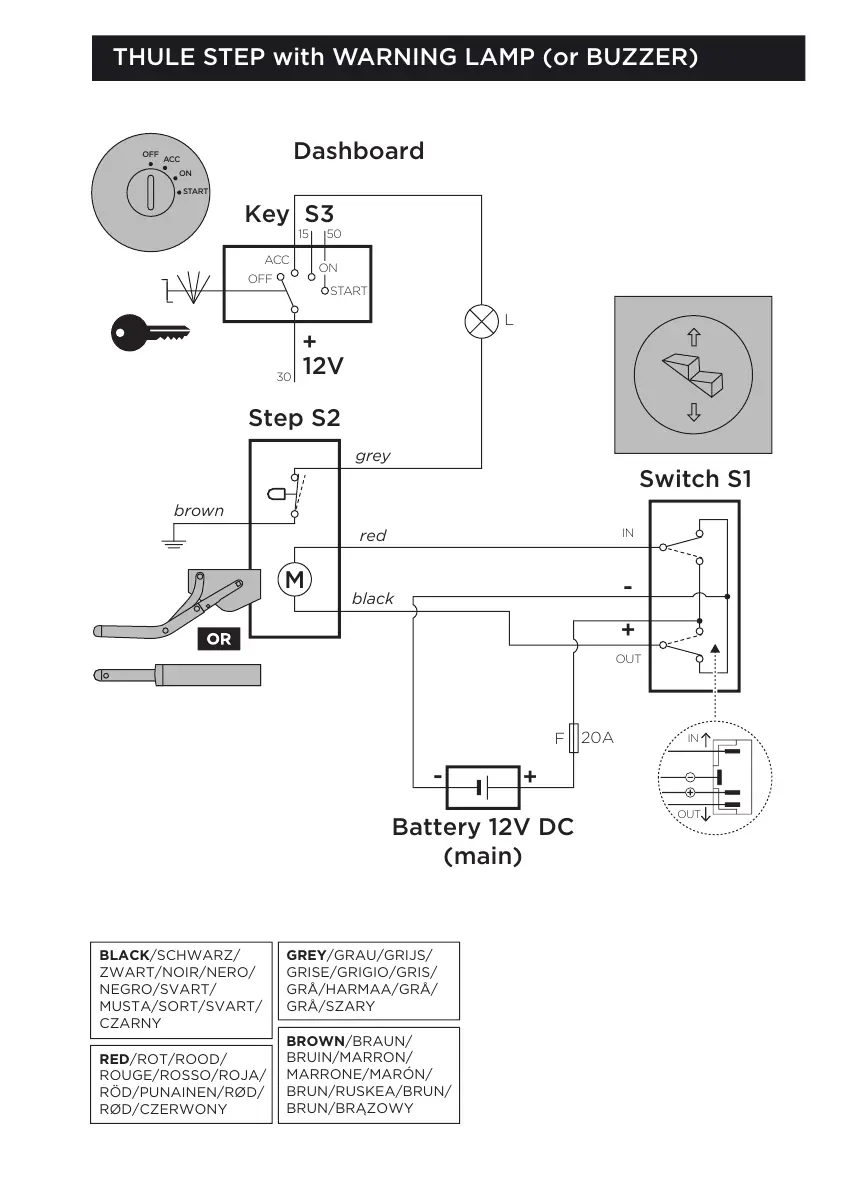

THULE STEP with WARNING LAMP (or BUZZER)
IN
OUT
