1.3 instaLLinG the JoGGinG WheeL 1.4 removinG the JoGGinG kit
A. Open the quick-release lever.
B. Pull the jogging wheel out of the wheel dropouts.
C. Press and hold the small button on one of the
jogging arms.
D. Pull the jogging arm out of the VersaWing™.
E. Repeat with the other jogging arm.
2
1

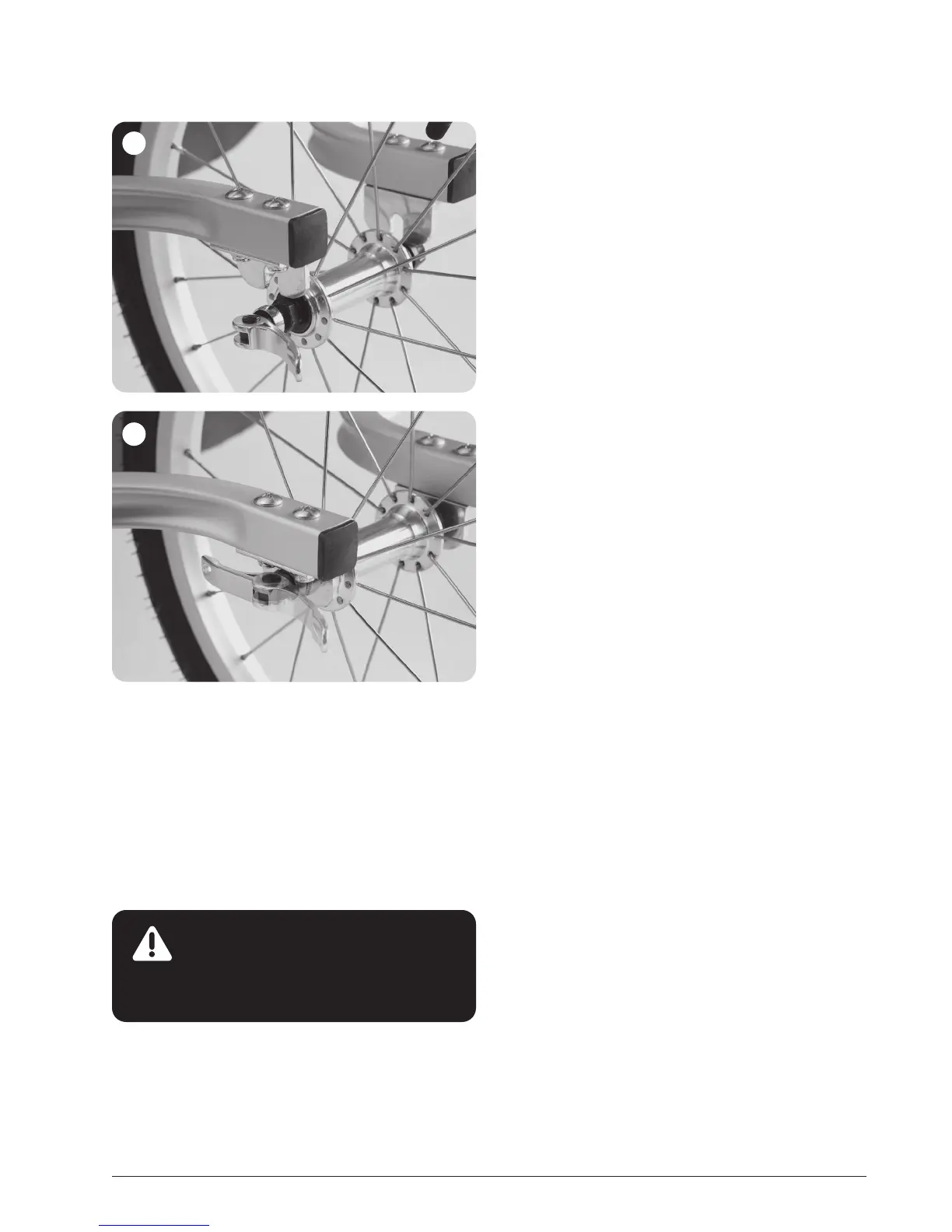

A. Guide the jogging wheel up into the wheel dropouts
until the wheel axle is resting inside the wheel dropouts.
(See image 1)
B. Close the quick-release lever. (See image 2)
C. Tighten the quick-release knob until nger tight.
D. Open the quick-release lever.
E. Tighten the quick-release knob another half turn.
F. Close the quick-release lever. (See image 2)
G. Verify that the jogging wheel is securely attached to
the jogging arms by giving it a sharp pull downward.
WARNING
Always make sure that the skewer is correctly
installed. An incorrectly tensioned quick-release
skewer may lead to loss of the front wheel.
