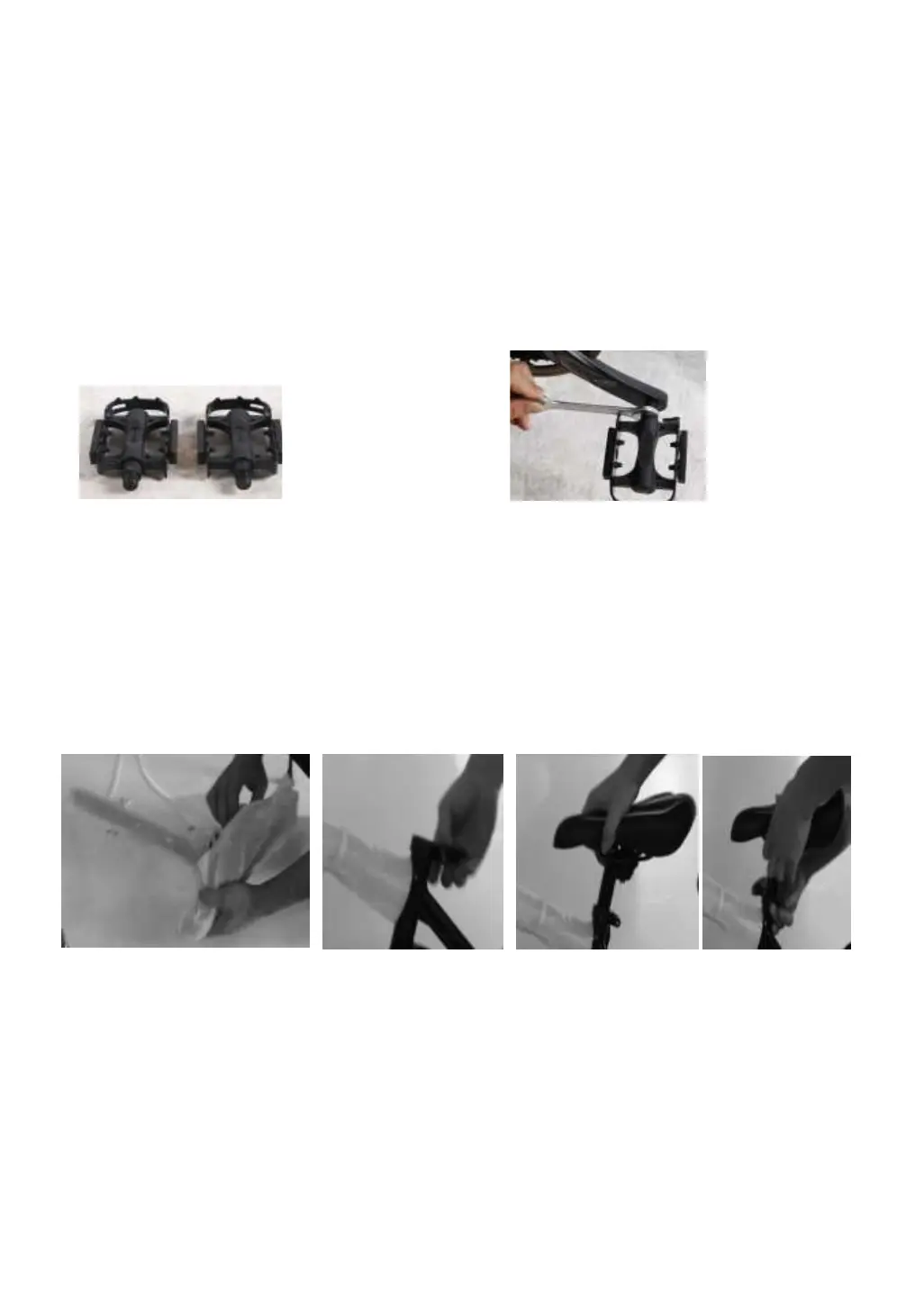

5. Install pedals: Check 2 pedals, the one imprinted "L" should be install in left side
and "R" in the right side. Please use the wrench as displayed to tighten them.
6. Install the Seat post.
6.1. Open the seat post and saddle,
6.2 Install the rear light.
6.3 Put the seat post into the frame.
6.4 Adjust seat post to the height that suits your riding position best and tighten quick
release. (Please make sure that the quick release is tightened firmly).
(6.1) (6.2) (6.3) (6.3)
7. Adjust angle of brake lever, meter, gear shifter, throttle and louder controller on
handlebar, then tighten them with tools.
8. Fold the bike
8.1 Fold the frame, turn the locker, and then open quick release.
(8.1)
