TX, 100, 200 SERIES INSTALLATION
TX, 100, 200 SERIES
(623) 398-6540
tbirdind.com
TOOLS NEEDED
9/16” wrench and/or socket 3/4”
wrench and/or socket Drill
(cordless recommended)
3/8” Drill bit
Level

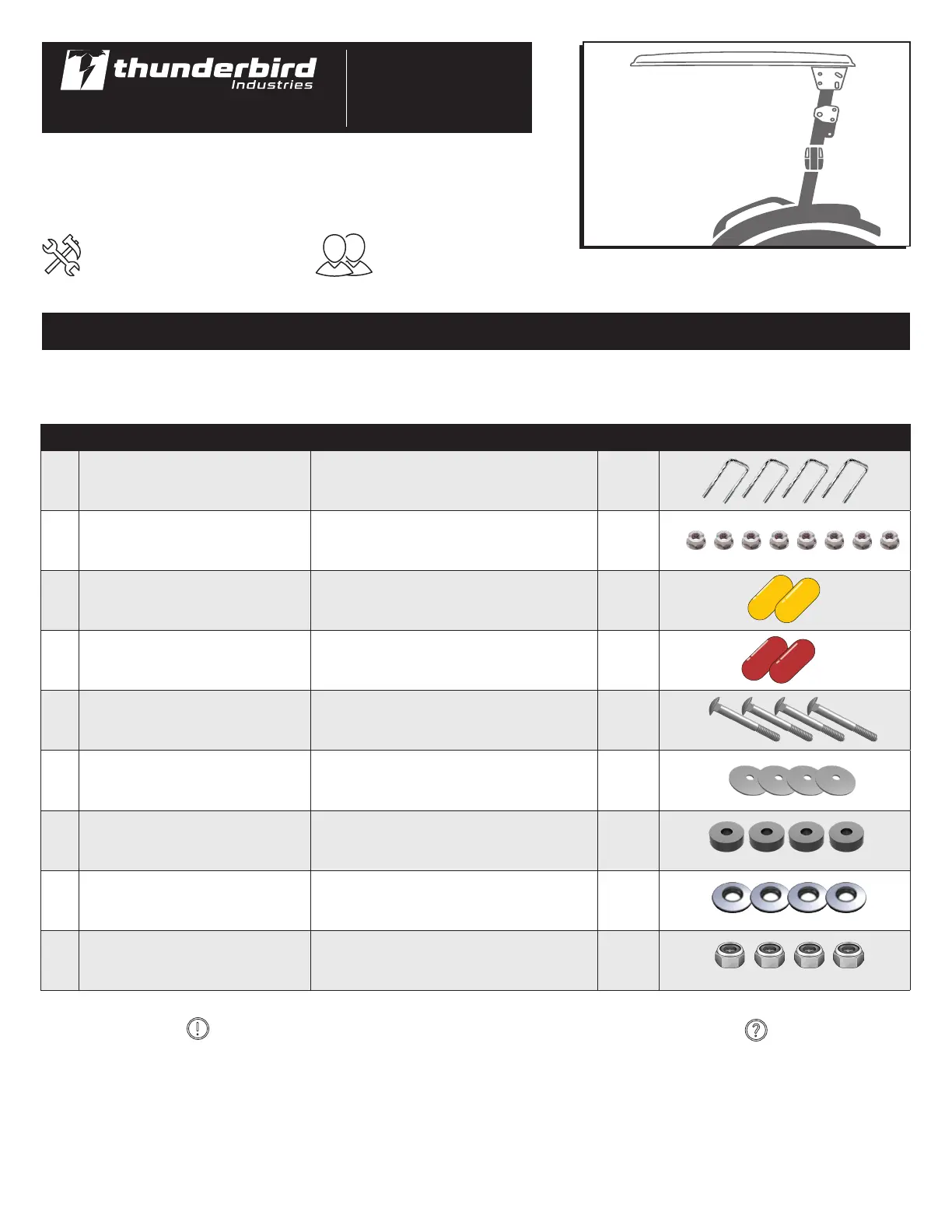

PARTS LIST
Two Person Assembly
Recommended
Parts Item No. Description Qty
A UB22, UB32, UB42 or UB42 U-Bolts (Sizes vary 32 = 3” x 2”, etc..) 4
B FN1312 ½ - 13 Flange Nuts 8
C RFAMB Reector - Amber 2 W
D RFRED Reector - Red 2
E CB238 ⅜” x 2 Carriage Bolt 4
F FW1109 #109 x 1” Fender Washer 4
G ISO Rubber Isolation Pad 4
H NW10
Rubber Backed Washer
(#10 Neoprene Washer)
4
I NLN1638 ⅜” - 16 Nylon Insert Lock Nuts 4
IMPORTANT
• Be sure to read through the entire manual carefully
before beginning installation.
• Read all warnings and precautions carefully and
follow safety procedures
HOW TO GET HELP
• Call us at 623-398-6540 between 8:00am and
4:00pm
• Email us at mail@tbirdind.com
• Contact your local dealer where you purchased this
product.
INCLUDES
• Fiberglass Canopy
• Mounting Kit: (2) Mounting Brackets + (1) Hardware Box
