3. Commands and signals

All of the Platform Lift’s commands and signals are located inside the cabin, on the pushbutton

panel.

A list of the Platform Lift's commands and signals along with their names and functions, in

reference to the figures shown, is provided below.

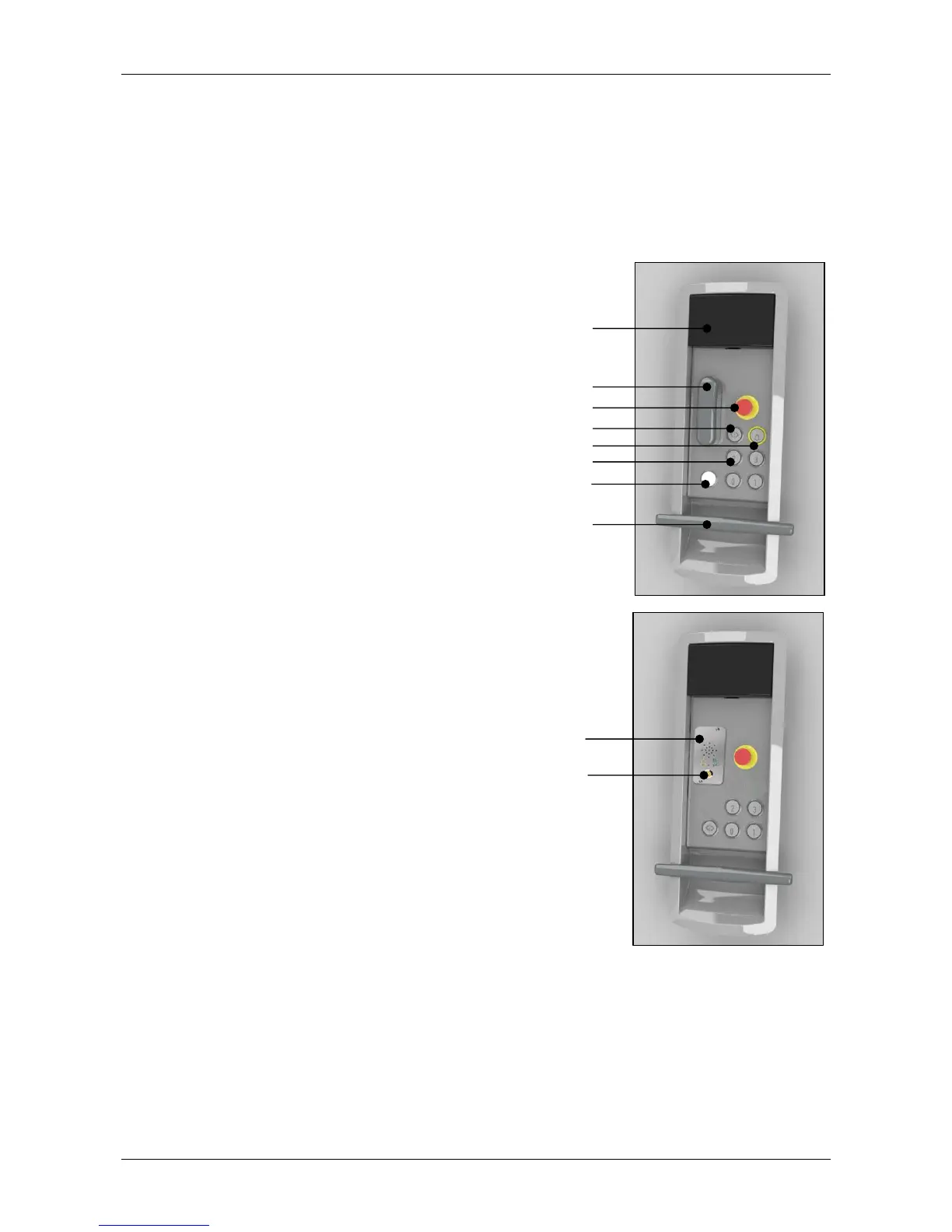

3.1. Push Button Panel with Phone

1. Emergency light (if present)

2. Telephone

3. Emergency Button

4. Command Button

5. Cabin Door Re-Open Button

6. Handle

7. Display

8. General Alarm Button with siren

3.2. Push-button panel autodialer

system (optional)

1. Telephone Auto-dial

2. Telephone Auto-dial activation button: press this

button and the emergency call will be forwarded.

3.3. Floor Call Station

 Floor button

 Illuminated call button/switch:

 Green light (machine at floor with door unlocked);

 Steady Red Light (machine in movement or at least

one door open).

 Flashing Red Light (in the following cases:

i. Machine stopped due to mechanical problems or

internal emergency stop button pressed.

ii. Locks not locked and call command available

iii. Platform overloaded

iv. Motor overload

v. Batteries dead with platform at the floor
