Tibor Everglades - Tibor Fly Reels Parts Identification; Parts Diagram and List

255 North Congress Avenue
•
Delray Beach, FL 33445
•
Phone: 561-272-0770
•
Fax: 561-272-0047
•
tiborreel.com
Tibor Fly Reels

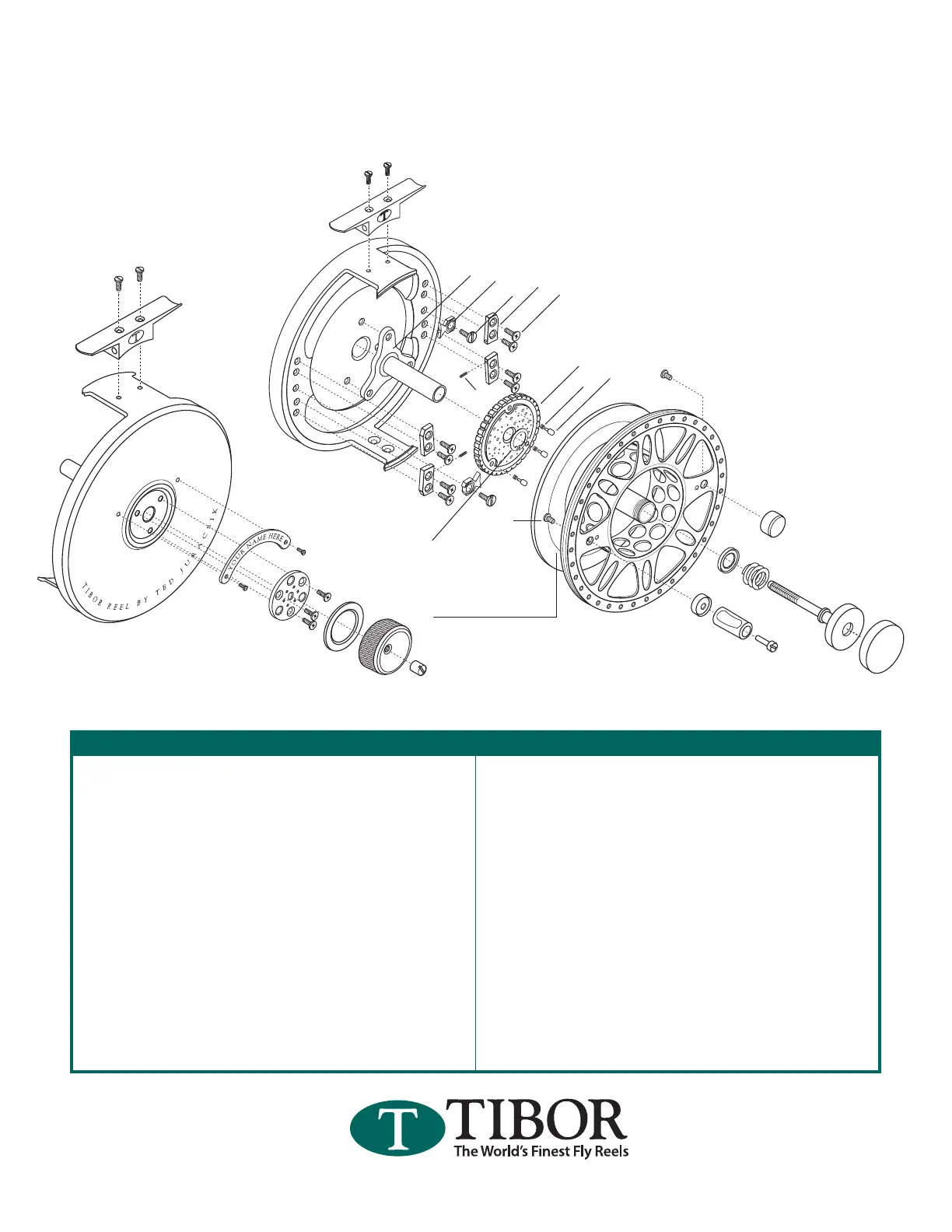

Ref.# Part Name Part#
1 Reel Stand Screw 2X
2 Reel Stand 4X
3 Frame 5X
4 Main Shaft 6X
5 Clutch Dog 7X
6 Clutch Screw 8X
7 Spring Retainer Block 9X
8 Spring Retainer Screw 10X
9 Clutch Spring 11X
10 Main Gear 12X
11 Clicker Spring 13X
12 Clicker Pin 14X
13 Counter Weight Screw 15X
14 Spool 16X
15 Counter Weight 17X
16 Thrust Washer 18X
Ref.# Part Name Part#
17 Main Shaft Spring 19X
18 Draw Bar 20X
19 End Cap 21X
20 Handle Knob Seat 22X
21 Handle Knob 23X
22 Handle Knob Screw 24X
23 Drag Adjustment Stop Nut 25X
24 Drag Knob 26X
25 Teon Washer 27X
26 Clicker Plate Screw 28X
27 Clicker Plate 29X
28 Name Plate Screw 30X
29 Name Plate 31X
30 Handle Screw 32X
31 Snap Ring 44X
All replacement parts are available through your
local Tibor dealer. A selection of replacement parts is
also available for purchase online at tiborreel.com.
When ordering parts, please specify model name (The
Everglades, The Gulfstream, The Pacic ) in addition to
the complete part name and part number.
