Tie Down Engineering 660E User Manual

1
1*
1A
1C
Model 66
Master Cylinder
1B
2
1
1
4
5
5
7
1
1 & 6
5
2
1A

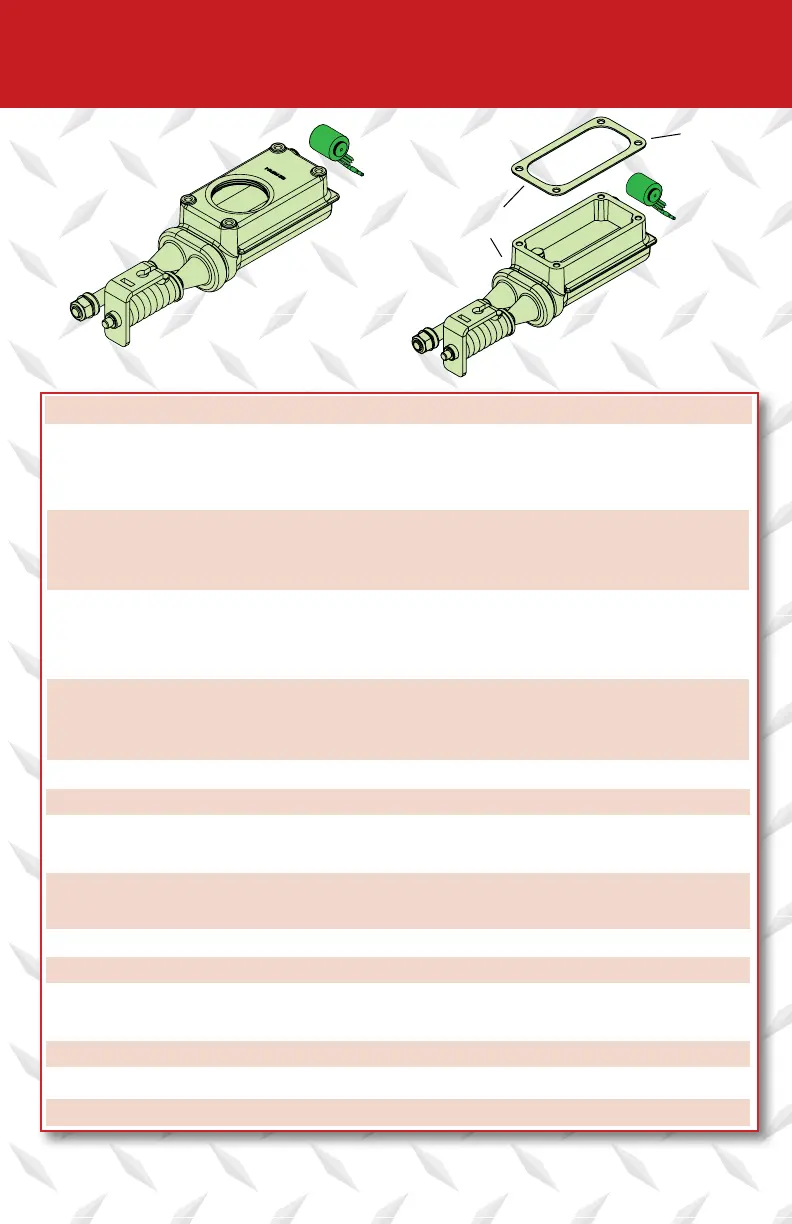

Model 660E
“Enclosed”
Master Cylinder
Model 660
“Open”
Master Cylinder
1
1
1 & 6
1
4
5
7
5
5
3
3
1B
1C
Model 660E/660 Replacement Parts
Page 10
Item # Part # Description
1A 70461K Disc Brake Master Cylinder Kit “Open Model” with gasket,
Includes: master cylinder and cap, 4 mounting screws with
washers, 2 rollers with matching nuts and bolts
1A 70461KD Drum Brake Master Cylinder Kit “Open Model” with gasket,
Includes: master cylinder and cap, 4 mounting screws with
washers, 2 rollers with matching nuts and bolts
1 70519K Disc Brake Master Cylinder Kit “Enclosed Model”
Includes: master cylinder and cap, 4 mounting screws with
washers, 2 rollers with matching nuts and bolts
1 70519KD Drum Brake Master Cylinder Kit “Enclosed Model”
Includes: master cylinder and cap, 4 mounting screws with
washers, 2 rollers with matching nuts and bolts
1B 11286 Disc Brake Solenoid - used with Disc Brake Actuators
1C 70470-3 Gasket - For “Open Model” master cylinders
2 70411 Latch Kit Assembly, with Drop N Go Coupler,
(for serial numbers 17926 and below)
2 70412 Latch Kit Assembly, with Drop N Go Coupler,
(for serial numbers 17927 and above)
3 50317 Emergency Stop Cable (E-stop/Breakaway)
4 50301 Safety Cable with stainless steel pin - Includes mounting screw
5 70462K Actuator Covers, Includes: front and rear cover plates and
4 mounting screws
6 48986A Master Cylinder Fill Cap with internal bladder, 2.25” Opening (E-Models)
6 70470-4 Master Cylinder Fill Cap with internal bladder, 1.25” Opening (Open Models)
7 48845 Safety Spring with two mounting screws
