Tie Down Engineering 660E User Manual

1
1*
1A
1C
Model 66
Master Cylinder
1B
2
1
1
4
5
5
7
1
1 & 6
5
2
1A
Model 660E
“Enclosed”
Master Cylinder
Model 660
“Open”
Master Cylinder
1
1
1 & 6
1
4
5
7
5
5
3
3
1B
1C

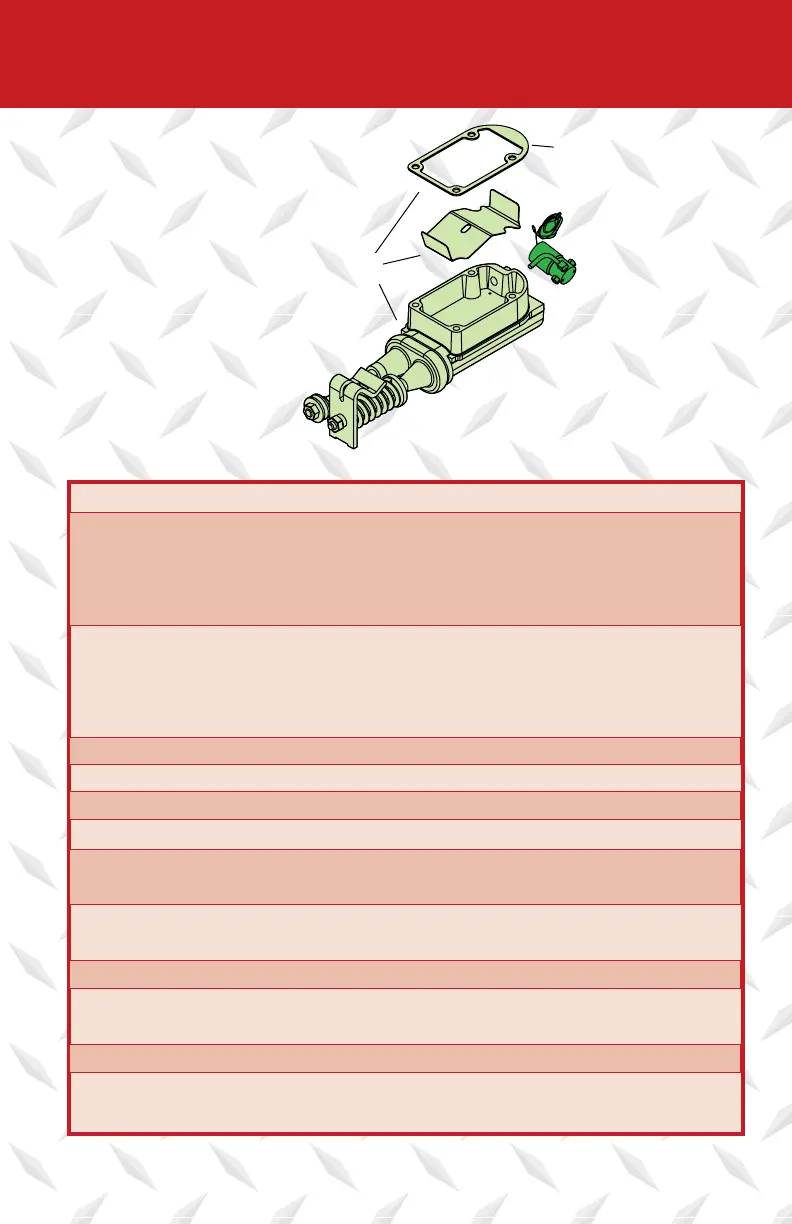

Model 66 Replacement Parts
Page 12
Item # Part # Description
1A 47260K Disc Brake Master Cylinder Kit “Lever Latch”
with gasket and fluid baffle, includes: master cylinder and
cap, 4 mounting screws with washers, 2 rollers with matching
nuts and bolts
1A 47268K Drum Brake Master Cylinder Kit “Lever Latch”
with gasket and fluid baffle, includes: master cylinder
and cap, 4 mounting screws with washers, 2 rollers with
matching nuts and bolts
1B 11253A Disc Brake Solenoid, Back Flow Model with return hose
1C 48803 Gasket, for “Lever Latch” master cylinders
2 47261 Latch Kit Assembly, (for serial numbers 16021 and above)
2 47262 Latch Kit Assembly, (for serial numbers 16020 and below)
3 50302 Emergency Stop Cable (E-stop/Breakaway),
(for serial numbers 16020 and below)
3 50305 Emergency Stop Cable (E-stop/Breakaway),
(for serial numbers 16021 and above)
4 50301 Safety Cable with stainless steel pin - Includes mounting screw
5 47264 Actuator Covers, includes front and rear cover plates and 4
mounting screws
6 48804 Master Cylinder Fill Cap with internal bladder
7 48845 Safety Spring with two mounting screws
(for serial numbers 16021 and above)
