Tiesse Levanto 100 - CONNECTORS

Modem Levanto hardware features Levanto Quick Start Guide
9

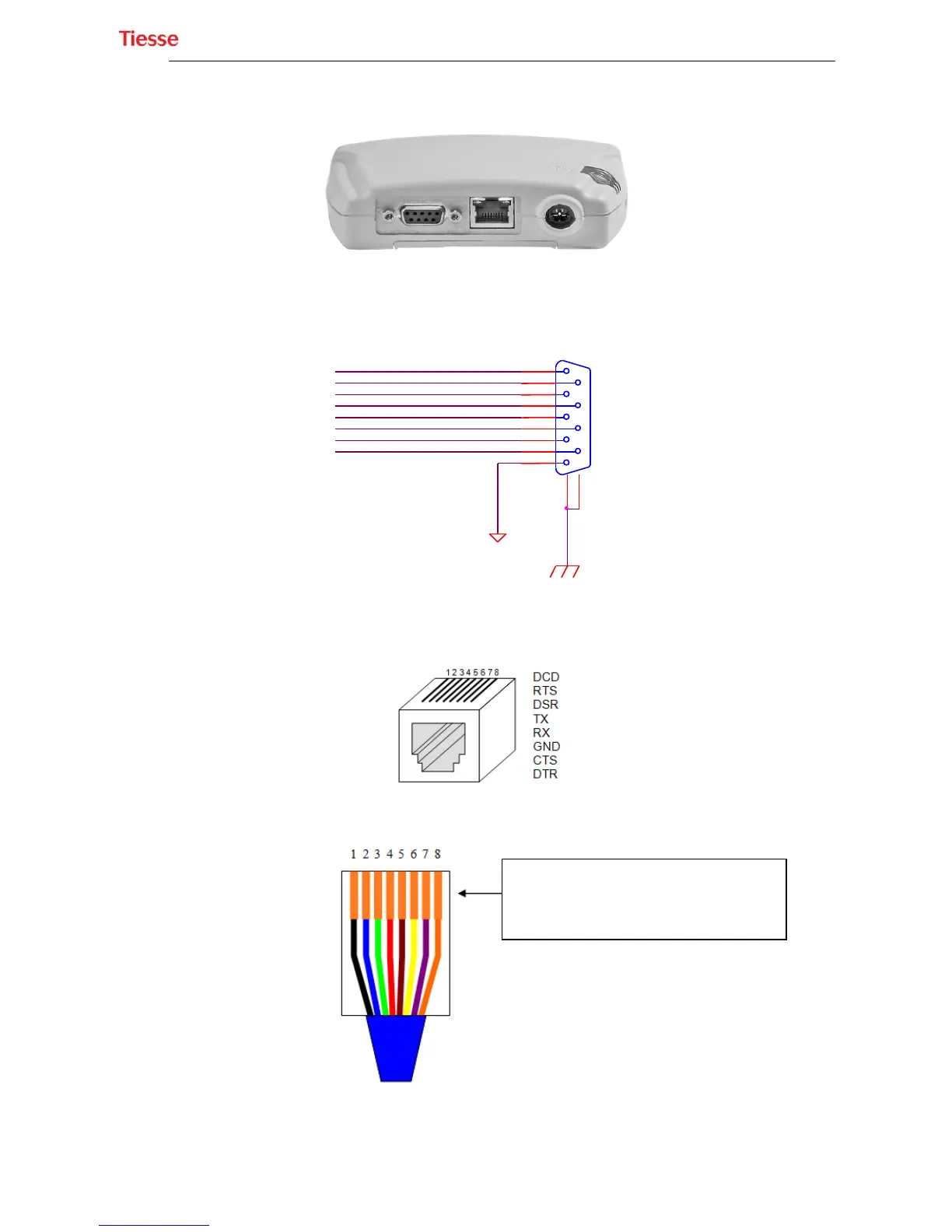

CONNECTORS
RS232 DCE port, DB9 connector - Levanto 110/310/410 models
COM_DSR
COM_RTS
COM_CTS
COM_RI
GND
5
9
4
8
3
7
2
6
1
10
11
P1
DB9F SH
COM_DCD
COM_RXD
COM_TXD
COM_DTR
Levanto 141 serial connector
RJ45 top view of the bottom
(opposite face of the one where is
the flap)
