SYSTEM OVERVIEW: TS4-R
9
• TS4-R mounting is recommended on the upper right as shown, but can
be placed on upper left if needed (due to racking constraints, etc.)
• TS4-R cable glands must not be facing up
• Allow clearance between PV module and mounting surface for air
circulation around TS4-R
• Do not drill additional mounting holes in the frame or metal bracket
Note: connect modules to TS4-R inputs before connecting outputs
1 2 43
4-123A
TS4-R-O
B A B A B A
AUX RS485-1 RS485-2GATEWAY POWER
access point

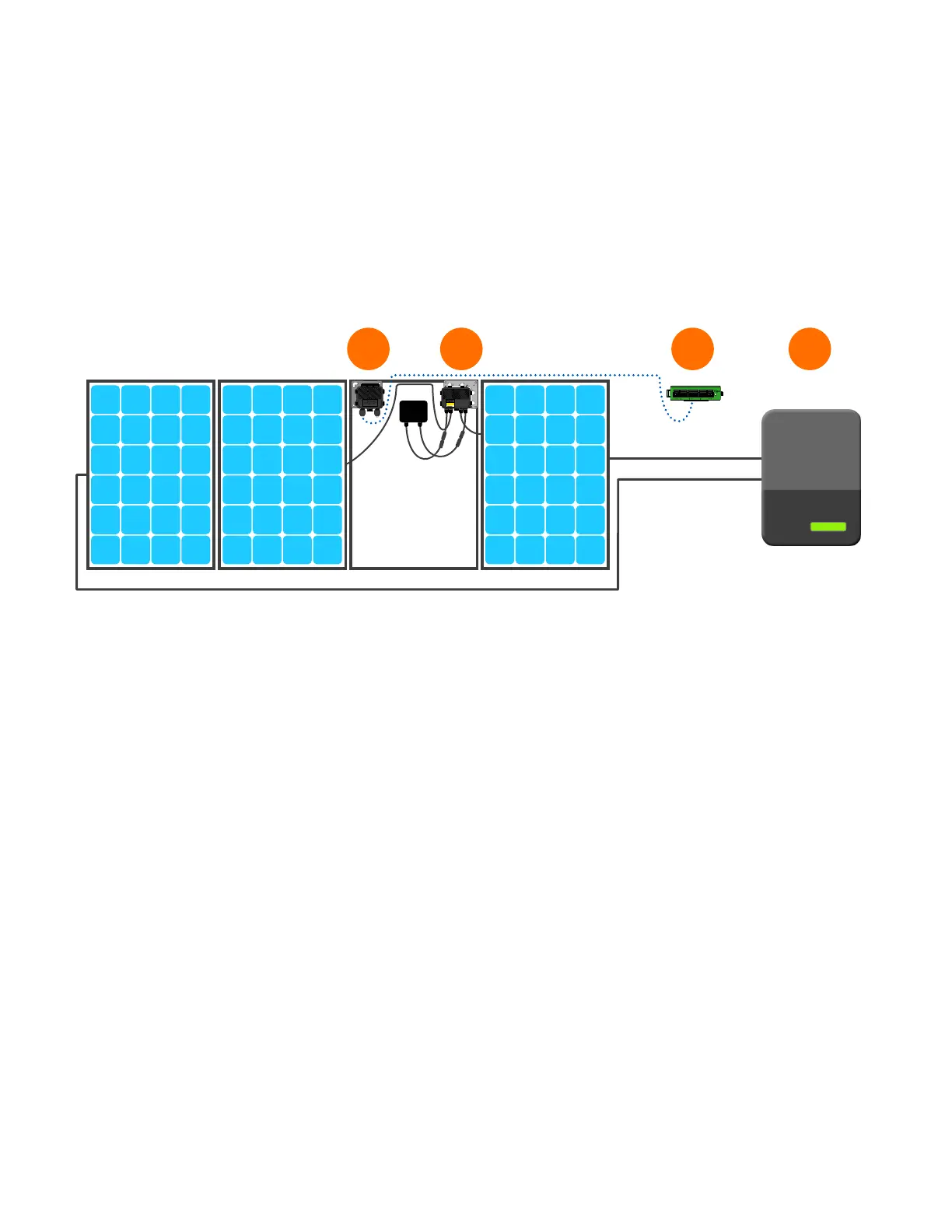

1. Tigo Access Point (TAP)
2. TS4-R installed on standard module
3. Cloud Connect Advanced (CCA)
4. Inverter
To Next Page
