RIVET SPINNER AND CHAIN BREAKER USE AND CARE
• DO NOT force the rivet spinner and chain breaker. Use this tool only for its intended purpose.
• DO NOT modify the rivet spinner and chain breaker in any way. Modification may impair the function
and/or could affect the life and safety of the equipment.
• DO NOT operate this tool with damaged parts. Check for damaged parts before each use. Replace
damaged or worn parts immediately. Never operate the product with a damaged part.
• STORE the rivet spinner and chain breaker when not in use. Store it in a dry, secure place out of the
reach of children. Inspect the rivet spinner and chain breaker to ensure it is in good working condition
prior to storage and before each use.
• DO NOT operate the rivet spinner and chain breaker without the guards in place. Be sure the guards
are in place and in working order.
CAUTION:
To prevent serious injury or death, read and understand owner’s manual before use.
• Wear ANSI safety compliant goggles.
• Keep hands clear of rivet spinner and chain breaker during use.
• Inspect tool for damaged parts before each use.
• DO NOT use by, or around, children.
ASSEMBLY INSTRUCTIONS
Bench Mounting

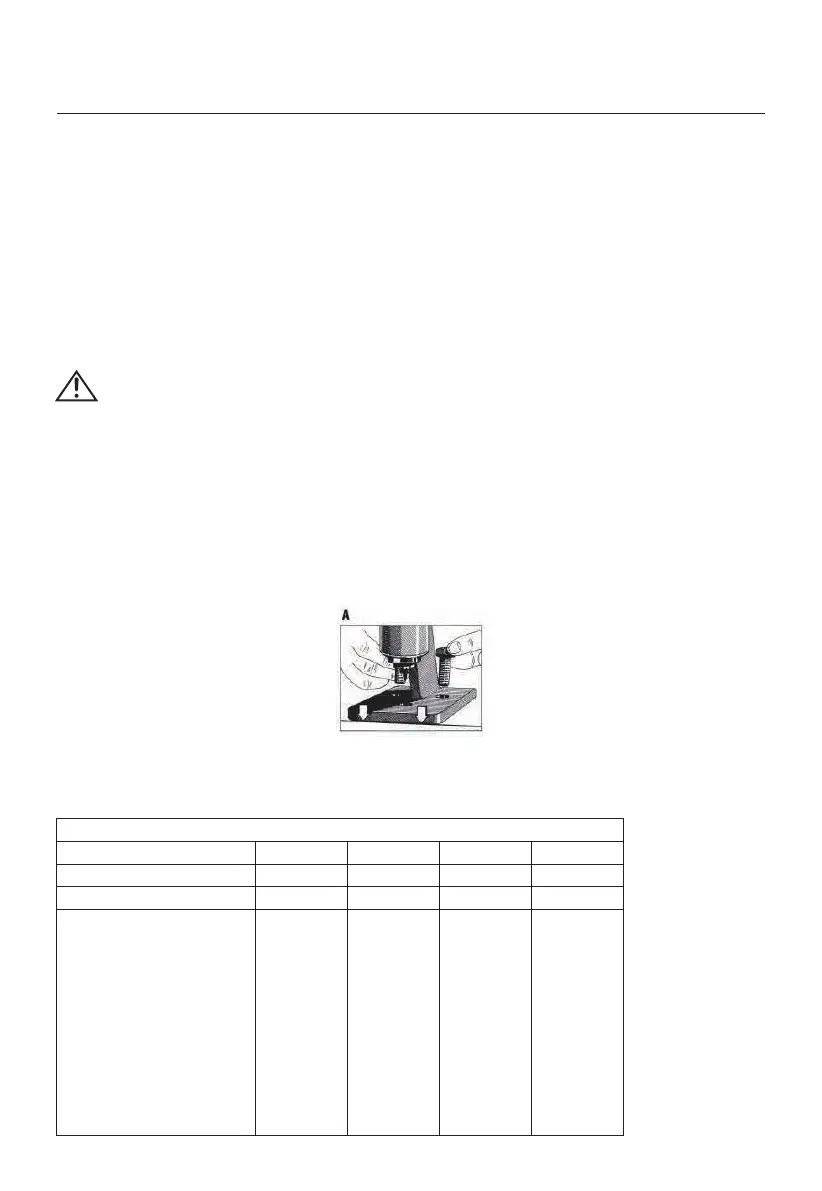

The rivet spinner and chain breaker is equipped with two holes for mounting to a bench. Lag screws or
bolts (not included) may be used to hold the unit into position (figure A).
Mount with rivet spinner and chain breaker flush with the side or front of the bench area. Mounting the
rivet spinner and chain breaker flush to the bench allows chains to clear for spinning.
SPINNER ANVIL/TAKE-UP HANDLE CHART
3 of 9
Spinner Anvil/Take-up Handle Chart
Take-Up Handle Marking
Spinner Anvil Marking
Chain Pitch
Drive Link Number
“B”
“B”
1/4
25
“A”
“A”
3/8
72
73
75
76
77
78
91
“B”
“B”
0.325
20
21
22
33
34
35
"A”
"A”
0.404
16
18
26
27
28
50
51
52
57
58
59
