Rivet Spinner and Chain Breaker
Replacing the Spinner/Anvil

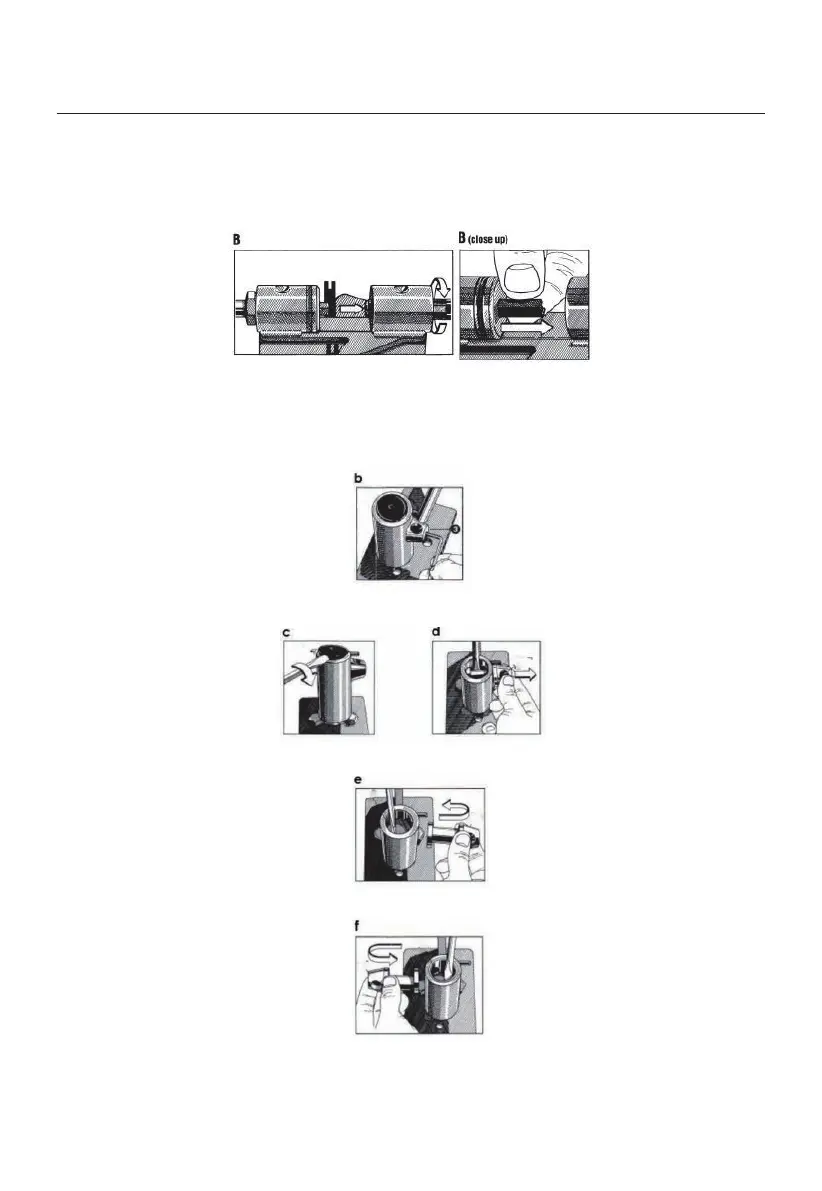

To remove a worn or damaged spinner/anvil, unscrew the take-up handle(#13) until the spinner anvil(#2)
can be easily removed (figure B). Replace it with a new or repaired anvil (#2) and take-up handle(#13).
Note: The unit is supplied with two spinner anvils marked ”A” ”B” and two take-up handles to match the
spinner anvils.
OPERATING INSTRUCTIONS
Right or Left Hand Use
The rivet spinner and chain breaker is assembled for right-hand use. If left-hand use is preferred, follow
the instructions below:
• Unscrew the set screw (#18) and remove the breaker level (#3) (figure b).
• Remove the plastic cap with a screwdriver and depress the spring-loaded punch holder (#21) to free up
the cam (#15) (figures c-d).
• Slide the cam (#15) out by the right side of the unit (figure e).
• Reinsert the cam (#15) into the opposite side of the unit. Depress the punch holder (#21) and insert the
cam (#15) (figure f).
• Replace the plastic cap and reinsert the breaker level (#3). Tighten the set screw with an Allen wrench
(#20).
• Remove the stop pin (#14) from the right side of the unit and reinsert it into the left side (figure g).
