Rivet Spinner and Chain Breaker
Replacing the Punch

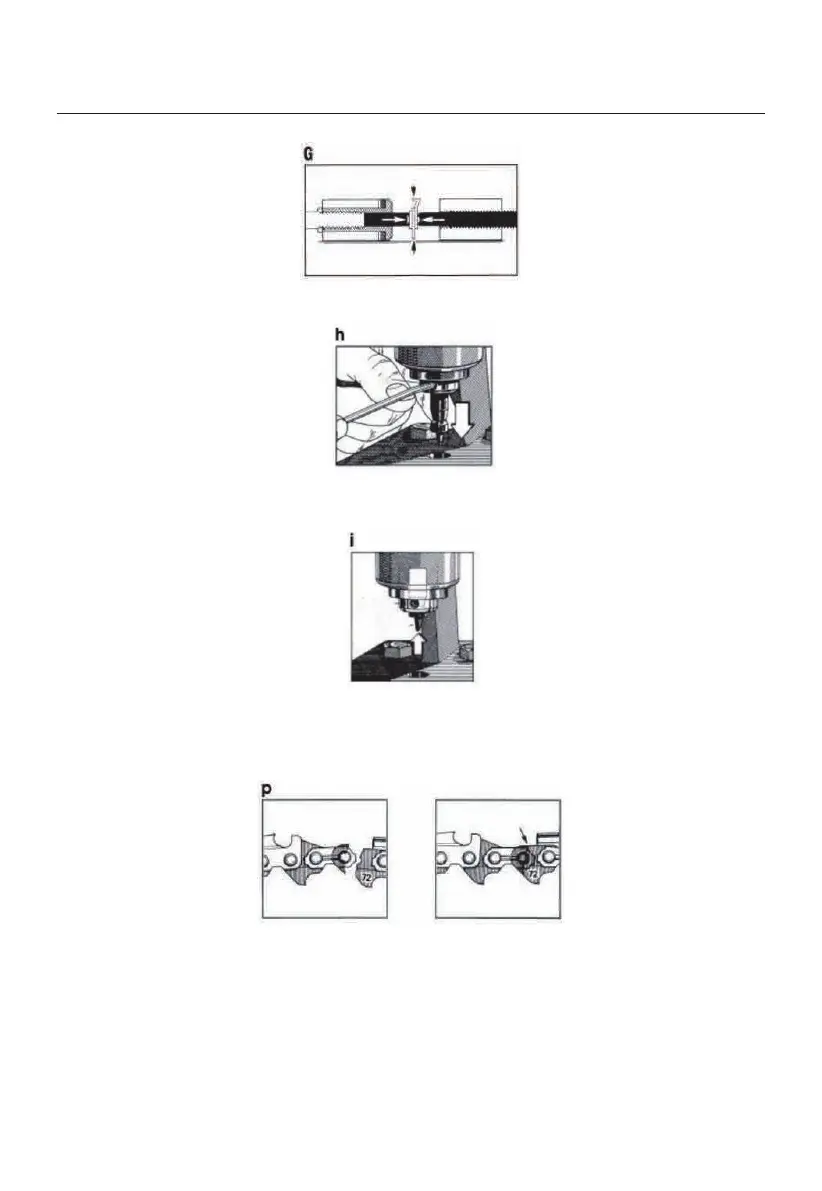

• To remove a worn or damaged punch (#19), loosen the set screw (#18) with an Allen wrench (#20)
(figure h).
• Insert a new punch into the punch holder (#21). (Push the punch up with the unit fully seated.) Tighten
the set screw (#18) (figure i).
Replacing a Broken Drive Link
The point of breakage usually occurs at or near the rivet hole.
• First, remove the cutter or the strap and half of the broken drive link. Connect the two broken sections
back to the original position prior to the breakage (figure p).
• Center the breaker punch (#19) over the rivet head and pull the handle down just enough to push the
rivet out. Repeat with the other rivet. Do not use excessive force.
Chain Breaking
• Insert the chain portion to be broken into the slot of the adjustable anvil (figure j). Tighten the
adjustment knob unit until the chain is securely positioned. Position the cutter as shown (figure k).
6 of 9
