Rivet Spinner and Chain Breaker
Note: It is not necessary
to re-adjust the anvil when breaking multiple loops of chain of the same
chain type.

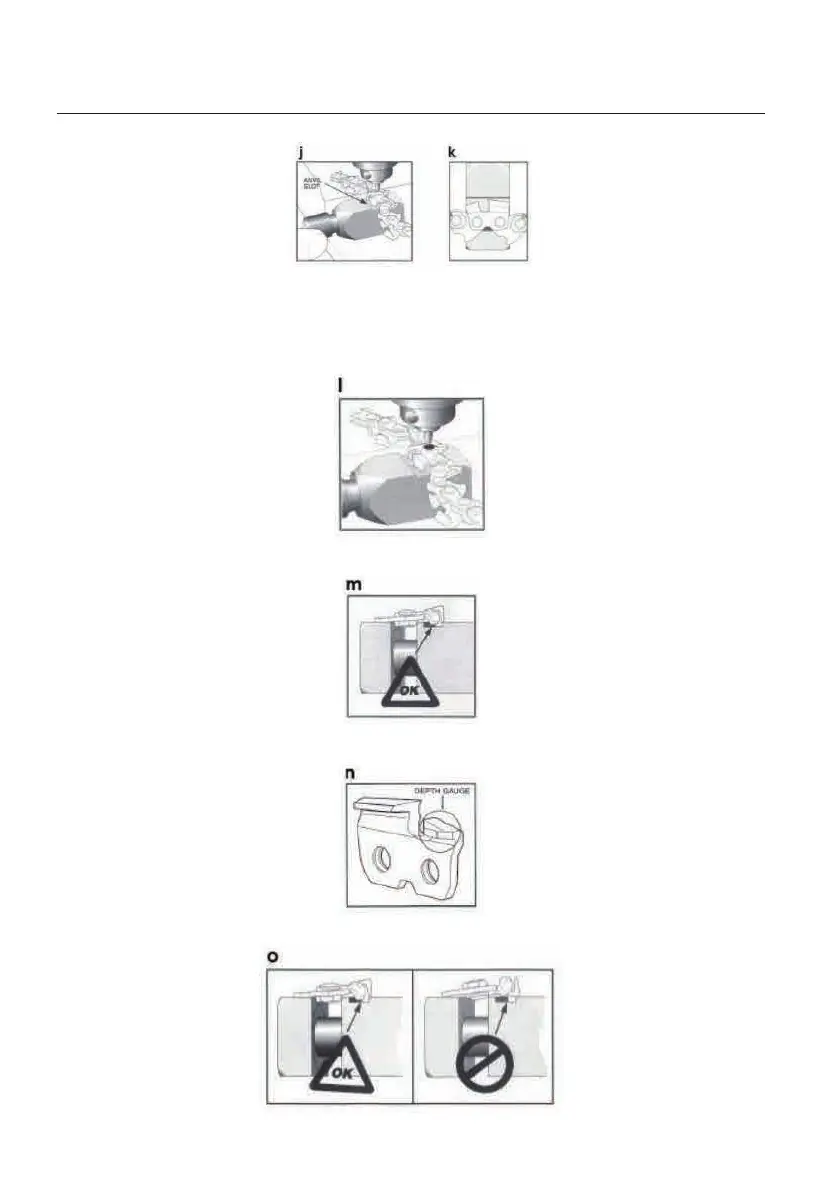

• Position the rivet head directly under the punch (#19) and pull the breaker level (#3) down just far
enough to push the rivet out. Do not use excessive force (figure I).
Note:
A. When breaking a chain at the cutter, make sure the cutter is in the correct position (figure m).
B. For cutters with depth gauges, as in figure n, make sure to position the cutter properly.
C. Shown in figure o, using the side of the adjustable anvil with the slot.
7 of 9
