3.4 Resistance Setting Table

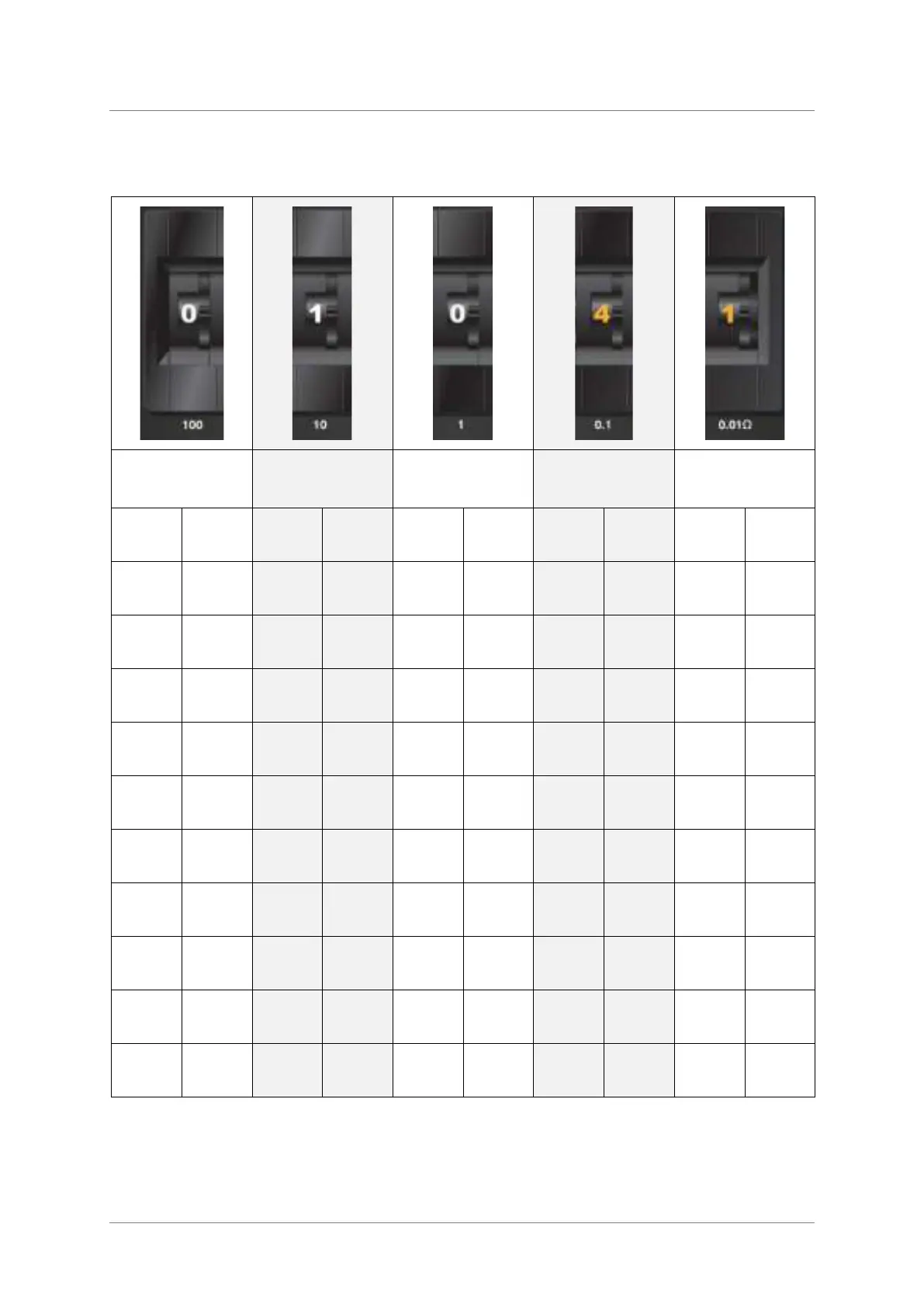

The below table shows the settings of each resistance decade using the dials.
100 Ω
Decade
10 Ω
Decade
1 Ω
Decade
0.1 Ω
Decade
0.01 Ω
Decade
Dial Ω Dial Ω Dial Ω Dial Ω Dial Ω
0 0 Ω 0 0 Ω 0 0 Ω 0 0 Ω 0 0 Ω
1 100 Ω 1 10 Ω 1 1 Ω 1 0.1 Ω 1 0.01 Ω
2 200 Ω 2 20 Ω 2 2 Ω 2 0.2 Ω 2 0.02 Ω
3 300 Ω 3 30 Ω 3 3 Ω 3 0.3 Ω 3 0.03 Ω
4 400 Ω 4 40 Ω 4 4 Ω 4 0.4 Ω 4 0.04 Ω
5 500 Ω 5 50 Ω 5 5 Ω 5 0.5 Ω 5 0.05 Ω
6 600 Ω 6 60 Ω 6 6 Ω 6 0.6 Ω 6 0.06 Ω
7 700 Ω 7 70 Ω 7 7 Ω 7 0.7 Ω 7 0.07 Ω
8 800 Ω 8 80 Ω 8 8 Ω 8 0.8 Ω 8 0.08 Ω
9 900 Ω 9 90 Ω 9 9 Ω 9 0.9 Ω 9 0.09 Ω
