Timex DYNABEAT 253 - Page 4

Disassembly
of
the
Model 253 Movement
CAS
CAS
MOVEMENT
CO
MOVEMENT
LOCATING
TAB
lOCATING
NOTCH
TA
SNAPS
INTO
BEZEl
BEZEl

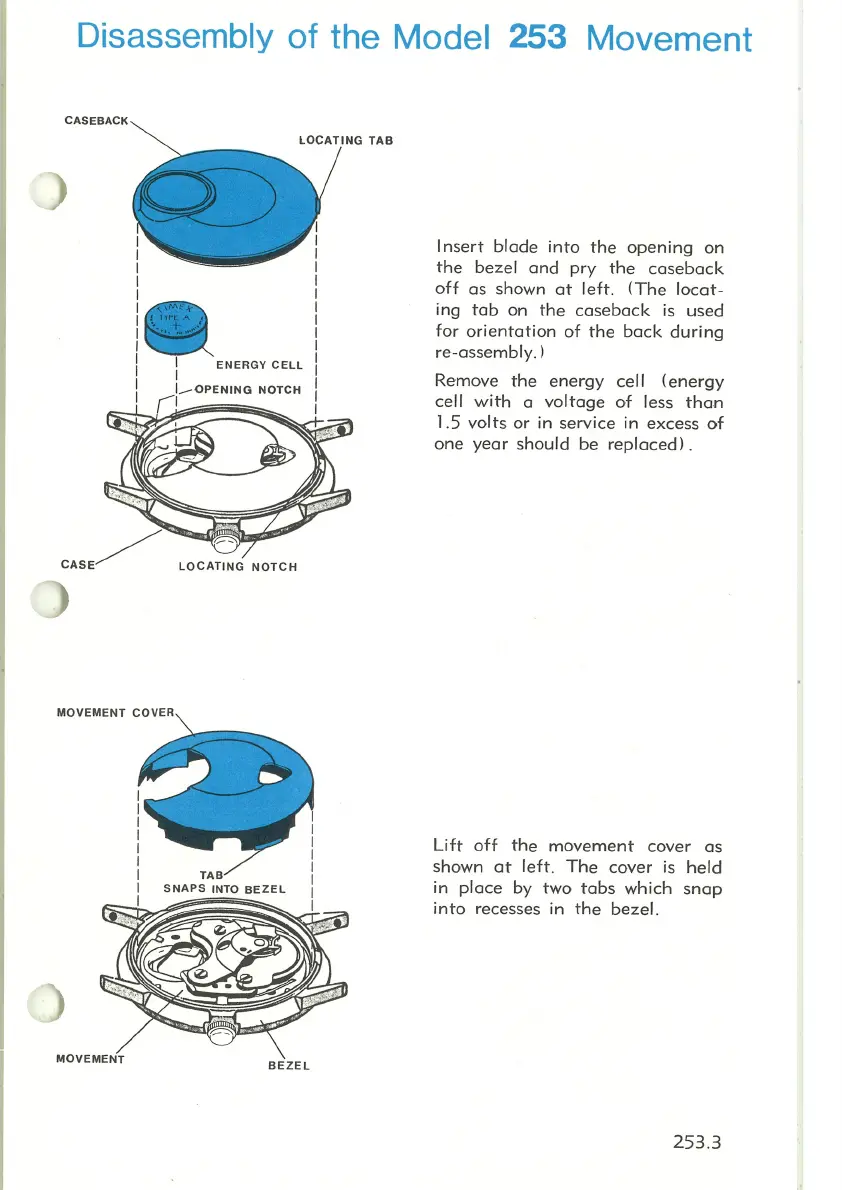

Insert
blade
into
the
opening
on
the
bezel
and
pry
the
caseback
off
as
shown
at
left.
(The
locat-
ing
tab
on
the
caseback
is
used
for
orientation
of
the
back
during
re-assembly.)
Remove
the
energy
cell
(energy
cell
with
a
voltage
of
less
than
1.5 volts
or
in service in
excess
of
one
year
should
be
replaced).
Lift
off
the
movement
cover
as
shown
at
left.
The
cover
is
held
in
place
by two
tabs
which
snap
into
recesses in
the
bezel.
253
.3
