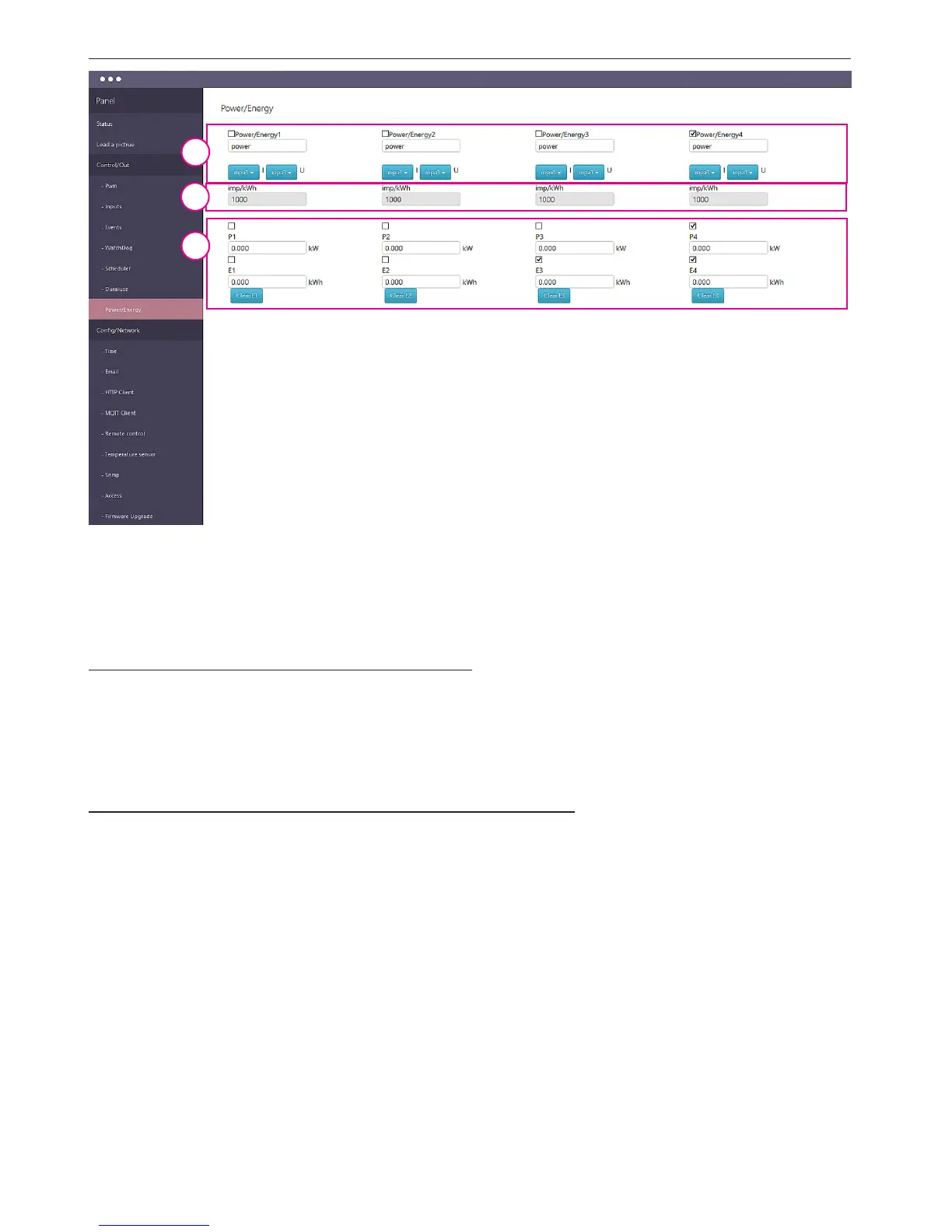

Control / Power/Energy
Power/Energy tab is used to set power settings and energy monitored by the energy me-
ter with pulse output or measuring current and voltage sensors connected to the analog
inputs INPA1 ÷ INPA6.
The measurement meter with pulse output:
For logic input INP1D ÷ INP4D connect the "+" (plus) output pulse counter, to GND "–"
(minus) from the counter.
Then, in the drop-down menu, select the input INP1D÷INP4D which is hooked counter [1]
and in the eld below enter the number of pulses is attributable to 1 kWh. [2]
Measurement of analogue current and voltage sensors:
[1] Panel name visible measurement. From the left, select the input INP is connected to the
current sensor, and in the right menu, select the input (sensor) voltage. When measuring
AC transconductors SCT can select the approximate value of the tension we have in the
electricity grid.
[3] Visibility panel measurement values: P1-P4 show the temporary values of powers in kW,
and E1-E4 the counted energy in kWh.
1
3
2
