Outputs connection - relay OUT0:
NC – contact normaly closed
C – common contact
NO – contact normaly open
CAUTION: Although the relays are able to switch alternating voltage 255VAC 10A,
the same Lan Controller does not meet the safety requirements for connection to
dangerous voltages for unauthorized persons (unsecured plugs, no ground). Such
a system can make a person authorized and properly secure the device in a closed
box, eg. Electricity. It is safer to also use external relays eg. DIN rail switching high
voltage and only the controlled from Lan Controller.
NO C NC
RESET BUTTON
Pressing for about 0.5 seconds to change state relays, and hold for longer - up to around
ve seconds will change all settings (both network and conguration) on the factory re-
set. Conrmation of the settings is fast switching on and o the relay (click-click), not to be
confused with the change of status and exclusion of the relay after a reboot.
login as an administrator: user: admin password: admin
IP: 192.168.1.100
IDC10-1
9 – +5V
7 – UART_RX
5 – GND
3 – +3,3 V
1 – UART_TX
GPIO1 –10
GPIO2 – 8
PWM3 – 6
PWM2 – 4
PWM1 – 2
IDC10-2
9 – POWER
7 – PWM0
5 – GND
3 – +5V
1 – INPA5
OUT1 –10
OUT2 – 8
OUT3 – 6
OUT4 – 4
INPA6 – 2
ETHERNET
100 Mbit
PoE max 55 V
SCL – 1
+5V – 2
SDA – 3
1wire – 4
GND – 5
+3,3V – 6
INP6
RJ-12 6p6c
1wire
RESET
POWER
max 55 V

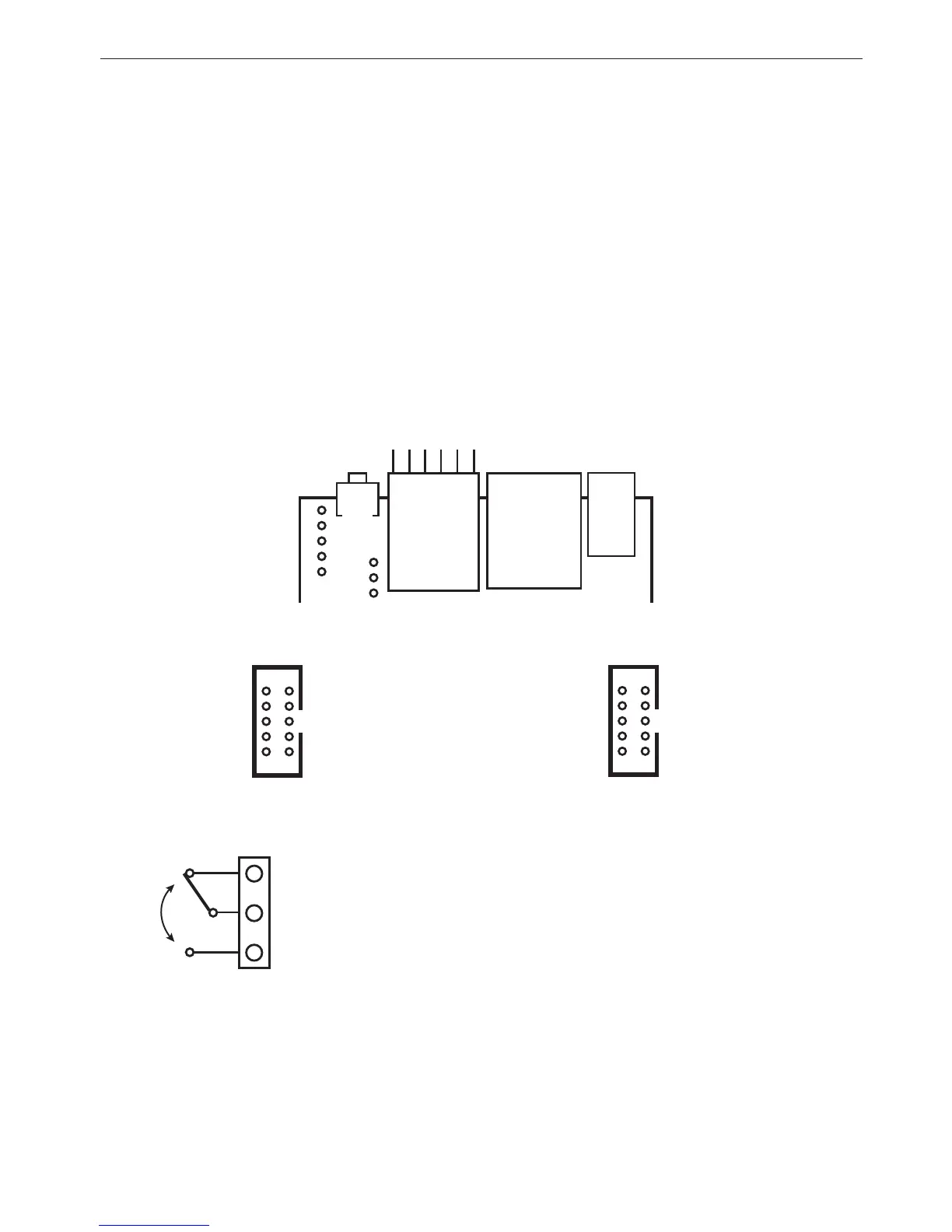

DESCRIPTION OF CONNECTORS:
RJ12 6P6C (1-wire bus, I2C), IDC10-1, IDC10-2:
