INSTALLATION
SELECTION OF INSTALLATION EqUIPMENT

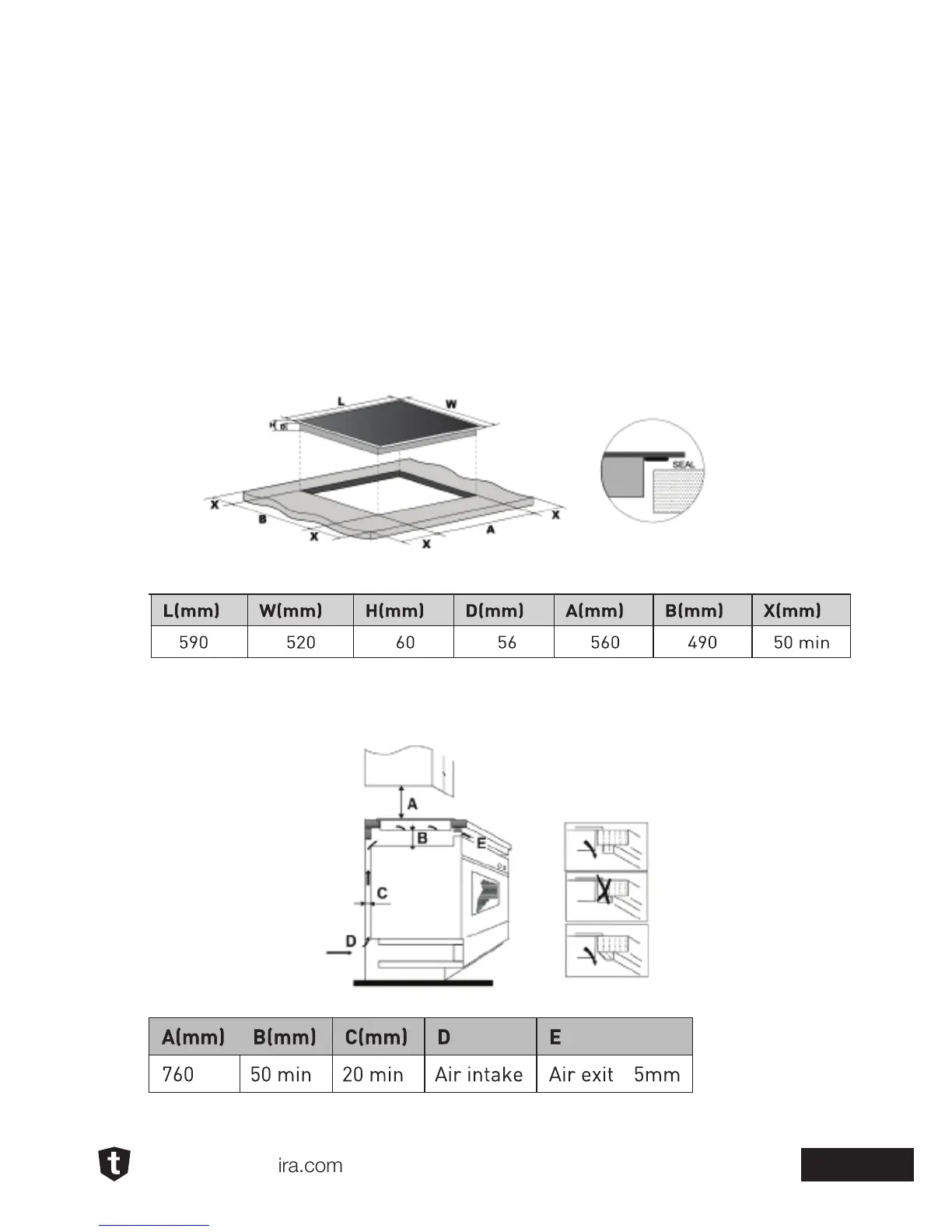

Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation
and use, a minimum of 50mm space shall be preserved around the hole.
Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant work surface
material to avoid deformation caused by the heat radiation from the hotplate. As shown below:
Ensure the Induction cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure
the Induction cooker hob is in good working order, as shown below:
NOTICE // The safety
distance between
the hotplate and the
cupboard above the
hotplate should be at
least 760mm.
