Titan Attachments HD60RAKE - Page 5

5

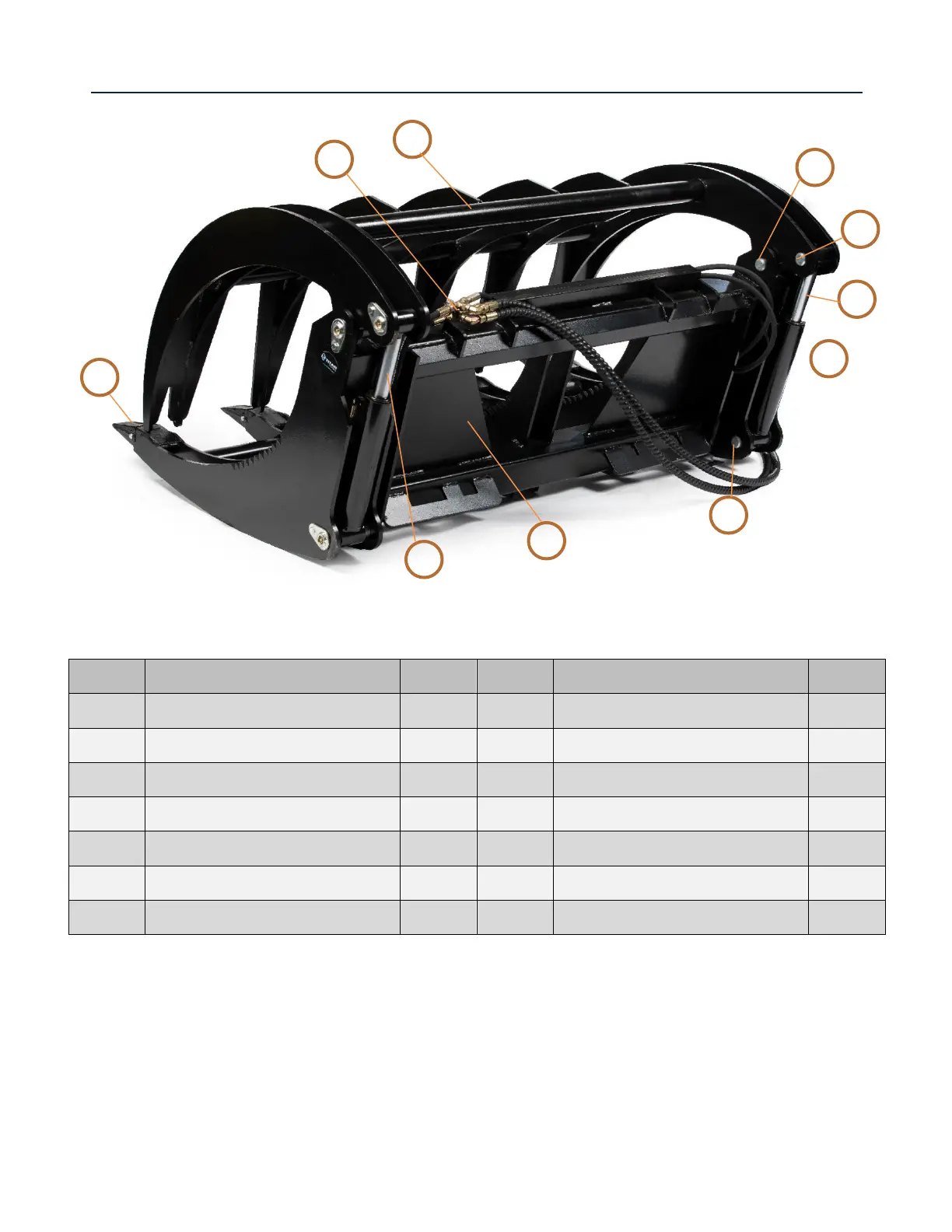

PARTS DIAGRAM / EXPLODED VIEW
KEY DESCRIPTION QTY KEY DESCRIPTION QTY
(1) TOP JAW X1 (8) HOSE A X1
(2) FRAME X1 (9) HOSE B X1
(3) CYLINDER X2 (10) HOSE C X1
(4) TOP CYLINDER PIN X2 (11) HOSE D X1
(5)
BOTTOM CYLINDER
X2 (12) HOSE E-FEED/RETURN X2
(6) JAW PIN X2 (13) TOOTH X5
(7) T-FITTING X2
1
6
4
3
10
3
13
7
2
5
