Titan Attachments TORO - Parts Diagram and Exploded View

6

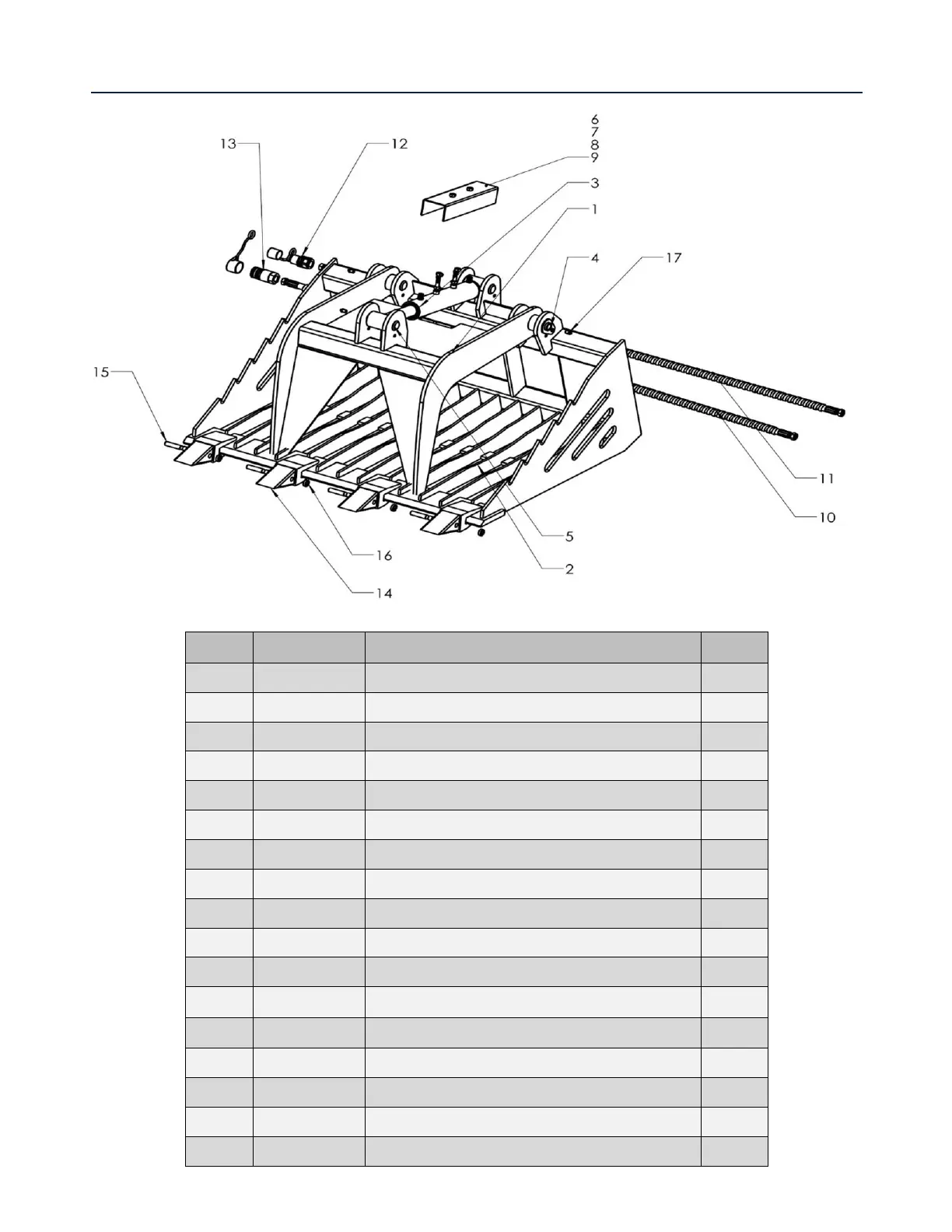

PARTS DIAGRAM / EXPLODED VIEW
KEY
PART
DESCRIPTION
QTY
(1)
P112459-1
TOP JAW ROCK BUCKET GRAPPLE
1
(2)
P112459-2
FRAME ROCK BUCKET GRAPPLE
1
(3)
P112459-3
RBGRAP CYLINDER
1
(4)
P112459-4
PIN FOR GRAPPLE
2
(5)
P112459-5
PIN FOR CYLINDER
2
(6)
P112459-6
SHIELD FOR CYLINDER
1
(7)
P112459-7
WASHER FOR SHILED
2
(8)
P112459-8
SPRING WASHER FOR SHIELD
2
(9)
P112459-9
NUT M10
2
(10)
P112459-10
HOSE A- FEED/RETURN
1
(11)
P112459-11
HOSE B
1
(12)
FFC12F
FEMALE FLAT FACE COUPLER ½ THREAD
1
(13)
FFC12M
MALE FLAT FACE COUPLER ½ THREAD
1
(14)
P112459-14
TOOTH
4
(15)
P112459-15
PIN FOR TOOTH
4
(16)
P112459-16
RETAINER
4
(17)
P112459-17
BOLT M10*15
4
