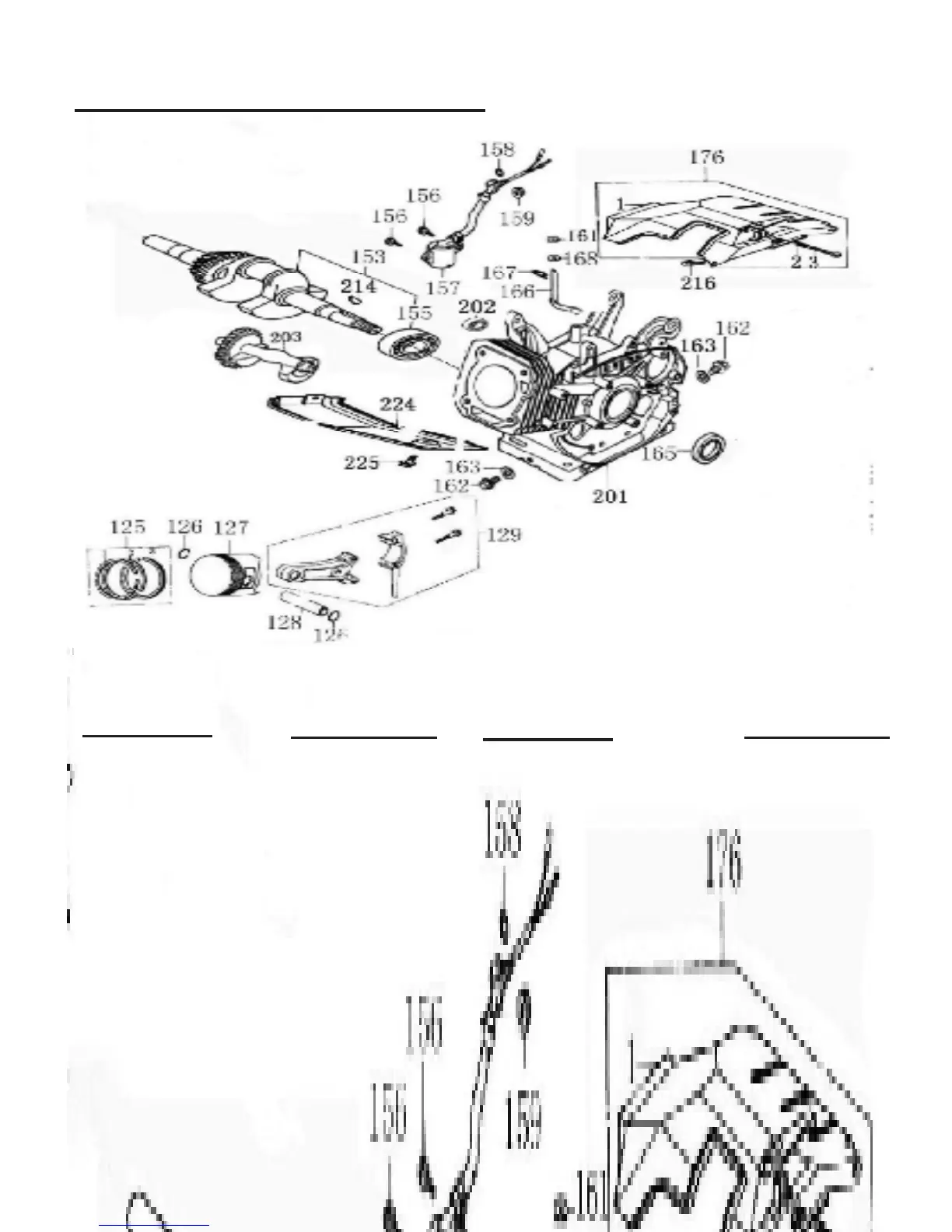

Titan 6500 - Engine Block Assembly

16
Part Name
125- Rings
126- Piston Pin Clip
127- Piston
128- Piston Pin
129- Connection Rod
153-Crankshaft
155-Crankshat bearing
156- Bolt
157- Oil Sensor
158- Washer
159- Nut
162- Oil Drain Plug
TI 12-14
TI 12-14
TI 12-14
TI 12-14
TI 12-14
TI 12-06
TI 12-06
N/A
TI 12-22
N/A
N/A
TI 12-24
163-Oil Drain Plug Washer
165-Main Seal
166-Governor Arm
167-Governor Arm Clip
168-Governor Arm Clip Washer
176- Heat Sheild W/Governor stop
201- Engine Block
202- PTO Seal
203- Blancer Shaft
214- Key Weigh
TI 12-24
TI 12-27
TI 12-10
TI 12-10
TI 12-10
TI 12-30
TI 12-29
TI 12-28
TI 12-15A
TI 12-06
Titan Part # Titan Part #
Part Name
Some Parts sold as Assemblies
1. Engine Block Assembly
