TLR 8IGHT-T E 3.0 - Rear Shock Tower Installation

32
32
LOSA6278

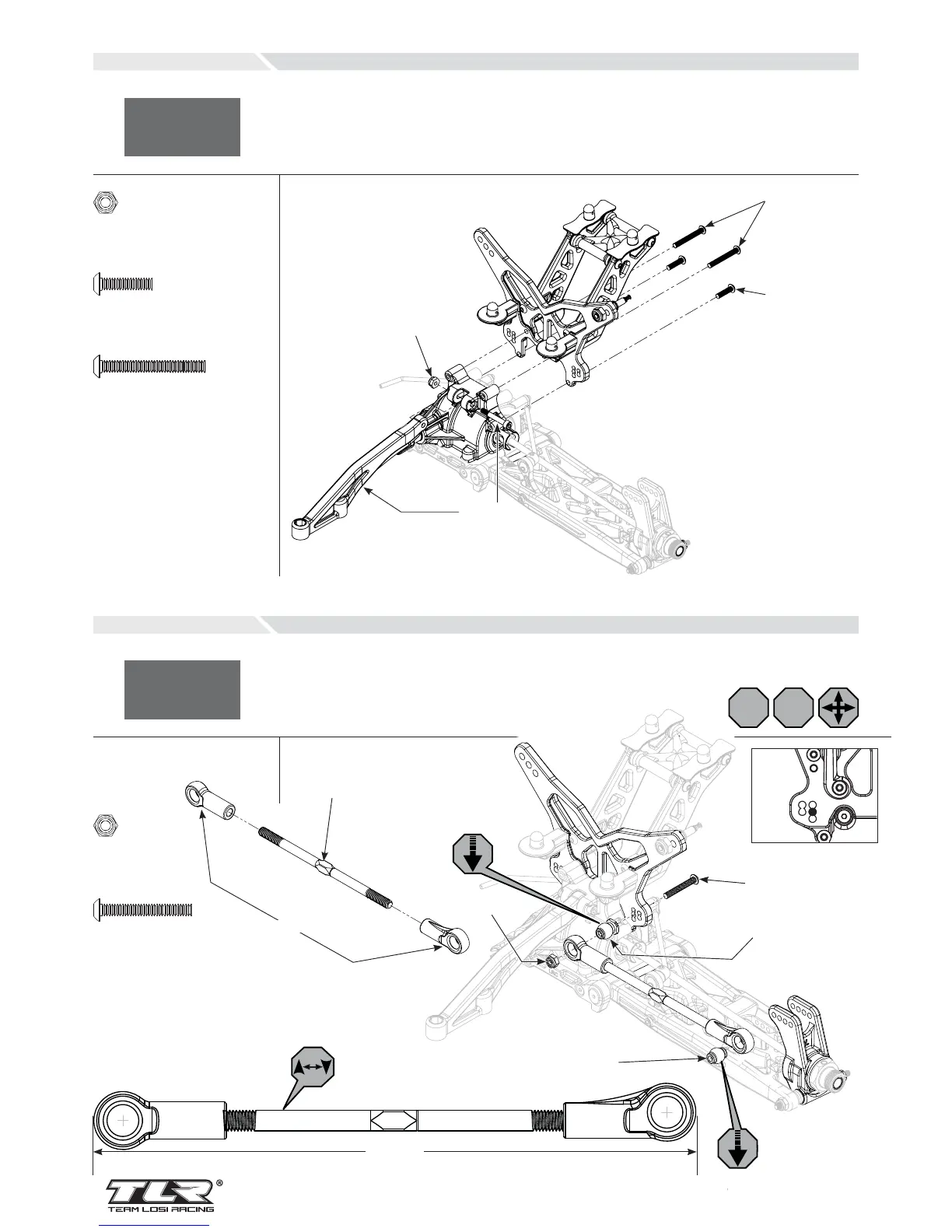

D-9
EN Rear Shock Tower Installation
DE Einbau der Stoßdämpferbrücke hinten
FR Installation du support d’amortisseurs arrière
IT Installazione supporto ammortizzatori poster.
D-10A
EN Tie Rod Installation
DE Einbau der Spurstange
FR Installation des biellettes de carrossage
IT Installazione tirante
LOSA6280
LOSA6302
TLR241003
L
R
L
R
L
LOSA6545
LOSA6282 x 1
5-40 x 7/8”
LOSA6047
LOSA6302
LOSA6049
LOSA6282
LOSA6048
145.5mm
LOSA6278 x 2
5-40 x 1/2”
LOSA6302 x 1
L 5-40 x 1/4”
LOSA6280 x 2
5-40 x 1”
LOSA6302 x 1
L 5-40 x 1/4”
