Injection Molding Machine Appendix D
D-3 V1.0

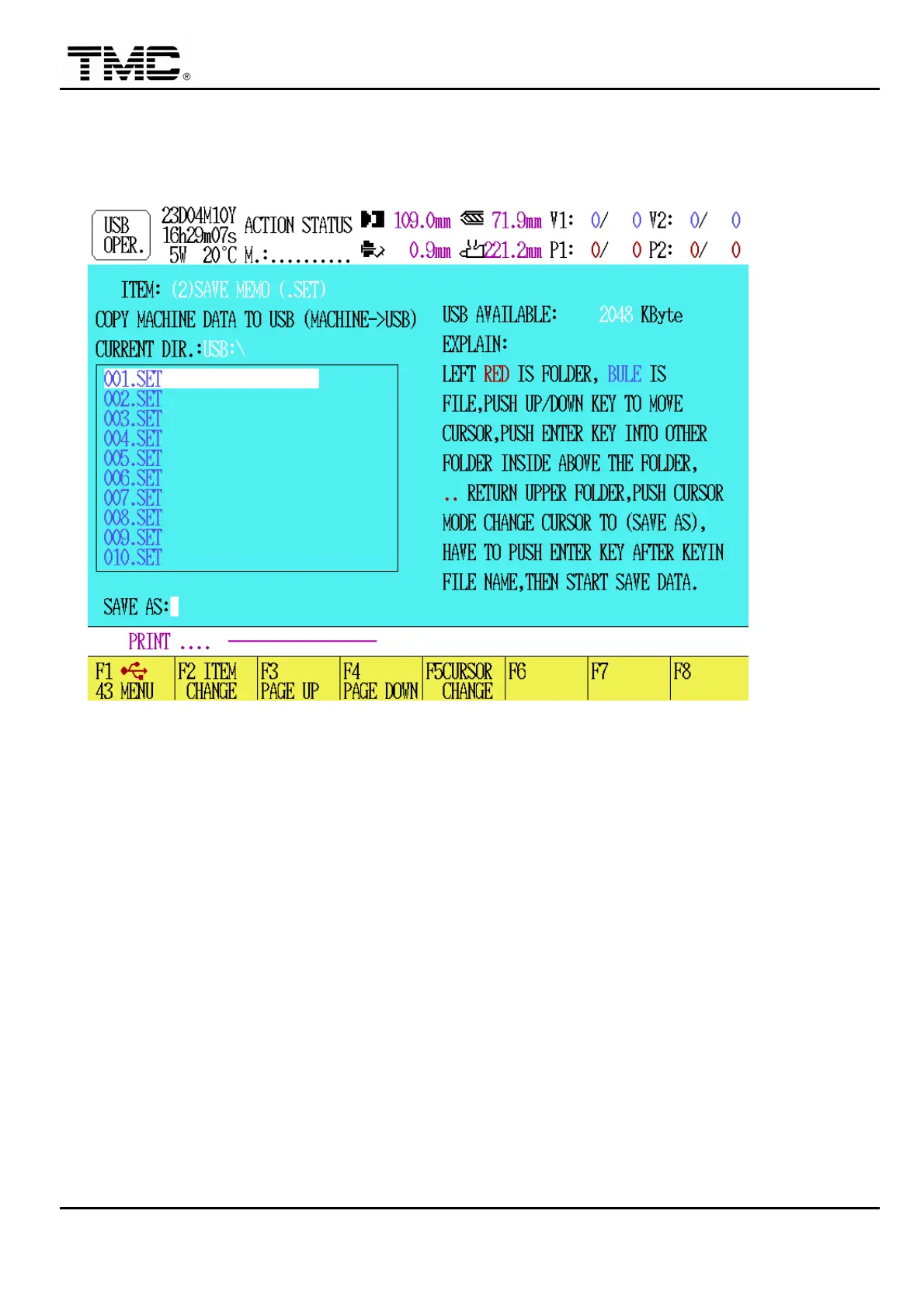

(2) SAVE MEMO (.SET): This function will save current machine mold data
in USB disk.
a .SET file size is about 5Kbyte, maximum savable mold data numbers is
depended on USB disk size, USB disk size 2G or bigger must be formatted
in FAT32 file structure.
Steps: press F2 [ITEM CHANGE] UNTIL [(1)SAVE MEMO (.SET)] is showed Æ
use F3,F4, ↑,↓ to select data, press ENETR to overwrite selected data.
Press F5 will move cursor to SAVE AS position, enter desired mold name
without .SET extensions filename, then pressure ENTER to save mold data
in a new created filename.(maximum filename length is 31 letters)
(3)LOAD US (.USC): used to update user program, file extension name can
only be .USC (96Kbyte).
Steps: press F2 [ITEM CHANGE] UNTIL [(1)LOAD US (.USC)] is showed, Æ use
F3,F4, ↑, ↓ to select user program, press ENTER to update user program.
Wait until system messages show on left bottom side.
GROUP TRANS OK.
PLC USER BOOTING.
