Injection Molding Machine Appendix D
D-2 V1.0
(9)MEMO COPY TO INSUDE: Transfer mold data in USB disk to machine internal
mold memory.
(10)MEMO COPY TO OUTSIDE: Transfer mold data in machine internal mold
memory to USB disk.
4.Function descriptions and operations

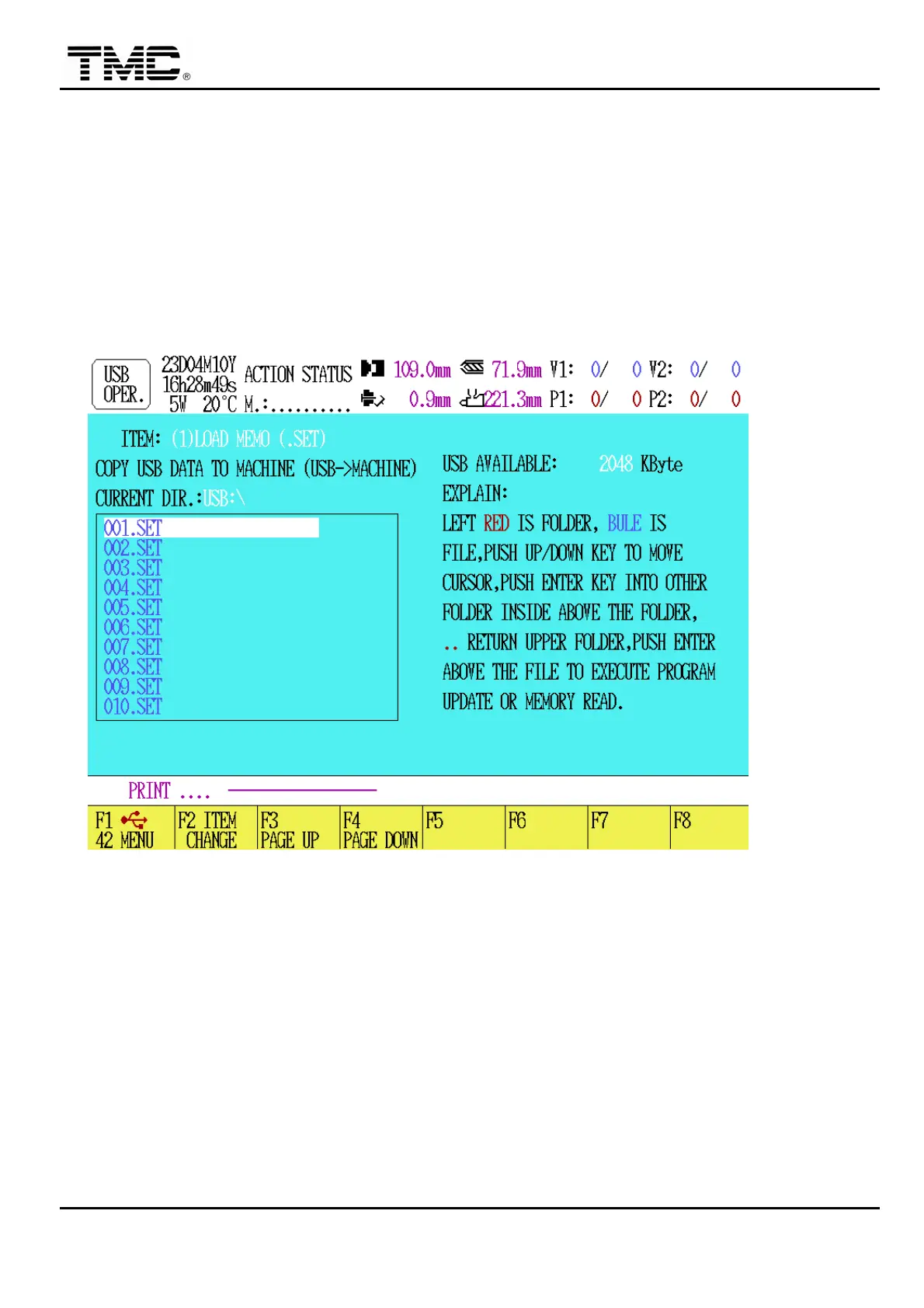

(1) LOAD MEMO (.SET): Select mold data in USB, for example, the filename
is XXX.SET.
This function is to load molding data in USB disk to machine current molding
setup, only molding data are loaded.(when using special engineer USB disk,
then machine related parameters will also be loaded.)
Steps: press F2 [ITEM CHANGE] UNTIL [(1)LOAD MEMO (.SET)] is showed Æ
user F3,F4, ↑,↓ to select data.
Move cursor to desired item position, press ENTER, and data will be loaded
to machine. During loading process, system messages show on left bottom
side.
SEEPROM DATA CHECK
GROUP TANS OK.
101. PLC USER BOOTING START.
Loading process is finished.
