TMG TMG-SP100 - User Manual

20 pages

Save Page as PDF

To Next Page

To Next Page

Loading...

Please read the product manual completely before assembly

Check against the parts list to make sure all parts are received

Wear proper safety goggles or other protective gears while in assembly

Missing parts or questions on assembly?

Please call: 1-877-761-2819 or email: cs@tmgindustrial.com

Do not return the product to dealer, they are not equipped to handle your requests

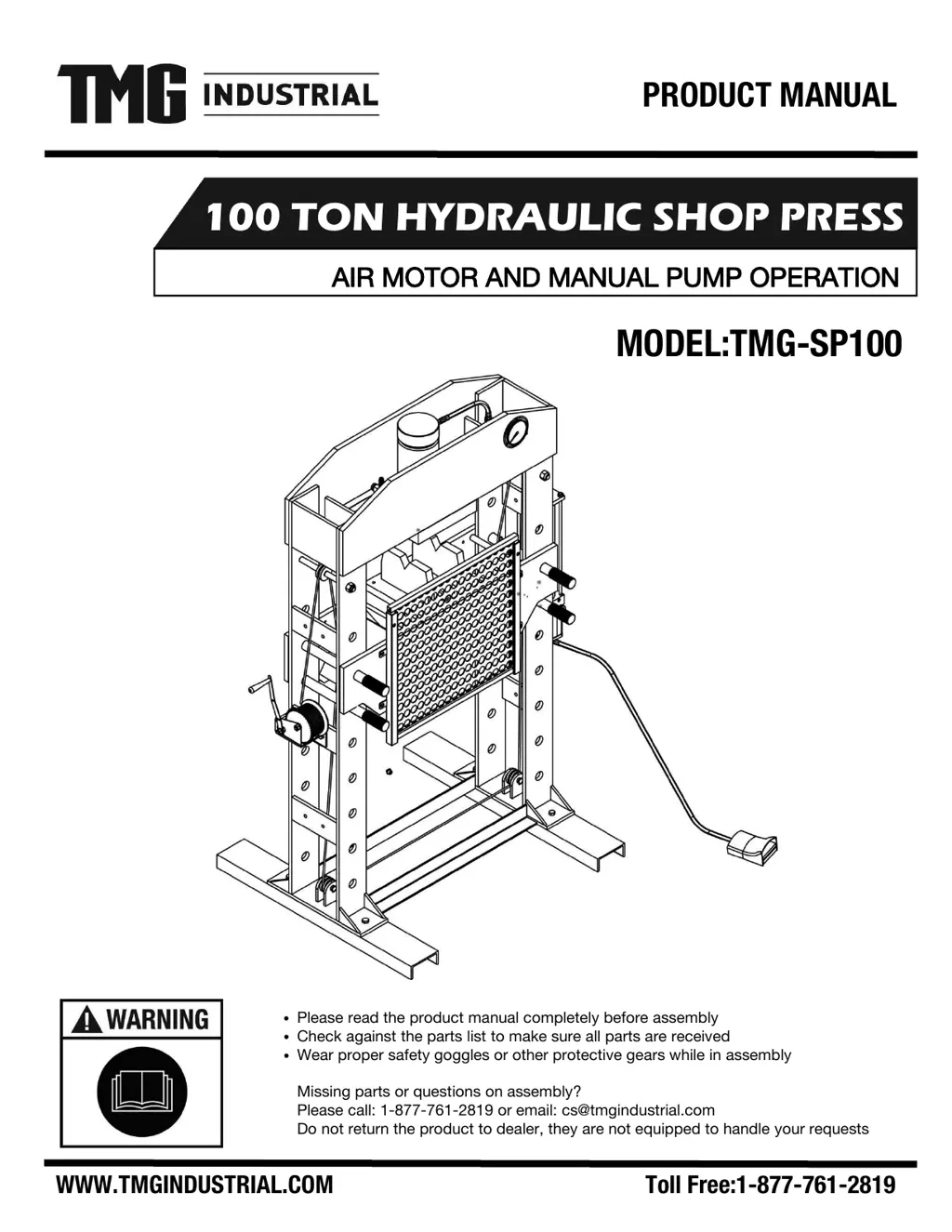

100 TON HYDRAULIC SHOP PRESS

AIR MOTOR AND MANUAL PUMP OPERATION

MODEL:TMG-SP100

PRODUCTMANUAL

WWW.TMGINDUSTRIAL.COMTollFree:1-877-761-2819
