4. IMPEDANCE CHANGE
Input impedance is factory-preset as follows:
CS-64: 1.7 kΩ
CS-154: 670 Ω
CS-304: 330 Ω

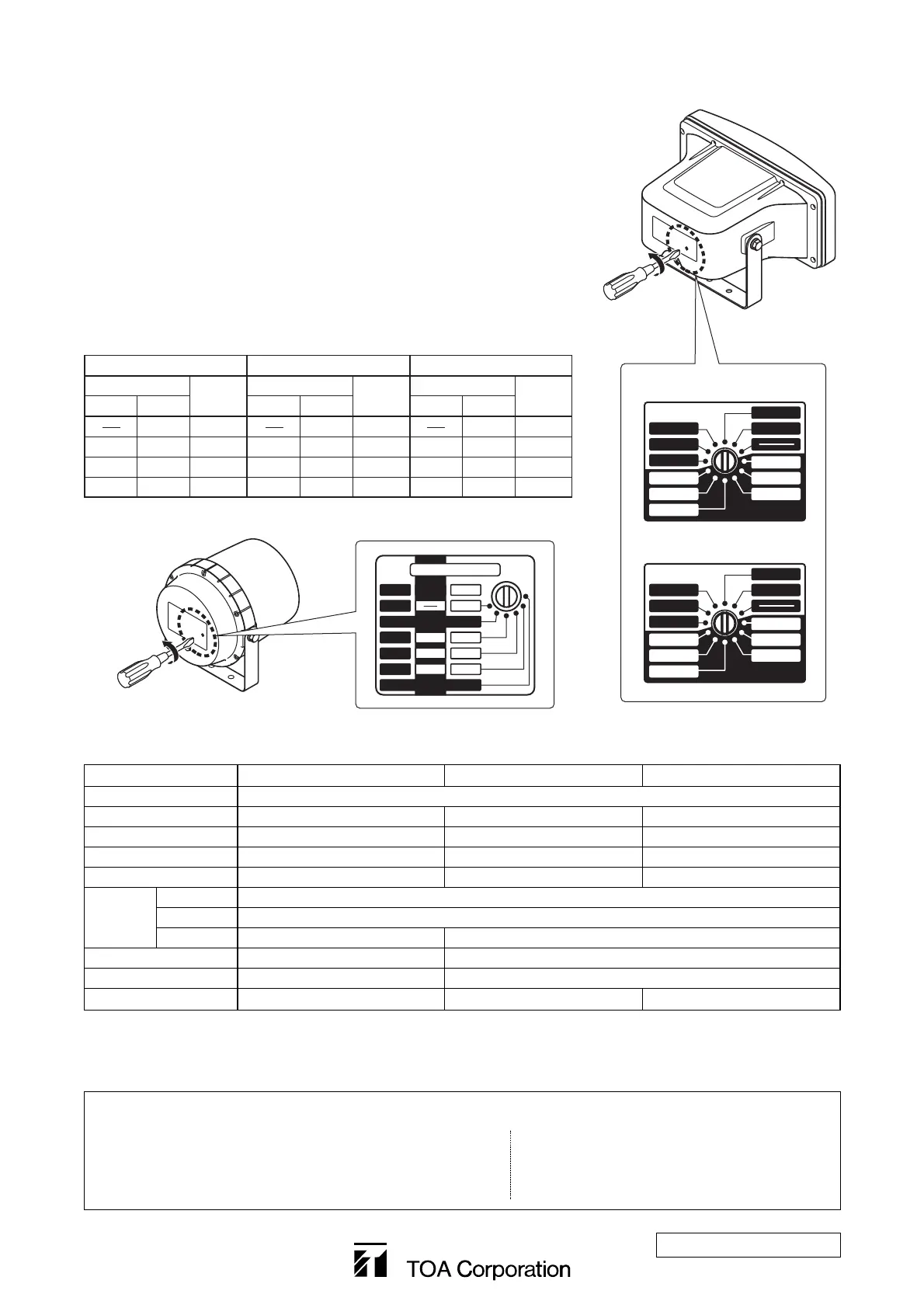

To change the impedance, change the rear panel-mounted rotary
switch position using a standard screwdriver.
Note: (1) These speakers are designed to be used in conjunction with
the 70/100 V line amplifier. They cannot be connected to the
amplifier's low impedance terminals. (2) No sound is output
when the switch is set to the OFF position.
Caution: Never set the switch to "
–
" position for 100V line
operation, as doing so may result in damage to the speaker.
5. SPECIFICATIONS
* Impedance in brackets is for 70 V line.
Note: The design and specifications are subject to change without notice for improvement.
Model CS-64 CS-154 CS-304
Speaker Unit 12 cm cone speaker
Rated Input 6 W 15 W 30 W
Impedance
(830 Ω)*, 1.7 kΩ, 3.3 kΩ, 10 kΩ (330 Ω)*, 670 Ω, 1 kΩ, 2 kΩ (170 Ω)*, 330 Ω, 500 Ω, 1 kΩ
Frequency Response
130 Hz – 13 kHz 150 Hz – 15 kHz 120 Hz – 15 kHz
Sound Pressure Level
96 dB (1 W, 1 m) 97 dB (1 W, 1 m) 98 dB (1 W, 1 m)
Finish Body ABS resin, off-white, paint
Bracket Stainless steel
Net
Zinc-coated steel, gray, paint
Aluminum, gray, paint
Dimensions
233 (w) x 224 (h) x 208 (d) mm
366 (w) x 230 (h) x 272 (d) mm
Diameter ø166 mm 357 (w) x 163 (h) mm
Weight 1.5 kg 2.8 kg 3.1 kg
Bold figures represent factory-preset values.
