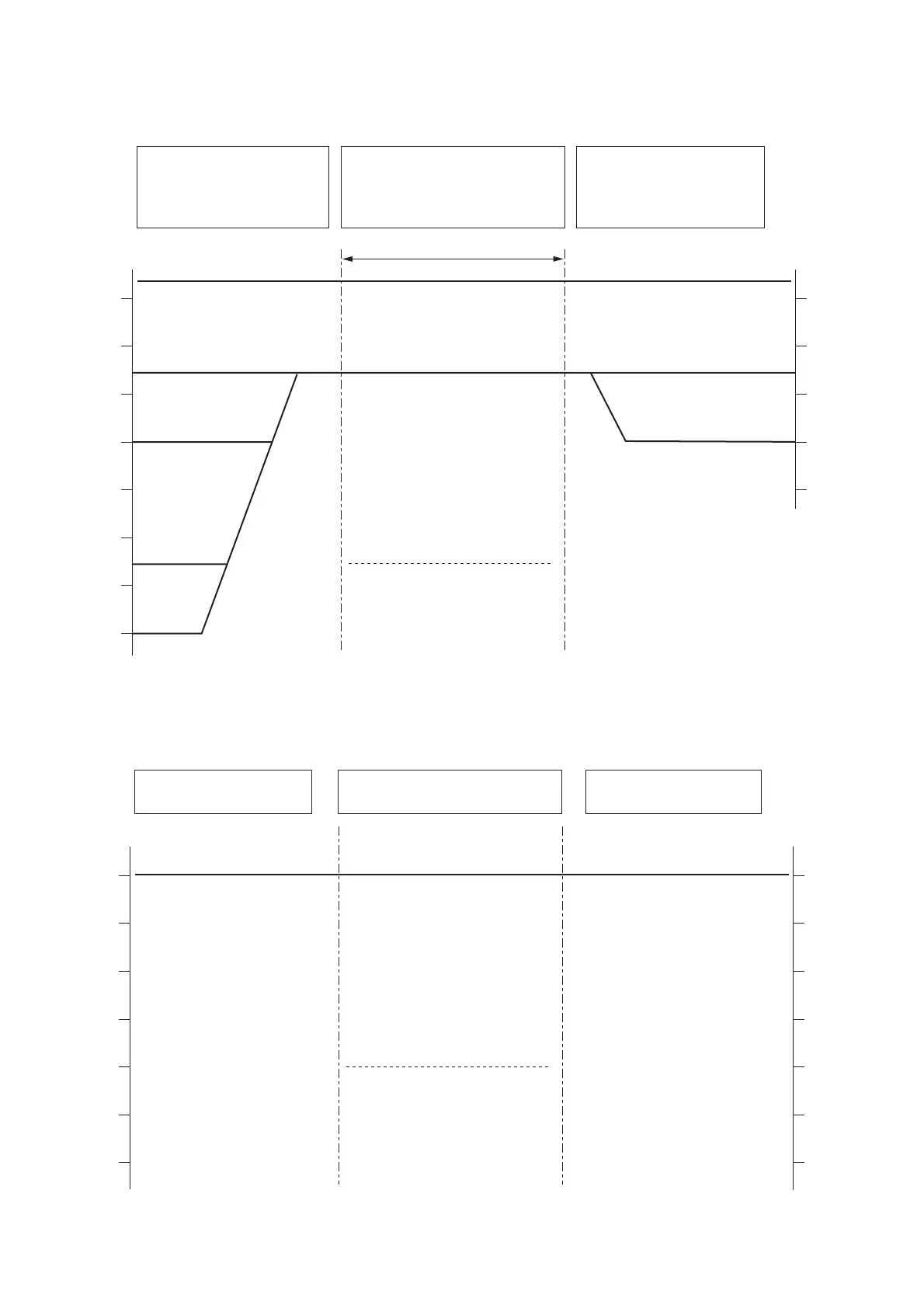

13. LEVEL DIAGRAMS
13.1. Analog Input/Output
Microphone/Line
Input Module
D-921F/921E/922F/922E
Stereo Input Module D-936R
DSP
Line Output Module
D-971M/971E/971R
dBu
+20
+10
0
- 10
- 20
- 30
- 40
- 50
dBu
+20
+10
0
- 10
- 20
LINE
(+4)
LINE
(
- 10)
MIC
(
- 36)
MIC
(
- 50)
(+4 dB)
(+24 dB)
SIG LED Turns ON
(
- 36 dB)
Max. Input (+24)
Digital
(+4) D-971M/971E
( - 10) D-971R
13.2. Digital Input/Output
Digital Input Module
D-923AE/937SP
DSP
Digital Output Module
D-972AE/961SP
dBFS
0
- 20
- 40
- 60
0
- 20
- 40
- 60
dBFS
(0 dB)
SIG LED Turns ON
(
- 40 dB)
Max. Input (0 dBFS)
