2. GENERAL DESCRIPTION
TOA's F-2000 Series Speakers are compact two-way speaker systems designed for high efficiency, wide
range, and high power input handling capability. These speaker systems can be installed in a manner ideal for
the location and intended application.
3. FEATURES
• 100º horizontal x 100º vertical wide directivity high-frequency horn.
• Coverage angle can be changed to 80º horizontal x 80º vertical by attaching the supplied horn adapter.
• Supplied bracket permits mounting to a wall, ceiling, or an optional speaker stand.
• Combined use of the supplied bracket and optional mounting bracket allows the speakers to be mounted in
many different applications, including pole mounting,*
1
clusters and horizontal ceiling mounting*
2
.
• Both the F-2000BTWP and F-2000WTWP feature a waterproof design (IPX4 standard) for protection from
any adverse effects of outdoor installations.
• A rear-mounted rotary switch allows for speaker impedance selection of low impedance or high
impedance*
3
.
*
1
Applies to the F-2000BTWP and F-2000WTWP.
*
2
Applies to the F-2000B, F-2000BT, F-2000W, and F-2000WT.
*
3
Applies to the F-2000BT and F-2000WT.

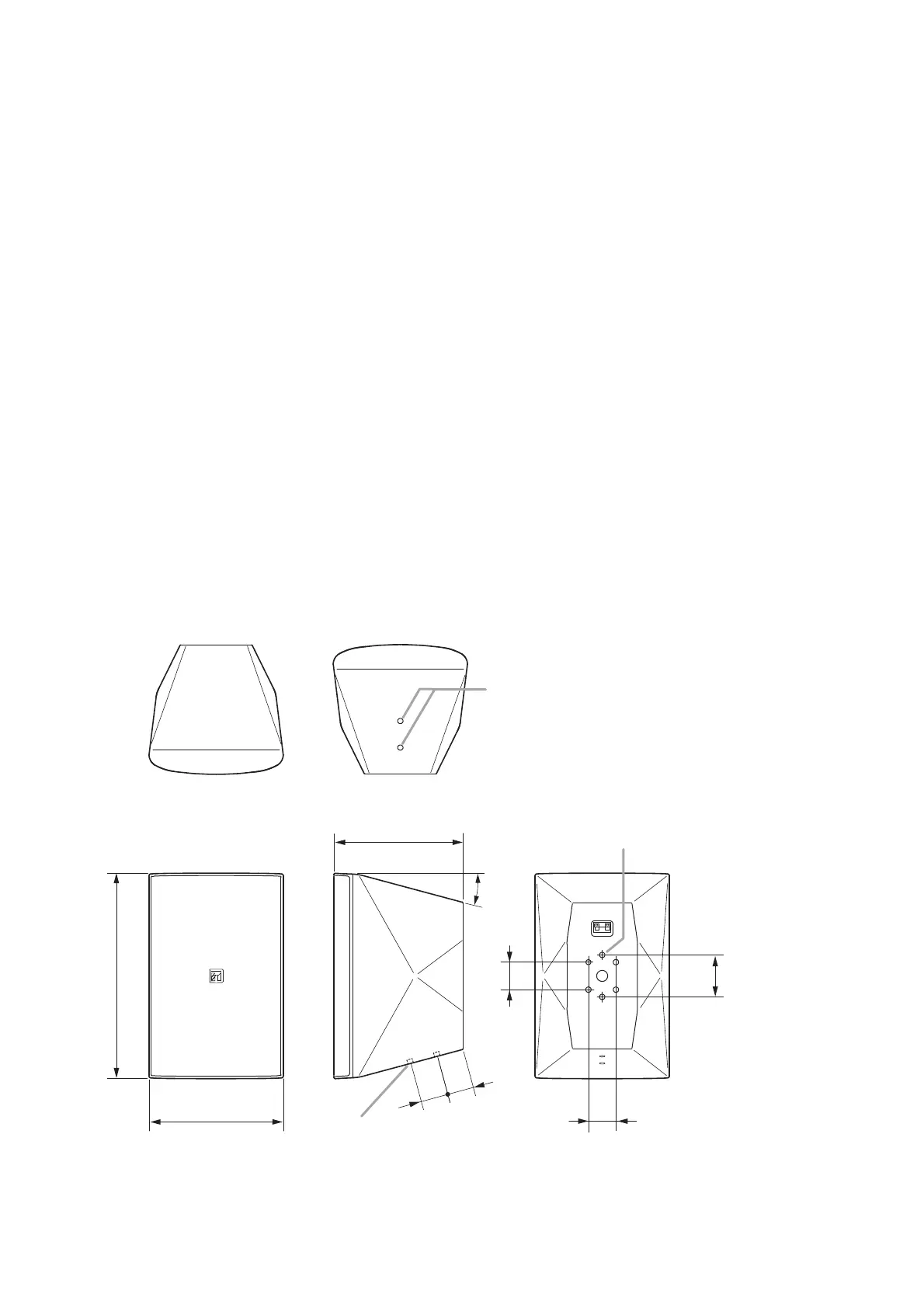

4. DIMENSIONAL DIAGRAM
Unit: mm
[Front]
[Top]
[Side] [Rear]
373
50
76.2
244
235
50
6-M5 mounting screw hole
(Effective screw depth: 14 mm)
2-M5 mounting screw hole
(Effective screw depth: 14 mm)
48
5
0
[Bottom]
15º
Mounting holes
Note
Hole seals are adhered over the holes at the factory.
Before attaching the speaker mounting bracket to this
side, remove them using a pointed tool.
