8.6. Pole Mounting (F-2000BTWP and F-2000WTWP only)
To mount the speaker on a pole with diameter of 9 – 34 cm, use the
supplied wall bracket, joint bracket, and speaker bracket in combination
with the optional SP-131 Pole Mount Bracket and YS-60B Pole Band.
Speaker coverage angles can be adjusted in the horizontal and vertical
direction*.
* Horizontal: Max. 90º, Vertical: Max. 45º downward
Note
Although the SP-131 comes in 2 sets of brackets, use one set only.

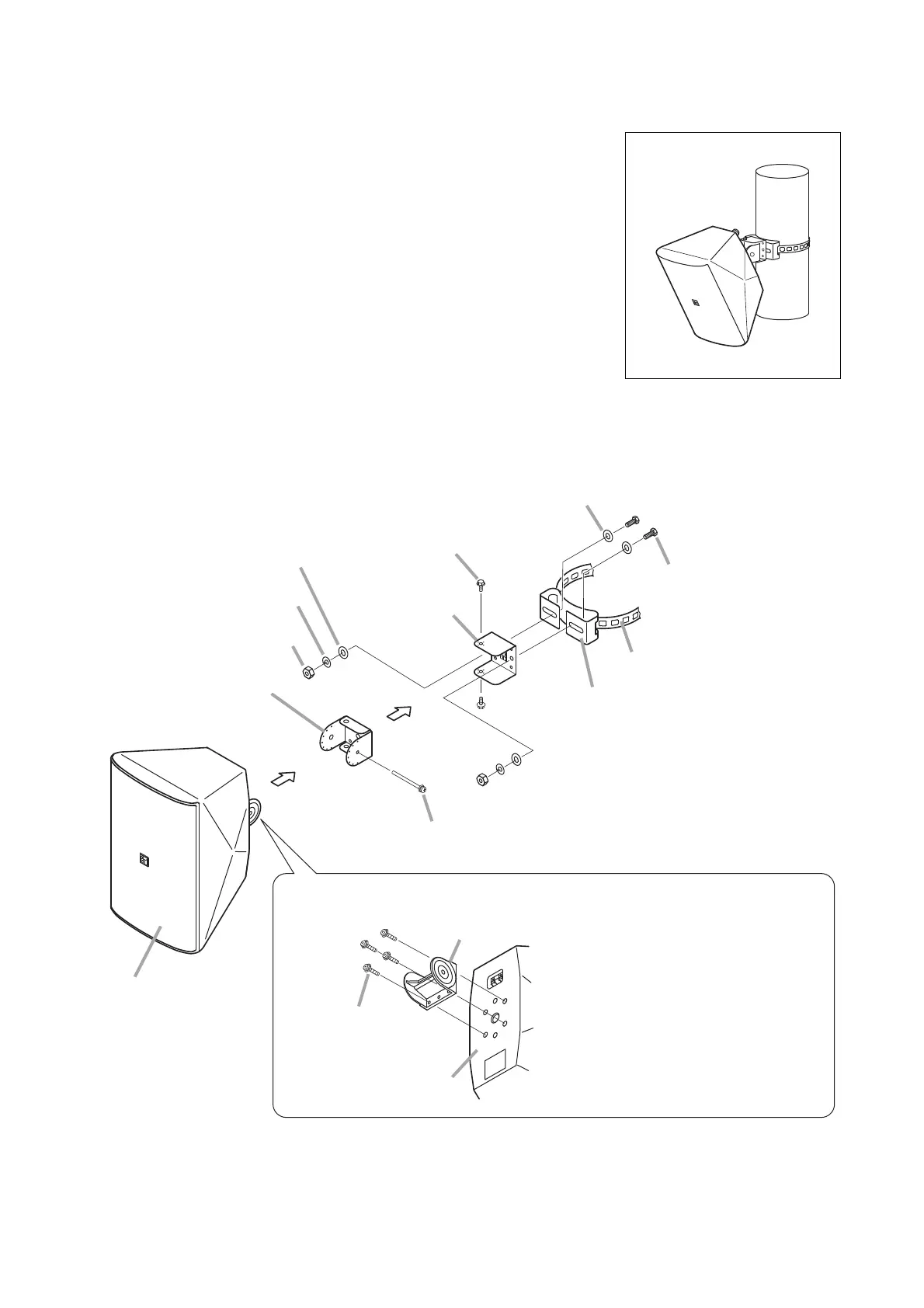

[Installation example]
Speaker unit
Speaker (rear)
Machine screw
M5 x 20 (with plain
washer and spring
washer)
Joint bracket
Hexagon bolt M8 x 20
(supplied with the SP-131)
Plain washer for M8
(supplied with the SP-131)
Spring washer for M8
(supplied with the SP-131)
Plain washer for M8
(supplied with the SP-131)
Nut for M8
(supplied with the SP-131)
YS-60B (option)
SP-131 (option)
Fixing bolt M6 x 85
Wall bracket
Speaker bracket
1
3
3
4
5
7
2
[Speaker bracket mounting position]
Hexagon bolt M6 x 12
(with plain washer
and spring washer)
Note
Set the speaker in a vertical orientation,
then attach the bracket so that the rear-
mounted terminal cover is positioned
above the mount.
