5. INPUT CONNECTORS
• The NEUTRIK Speakon connectors are internally connected in parallel to the screw terminals; you can use either one.
• The right table shows the pin arrangement of the Speakon NL4MP connector.
• The usable connector (on the cable end) for the Speakon NL4MP IS Speakon NL4FC.
• Wiring diagram of the input connectors is shown at right.
Pin No. FB-120B, FB-120W
1 + Speaker +
1 – Speaker –
2 + –
2 – –
Screw terminal 2P
Speakon NL4MP x 2
1+
2+
1–
2–
1+
2+
1–
2–
Speaker +
Speaker –
+ –
2. GENERAL DESCRIPTION
TOA's FB-120B/W is a compact, indoor-use subwoofer system employing a high-power 30 cm (12") woofer.
It is designed for use in conjunction with TOA's HX-5 series or other full range speakers, and is particularly ideal for
reproducing dynamic low-frequency sound for both permanent and temporary installations.
3. FEATURES
• Equipped with a convenient carrying handle.
• Suspended by wire or chain.

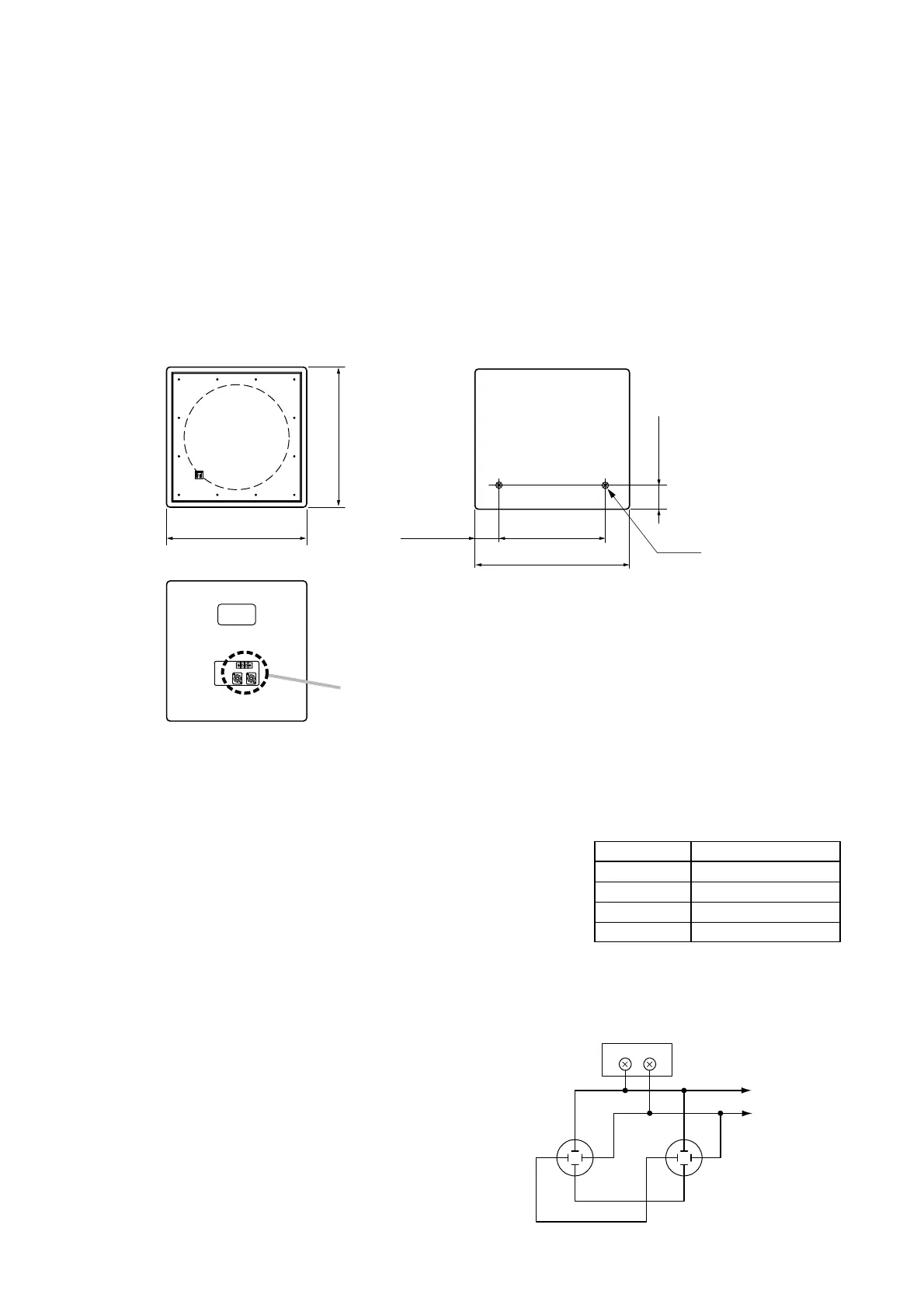

4. DIMENSIONAL DIAGRAM
* When suspending the speaker, remove the 4 screws on
both sides and install eyebolts instead.
(refer to "6.2. Suspended Installation.")
[Front] [Side]
[Rear]
408 (16 1/16)
310 (12
13/64)
4-M8*
450 (17
23/32)
70 (2
3/4)
70 (2 3/4)
408 (16
1/16)
Unit: mm (inches)
Input connectors
