7. SPECIFICATIONS
ModelNo. HY-PF7B HY-PF7W
Finish Steel plate, black, semi-gloss, paint Steel plate, white, semi-gloss, paint
Dimensions 645(w)x50(h)x472(d)mm(25.39"x1.97"x18.58")(excludingprojection)
Weight 4kg(8.82lb)
Accessory Subwooferxingbracket...4,HexheadboltM8x40withwasher...8,NutforM8...4,
PlainwasherforM8...4
Note: Thedesignandspecicationsaresubjecttochangewithoutnoticeforimprovement.

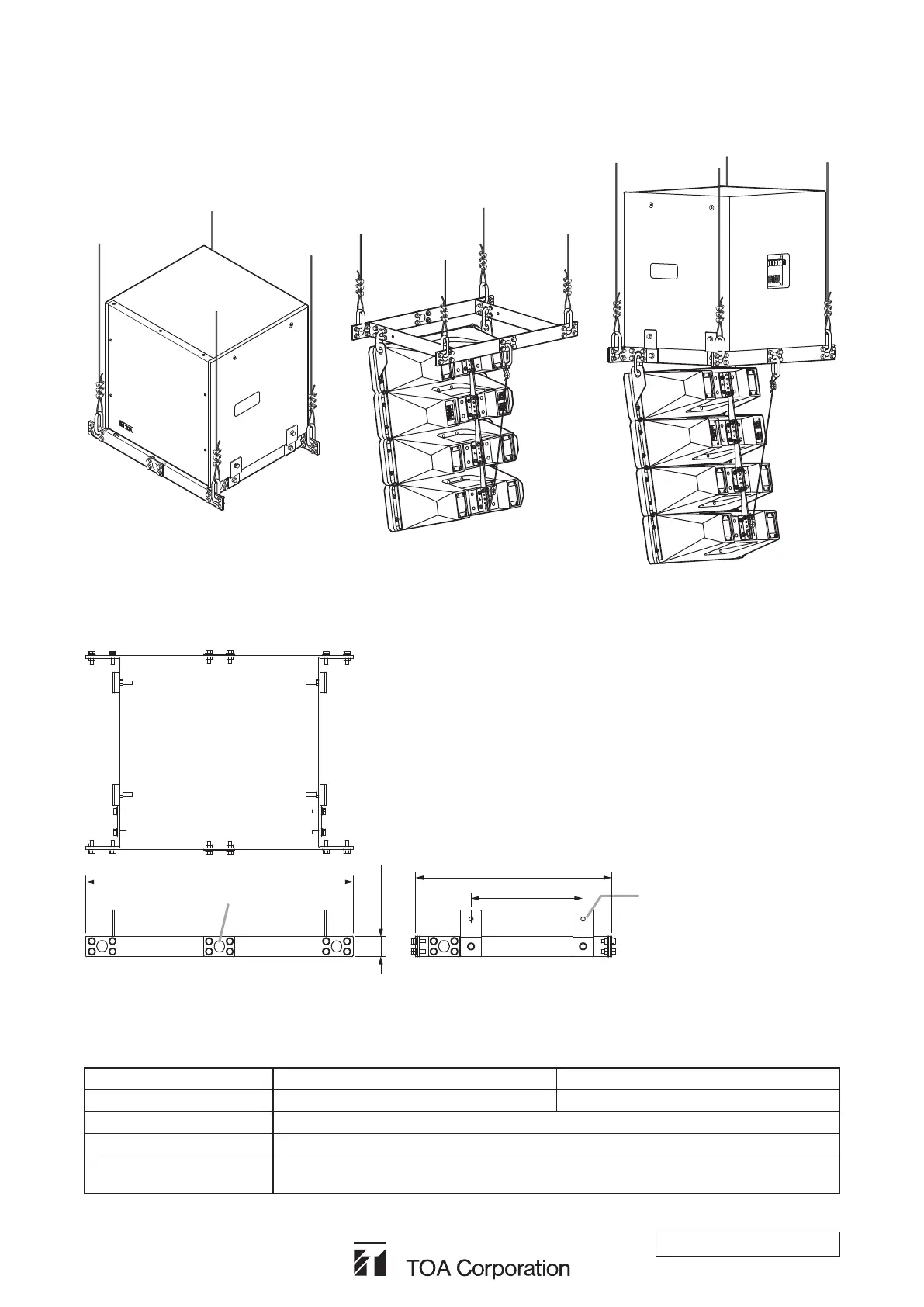

5. SUSPENSION EXAMPLES
[When suspending only Subwoofer
system]
[When suspending only Speaker
system]
[When suspending Subwoofer
and Speaker systems]
6. DIMENSIONAL DIAGRAM
Subwoofer fixing bracket
(accessory)
645 (25.39")
472 (18.58")
270 (10.63")
50 (1.97")
Suspension hole 27 x 25 (1.06" x 0.98")
(8 positions)
Unit:mm
Note
Theholestouseforsuspensiondifferdependingonthewayofspeaker
suspension.
