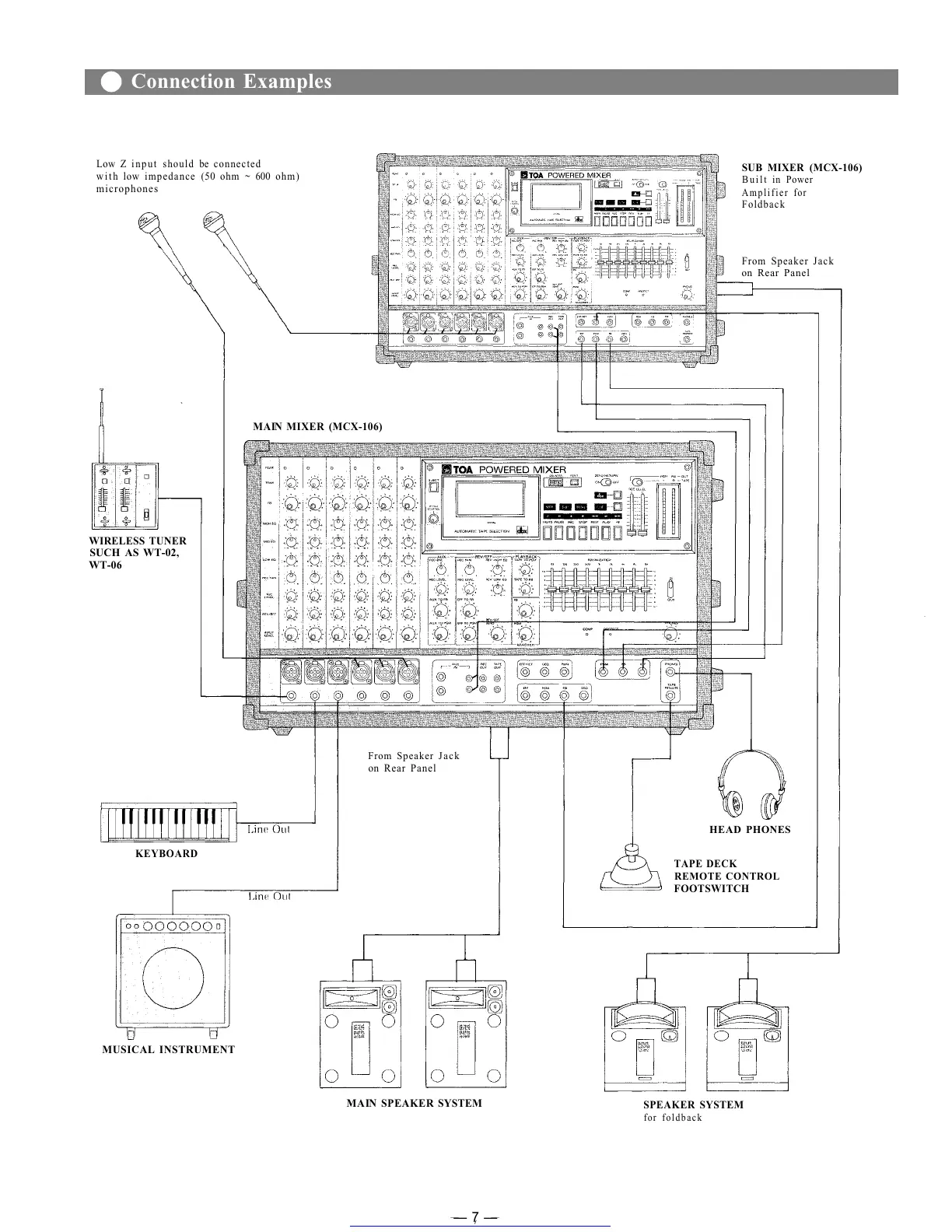

Toa MCX-106 - Connection Examples

Low Z input should be connected
with low impedance (50 ohm ~ 600 ohm)
microphones
SUB MIXER (MCX-106)
Built in Power
Amplifier for
Foldback
From Speaker Jack
on Rear Panel
MAIN MIXER (MCX-106)
WIRELESS TUNER
SUCH AS WT-02,
WT-06
From Speaker Jack
on Rear Panel
KEYBOARD
TAPE DECK
REMOTE CONTROL
FOOTSWITCH
HEAD PHONES
SPEAKER SYSTEM
for foldback
MAIN SPEAKER SYSTEM
MUSICAL INSTRUMENT
_ _
Connection Examples
— 7 —
