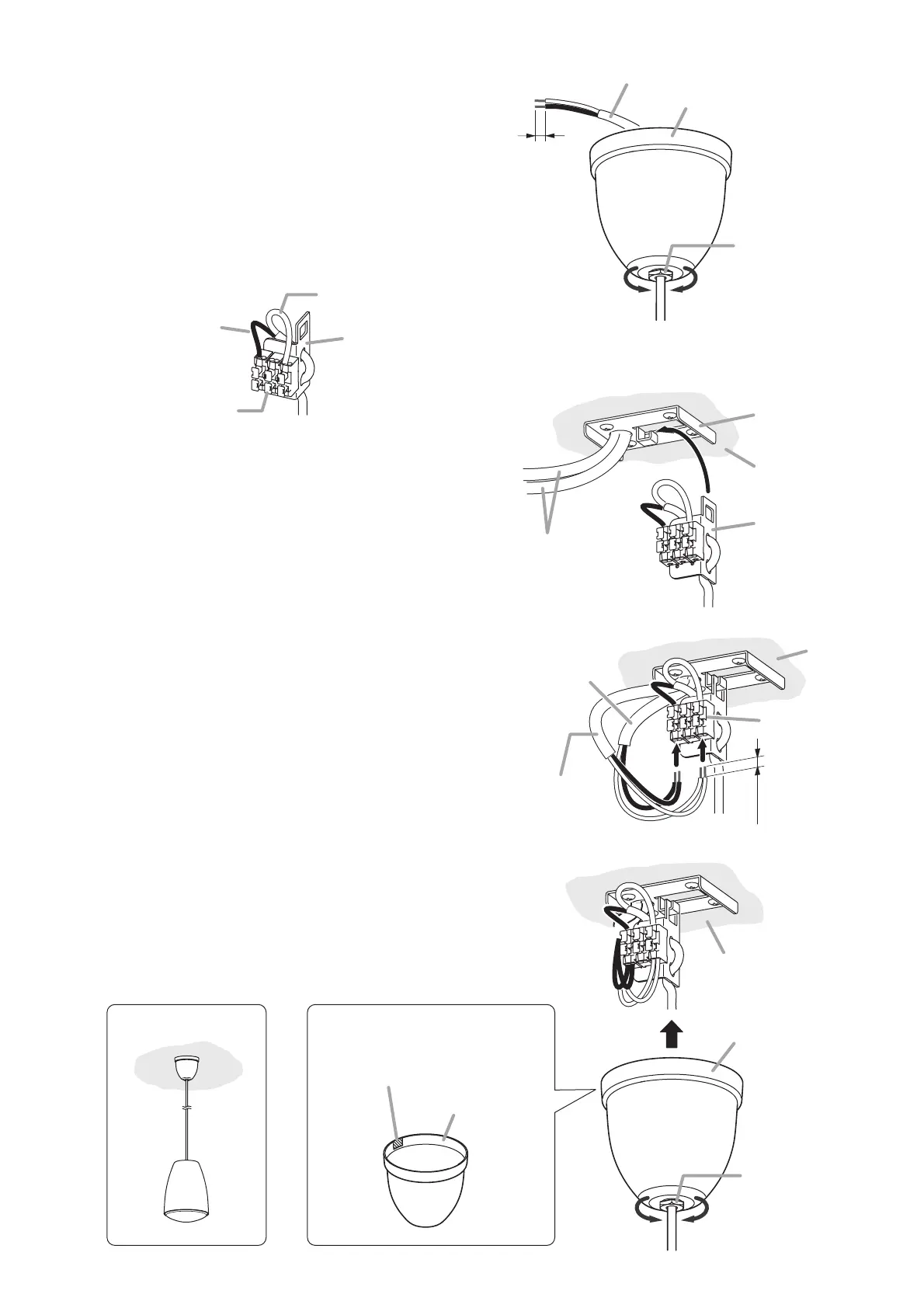

Step 2. Pass the speaker cord through the supplied ceiling
cover, and cut the cord to the desired length.
Note: Strip the end of speaker cord as illustrated.
Step 3. Run the speaker's cable through the cable holes in the
mounting hanger, then connect it to the input
connector.
Step 4. Put the mounting hanger onto the ceiling bracket's
hook.
Step 5. Connect both the lead-in and lead-out cables to the
input connector.
[Applicable cable]
• Solid wire: ø0.8 – ø1.6 mm
(equivalent to AWG 20 – 14)
• Stranded wire (7-core): 0.75 – 1.25 mm
2
(equivalent to AWG 18 – 16)
Step 6. Push the ceiling cover, slipped over the cord in Step 2,
onto the ceiling surface, then tighten the cover-retaining
nut using a 17 mm (0.67") hex wrench.
In the case of exposed wiring, notch the cable entry tab
on the rim of the cover, then make connections.
Ceiling cover (accessory)
Cover-retaining nut
TightensLoosens
9 mm
(0.35")
Speaker cord 5 m (16.4 ft)
Mounting hanger
(accessory)
Input connector
HOT (black)
COM (white)
Ceiling bracket
(accessory)
Mounting hanger
(accessory)
Ceiling
Lead-in and
lead-out cables
To the next
speaker
Input connector
From the
amplifier
Ceiling
9 mm (0.35”)
Ceiling cover
Notch this thin tab.
(another tab is on the opposite side.)
In the case of exposed wiringInstallation view
Ceiling
Ceiling cover
Cover-retaining nut
TightensLoosens
