Toa WT-4800 - 8 Connection Examples

10

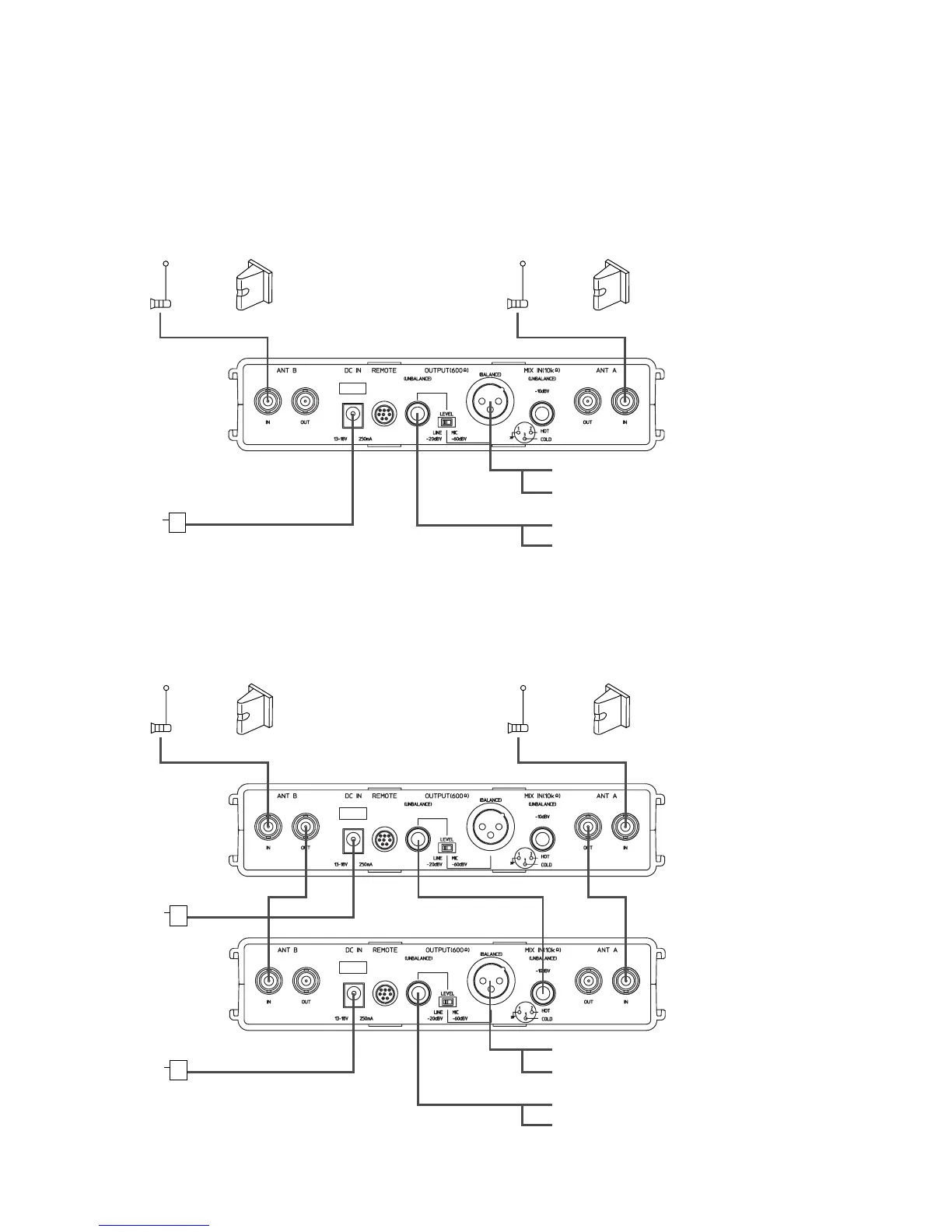

8. CONNECTION EXAMPLES
Be sure to connect at least two receiving antennas (one each for Channels A and B).
[Example 1.]
[Example 2.]
Accessory
or
Wall-mounted wireless antenna
YW-4500 (optional)
Accessory
AC – DC adapter
or
Wall-mounted wireless antenna
YW-4500 (optional)
WT-4800
LINE (LEVEL): To amplifier line input
MIC (LEVEL): To amplifier microphone input
LINE (LEVEL): To amplifier line input
MIC (LEVEL): To amplifier microphone input
Balanced
Unbalanced
Accessory
or
Wall-mounted wireless antenna
YW-4500 (optional)
Accessory
or
Wall-mounted wireless antenna
YW-4500 (optional)
1st WT-4800 unit
2nd WT-4800 unit
AC – DC adapter
AC – DC adapter
LINE (LEVEL): To amplifier line input
MIC (LEVEL): To amplifier microphone input
LINE (LEVEL): To amplifier line input
MIC (LEVEL): To amplifier microphone input
Balanced
Unbalanced
