TOHO TTM-204 Series User Manual

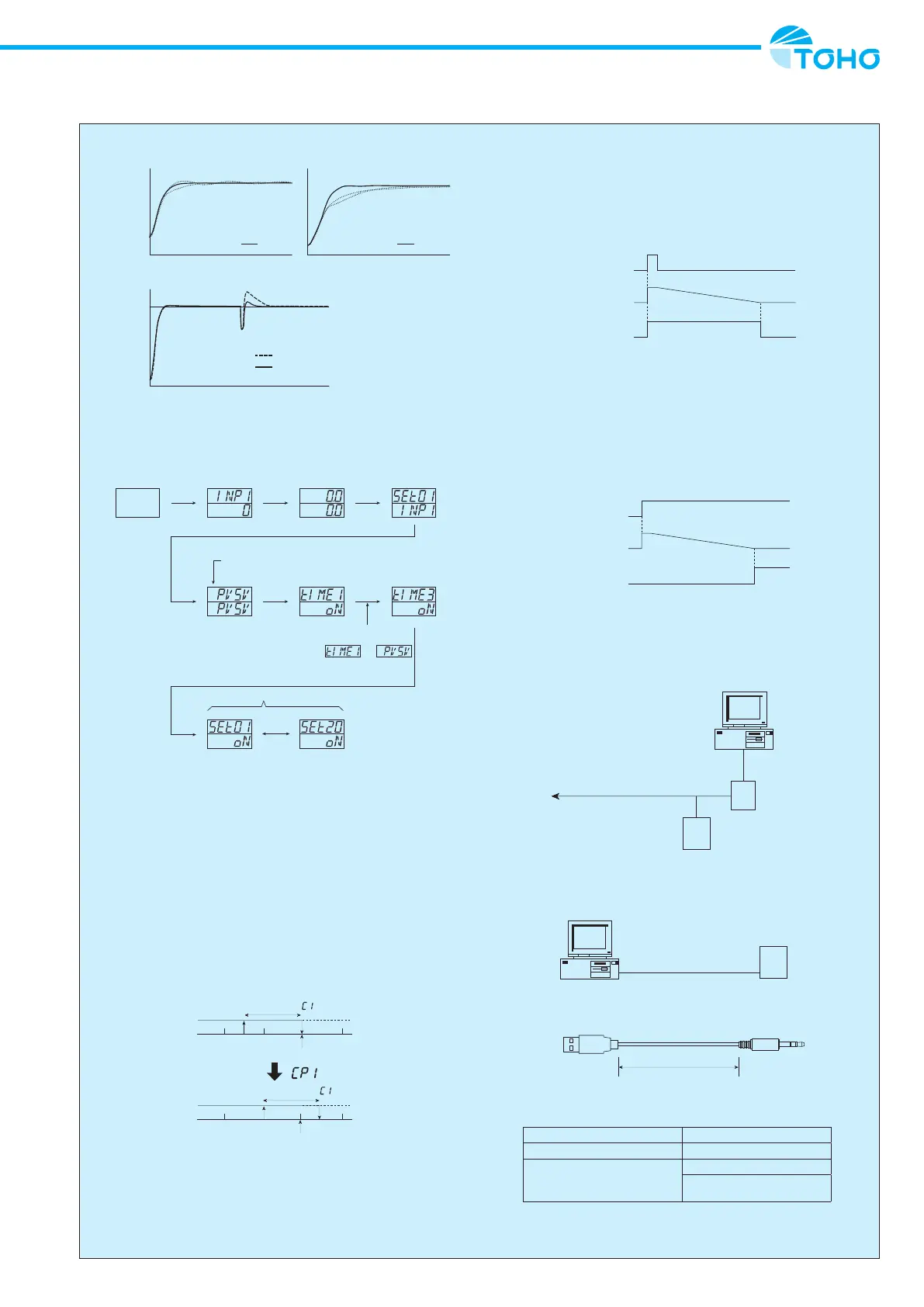

■Advanced Features
●PID control by new algorithm
100℃ 200℃
0
1000
2000
3000
4000
Time(sec)
Temp.（0.1℃/dig）
0 100 200 300 400 500 600
NEWPIDTYPEB
NEWPIDTYPEC
NEWPIDNEWPID
Disturbance
●BLIND Function Setting
ShiftbyMODEkey
Shiftby△▽key
PressMODEkey
for10seconds
PowerON
InitialDisplay
4seconds
OperationMode
MODEkey
☆1 ☆1 ☆1
Afterthe"Blink",pressFUNCkey,andpressMODEkey
PV/SVblindsettingdisplay
SettingbyFUNCkey.
Itisblinded,ifredcharactersofPV&SVinthebelowdisplayarenotshown.
BypressingModekeyeverytime,
thenfrom
willbeshownsequentially.
to
★★
★★
(Someitemsarenotdisplayedasparameters)
IntoeachSET
PressMODEkeyfor3secondswhen☆1display
Content of the above ★
1) In BLIND MODE, either 「ON」 & 「OFF] is displayed on under each characters (SV display).
「ON」 is displayed. 「OFF」 is not displayed (BLIND).
2) To change characters in BLIND MODE by pressing 「FUNC」 key.
3) Power OFF for end of BLIND setting mode.
It is possible not to make the optional picture indicate by the key operation
In addition, please note that only measured value is displayed without displaying a
setting value in the case of the usual display when the SV setup screen is turned o󱐯.
●OFF point position movement of ON/OFF control
When the OFF point position movement is set to 0, the OFF point is the set value position.
＝5
SV-20 SV-10 SV+10
Presetvalue(SV)
Controltemperature（=15）
Controltemperature（=15）
ON
OFF
SV-20 SV-10 SV+10
Presetvalue(SV)
ON
OFF
This is when o󱐯 point position movement is set up with (+5).
Actually specication, there is no description change as above, but move above equal to
(+5) as a position of ON/OFF.
Case it made move on negative side, the OFF point moves to opposite side to description
above.
●Timer function
1. In the case of bread baking oven
●Put dough in the oven, and push the start key to the timer.
●The temperature is controlled by the heater and so on for the timer setup time.
●After timer count end control is stopped automatically
(It is used when making control STOP after the timer count ends.)
Startkey
Timeroperation
Controloutput
Setuptime
Time-up
2. In case of packing machine and industrial machine, which control is started after the
completing the preparation of the peripheral device
●The count of the timer begins from point that turns on the power supply.
●The control output stops during timer setting time
●The control starts automatically after the timer count ends.
(It is used when making control starts after the timer count ends.)
Powersupply
Timeroperation
Controloutput
Setuptime
Time-up
●Communication function
◦A connection example with the personal computer
Centralized supervision with the personal computer is possible with the connection like
the chart below.
TTM-200
RS-485
Converter
RS-232C
Hostcomputer
◦Loader communication
TTM-200
Hostcomputer
Anexclusivecable(Onerous)
※Loader cable specification
[Appearance and structure]
USBconnector Stereoplug
(Hostside) (TTM-200side)
1800mm
[Standard and performance]
USB I/F standard USB Specication 2.0 Conforming
DTE (Personal computer side) speed Up to 38400bps
Connector specication Personal computer side: USB
Temperature Controller side：
φ2.5mm Stereo plug
［Model］
TTM-LOADER
