TOKYO INTERPHONE WFA-200 - Front Panel Overview; Rear Panel Overview; Technical Specifications

AC IN
AC OUTOK/NG OUT
RS-232C
EXT.OU
T
FUSE
VOLTIMEDISPLANUSBSTART
Specifications

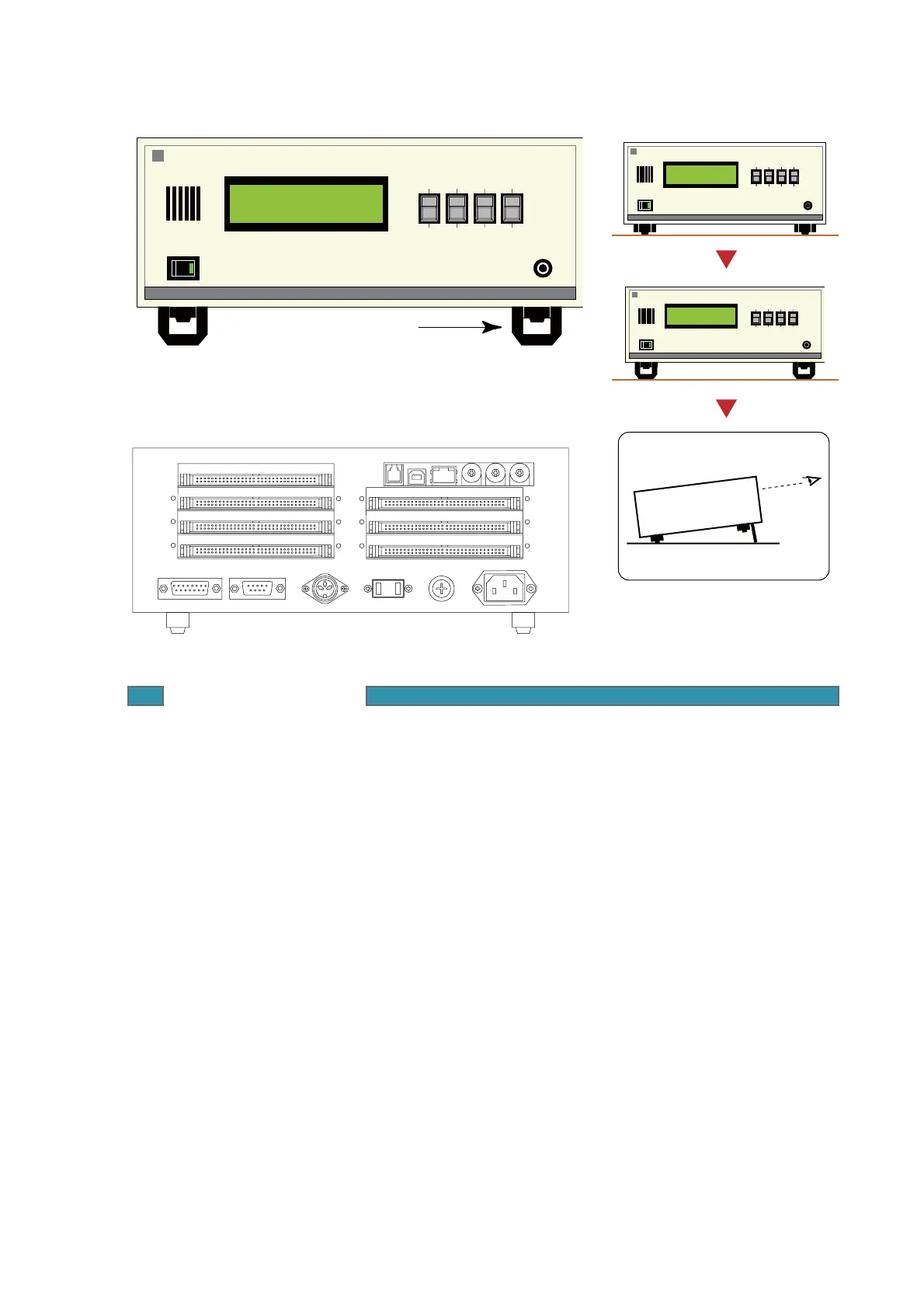

Rear panel
Front panel
Stand foot
1) Q'ty of test point
2) Test sensitivity
3) Starting test mode
4) External output
5) Diode circuit
6) OK sound
7) OK / NG count
8) Step test
9) Capacity between wires
10) Display
11) Saving q'ty of connection data
12) PC interface
13)
Connector for the test object
14) Power source
15) Dimensions and weight
: 64 ~ 384 points
: More than 200 ohms for Open, Less than 60K ohms for Short,
and 100 μsec at 128 points for instantaneous Open
: Auto / Manual start
: OK / NG signal output -- on contact point signal (
0.5 / 1 / 5 / 10
sec) - Open collector
: Two-way electricity test
: Select from four kinds of sounds
: Indicates up to 9999 counts for both OK and NG.
( Indication
of NG counts are only for the Manual start.)
: Possible to setup 10 steps.
: 0.2 μF
: 16 digits, 2 lines LCD display
: 20 data
: USB
: 64-pin flat cable with connector:
: AC 85V ~ 264V
: 290(W) x 130 (H) x 250 (D) mm, 6 Kgs.
SEARCHPOWER
TOKYO INTERPHONE
Wireharness Checker
WFA-200
SEARCH OLB STOP SKIP
CANCEL START NEXT SET
WIRE HARNESS CHECKER
WFA - 200
SEARCHPOWER
TOKYO INTERPHONE
Wireharness Checker
WFA-200
SEARCH OLB STOP SKIP
CANCEL START NEXT SET
WIRE HARNESS CHECKER
WFA - 200
Using stand foot
SEARCHPOWER
TOKYO INTERPHONE
Wireharness Checker
WFA-200
SEARCH OLB STOP SKIP
CANCEL START NEXT SET
WIRE HARNESS CHECKER
WFA-200
