4

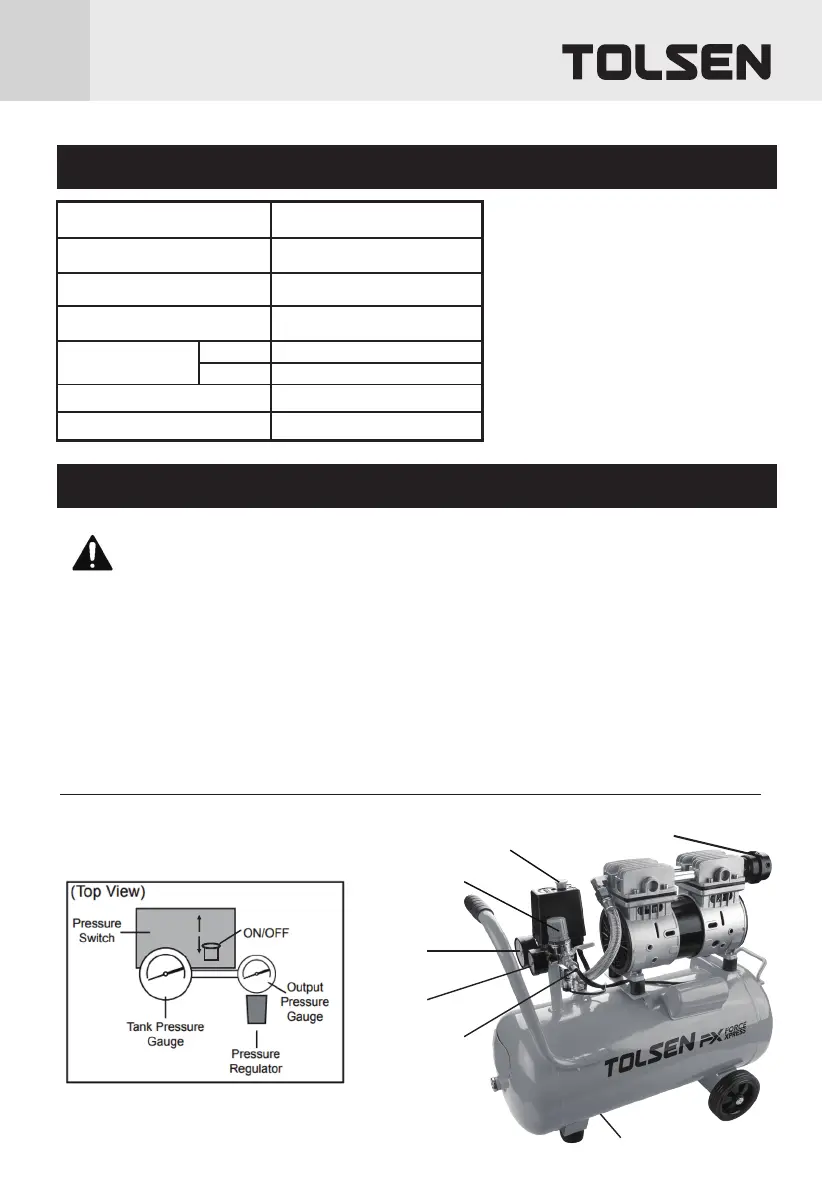

Compressor use and care
Functions
ON
OFF
Drain valve
Pressure switch
Regulator knob
Tank guage
Outlet guage
Air outlet
SPECIFICATIONS & SETUP
SPECIFICATIONS
INSTRUCTIONS FOR PUTTING INTO USE
1/4"
Air Outlet Size
Air Tank Capacity
Sound Level
Shut-off
Restart
8bar (116psi)
6bar (87psi)
60dB
Air Flow Capacity
Air Pressure
77L/min
Read the entire important safety information section at the beginning of this manual including all text
under subheadings therein before set up or use of this product.
Warning! To prevent serious injury from accidental operation:
turn the power switch “off” and unplug the air compressor from its electrical outlet before assembling or making
any adjustments to the compressor.
Note: for additional information regarding the parts listed in the following pages, refer to the assembly diagram
near the end of this manual.
24L
Electrical Rating 220-240v/50Hz
Rated Power
1HP/800W
Air filter
