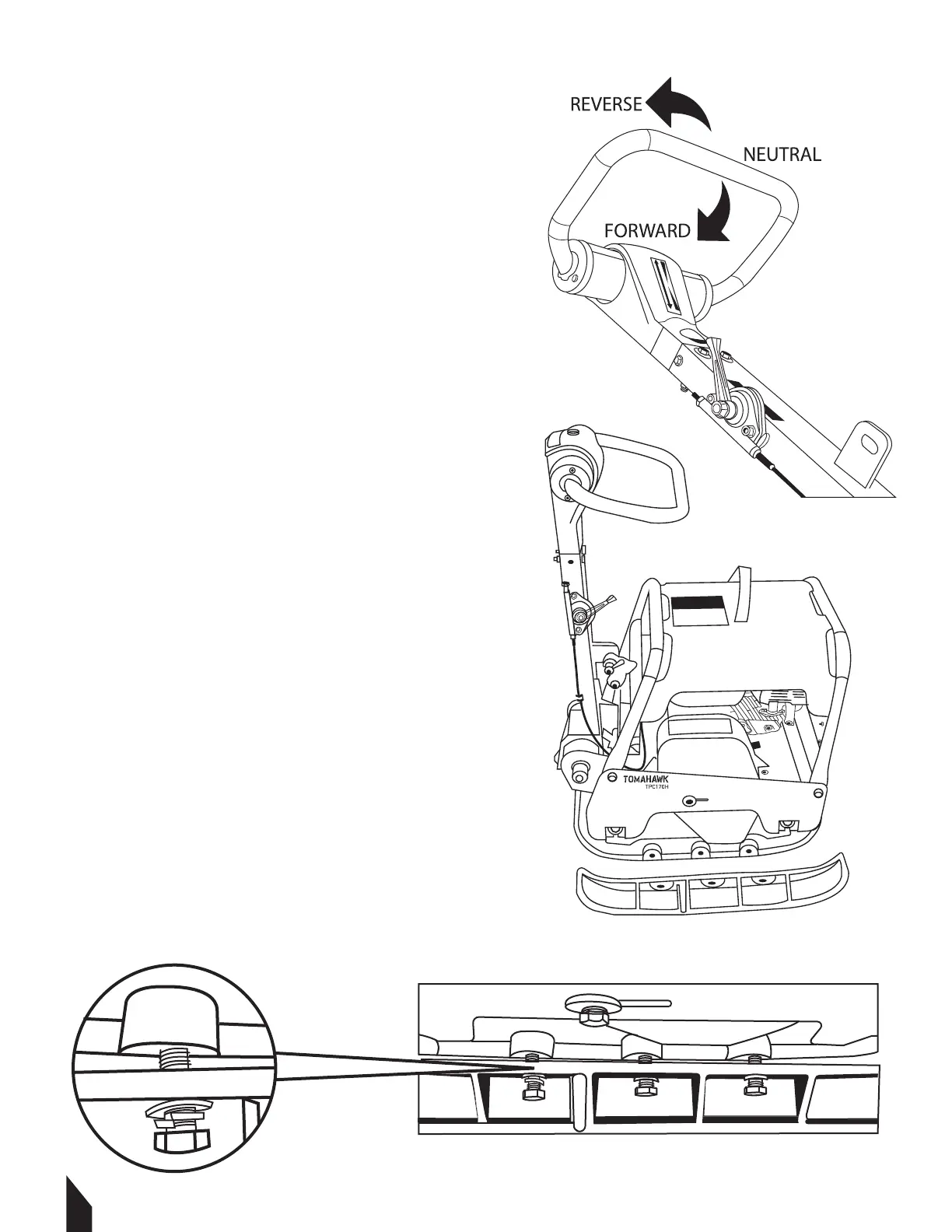

2.4 Understanding The Control Lever
The direction control handles allows the
machine to be moved either backward or
forward. When the direction control lever is
pushed forward, the machine moves forward.
When pulled backward,
the machine moves backward.
2.5 Connecting the Extension Plates
The extension plates add an additional 2” on
either side of the plate, extending the working
width of the compactor.
Installing the Extension Plates
A)Start by aligning the extension plates next to
the compactor.
B) Place the split lock washer and washer
around the bolt.
C) To fasten the bolts, use a 22mm torque
wrench and set to 136/lbs. (185Nm).
D) We recommend using Loctite if you intend to
leave the extension plates on the reverse plate
compactor.
