TC-CRZ-OP-EN - 11 -

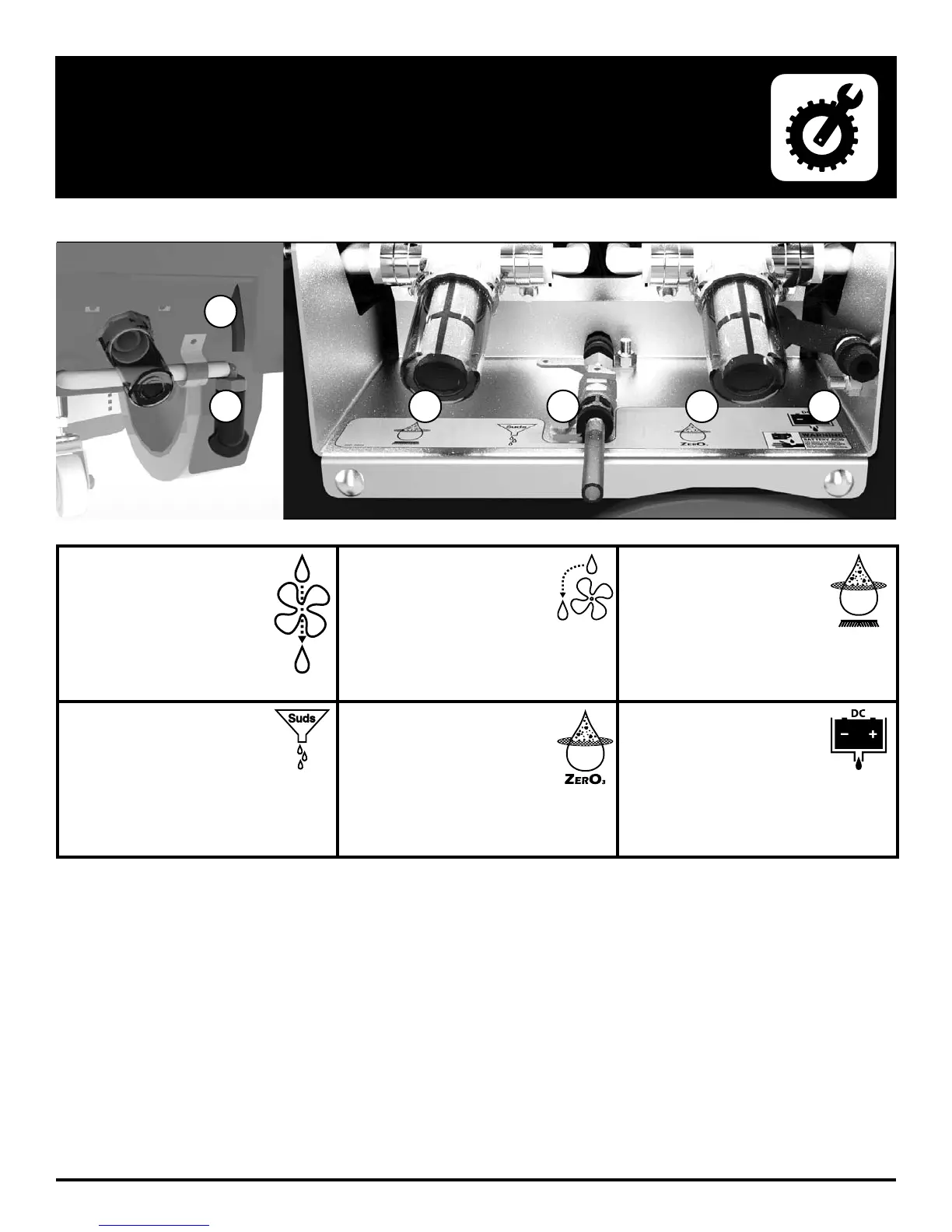

SERVICE CABINET

19 20 21 22

18. VACUUM

DISCHARGE:

Water passed through the

Vacuum Motor will be visible

in the reservoir and excess

will ﬂ ow from the blue hose.

Indicates service required.

19. VAC BOX UNLOADER:

Unloader valve for the Yellow

Vac Box. Water present in the

Yellow Vac Box will drain when

vacuum is off.

20. SOLUTION FILTER:

Standard Solution Feed Filter

for scrubdeck.

21. SUDS DRAIN:

Drain detergent from Suds

reservoir.

22. ZERO3 FILTER:

Optional ZERO3 (O3+) Ozone

System Solution Filter.

23. BATTERY DRAIN:

Drain any ﬂ uid from Poly

Battery Box.
