Line Out
Line OutLine Out
Line Out

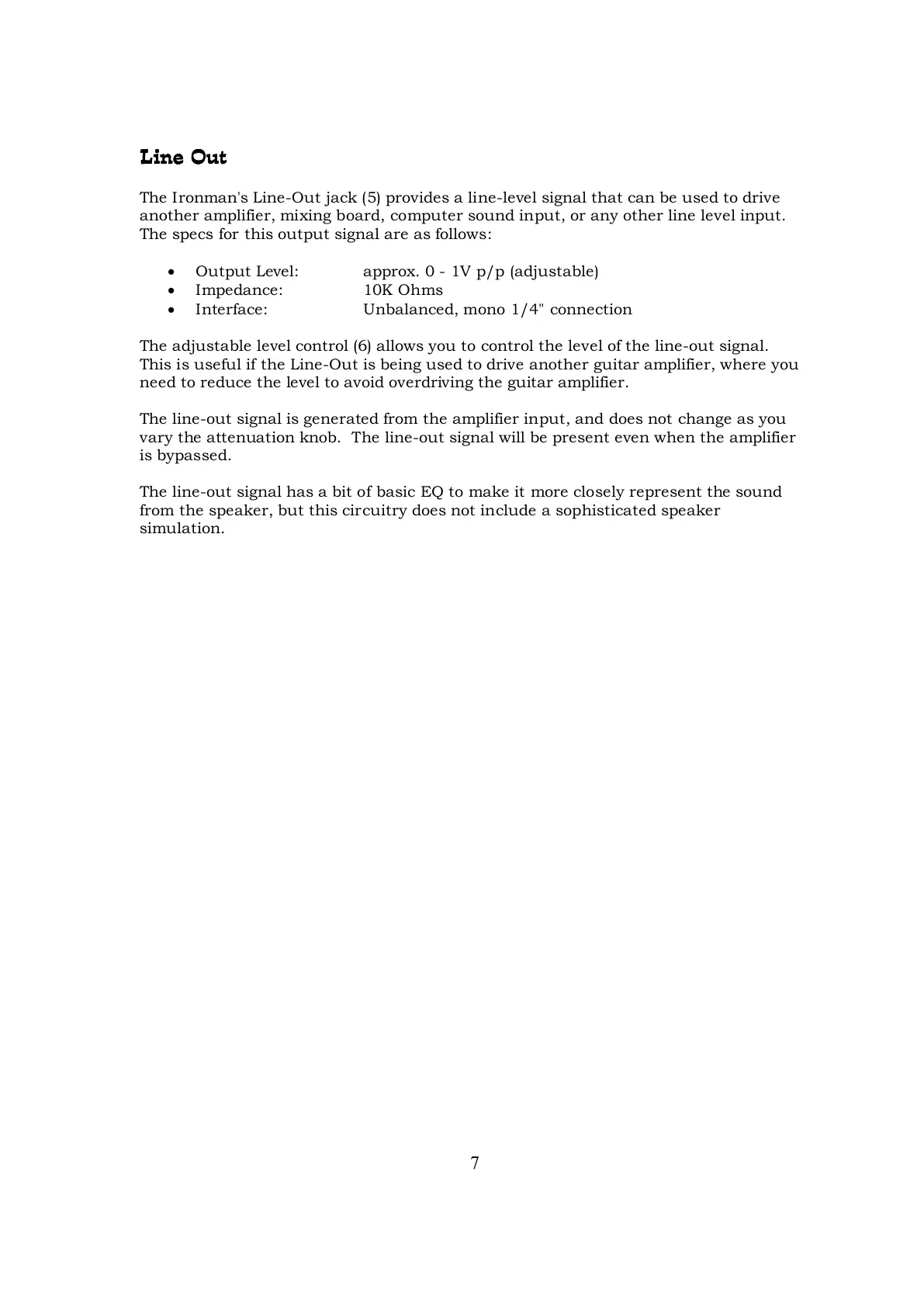

The Ironman's Line-Out jack (5) provides a line-level signal that can be used to drive
another amplifier, mixing board, computer sound input, or any other line level input.
The specs for this output signal are as follows:
• Output Level: approx. 0 - 1V p/p (adjustable)
• Impedance: 10K Ohms
• Interface: Unbalanced, mono 1/4" connection
The adjustable level control (6) allows you to control the level of the line-out signal.
This is useful if the Line-Out is being used to drive another guitar amplifier, where you
need to reduce the level to avoid overdriving the guitar amplifier.
The line-out signal is generated from the amplifier input, and does not change as you
vary the attenuation knob. The line-out signal will be present even when the amplifier
is bypassed.
The line-out signal has a bit of basic EQ to make it more closely represent the sound
from the speaker, but this circuitry does not include a sophisticated speaker
simulation.
